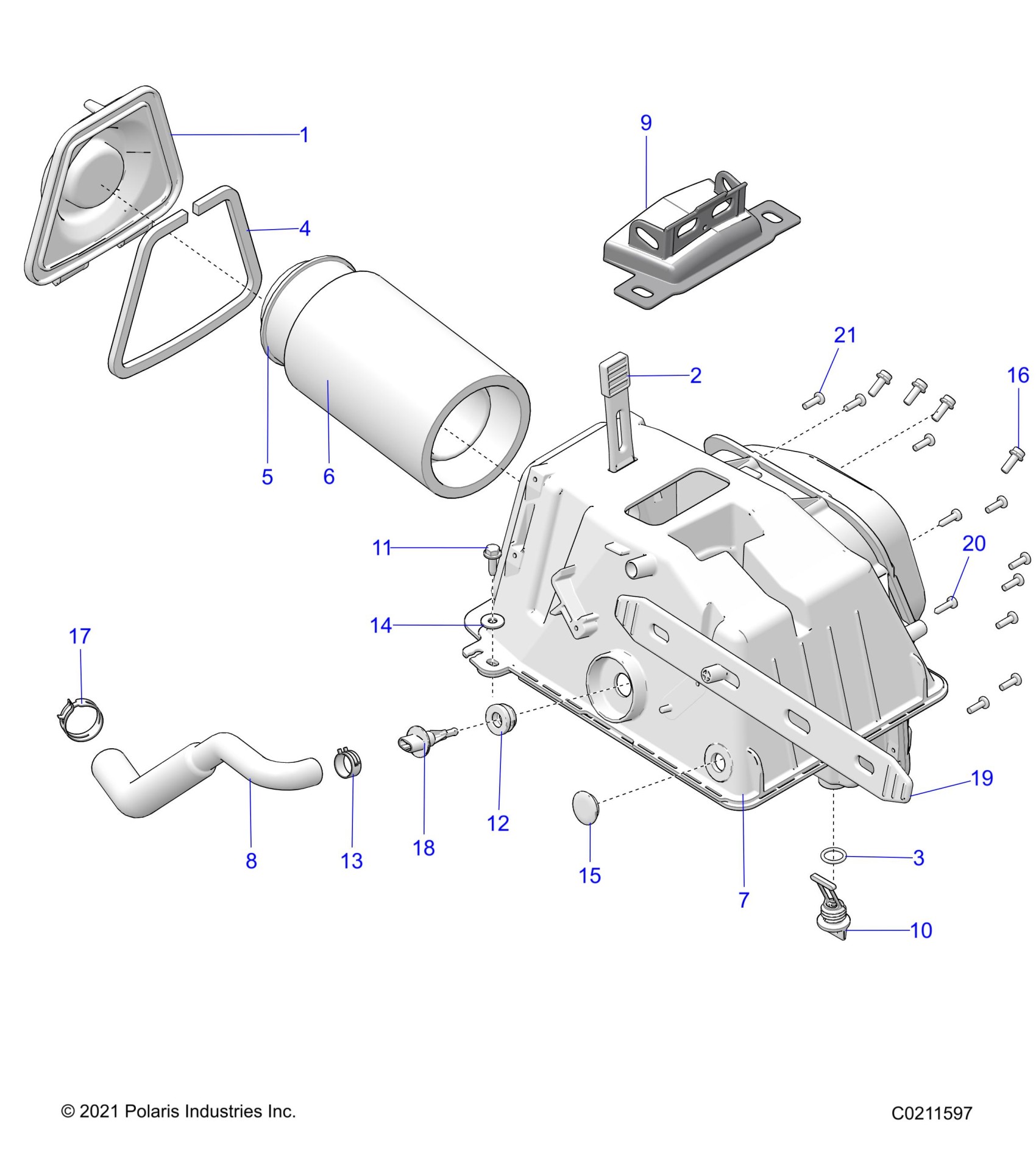

Polaris SPORTSMAN XP 1000 48" TRAIL PACKAGE (R01) - A23SXZ95AK ENGINE, AIR INTAKE - A23SXZ95AK (C0211597) Diagram

#

Description
Price

1

COVER, AIRBOX

5438983

$39.99

2

STRAP-AIRBOX TOP

5433150

$24.27

3

O-RING

5414246

$1.59

4

SEAL, AIRBOX COVER

5813359

$6.79

5

FILTER, AIR INTAKE

7082101

Unavailable

5

FILTER-HD AIR INTAKE, 208MM HD OPTION

7083114

$47.99

6

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

7

ASM., AIR INTAKE, BOX W/RUNNERS

1240825

$167.99

8

HOSE, BREATHER, TWIN

5414322

$39.99

9

HOOD, AIR INTAKE

5416841

$27.99

10

PLUG, AIR BOX

5451429

$14.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

13

CLAMP-HOSE,SPRING .81

7081026

$7.99

14

WASHER-FL .281X.750X.062-Y

7555859

$1.49

15

PLUG-AIR BOX, MUDDER

5415705

$3.19

16

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

17

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

18

Sensor, Air Temperature

2410687

$143.99

19

STRAP, ECU

5414193

$27.99

20

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

21

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99
