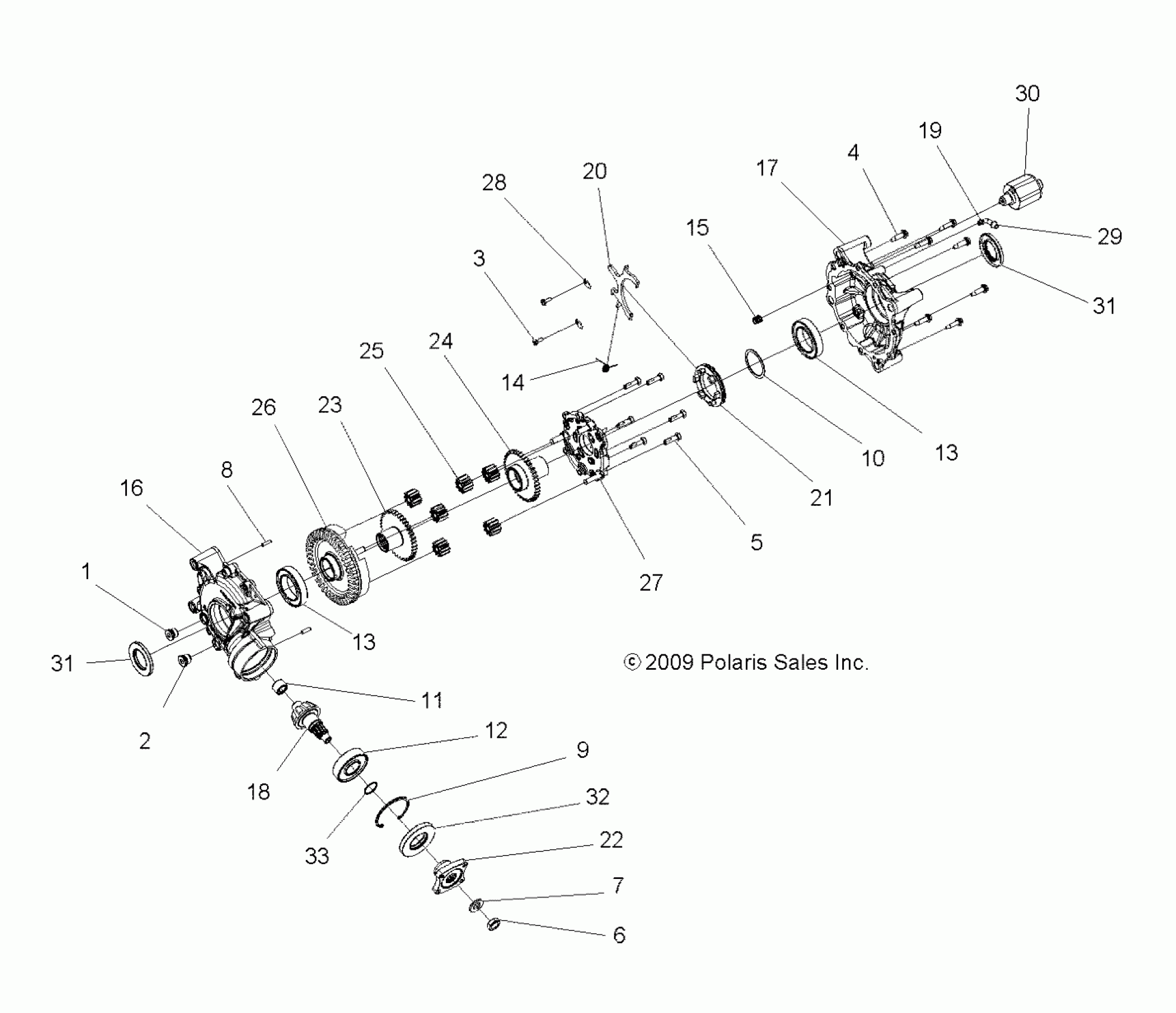

Polaris SPORTSMAN X2 850 - A11TN85AA DRIVE TRAIN, REAR DIFFERENTIAL INTERNALS - A11TN85AA (49ATVTRANSINTL1332723) Diagram

#

Description
Price

-

Asm., Drive, Rear Differential [Incl. All]

1332926

$1,649.99

1

PLUG, M18 X 1.5

3234755

$27.78

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW

3234329

$9.52

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

5

SCREW

3235096

$9.70

6

NUT, HEX

3234776

$10.32

7

WASHER, LOCKING

3234777

$43.65

8

PIN, DOWEL 6 X 20

3234330

$7.14

9

RING, RETAINING

3234158

$23.81

10

SHIM

3233554

$39.99

11

BEARING, NEEDLE

3234799

$15.87

12

BEARING, BALL

3233714

$31.75

13

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

13

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

14

SPRING, TORSION RETURN

3234276

$8.89

15

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

16

CASE, MAIN

3234926

$294.99

17

CASE, MAIN

3234927

$488.87

18

Shaft, Pinion, 10T

3235304

$142.86

19

TUBE, VENT

3234230

$10.51

20

FORK, PIVOT SHAFT

3234285

$64.75

21

DOG, ENGAGEMENT

3234928

$87.13

22

COUPLER

3234782

$101.17

23

SUBASM., GEAR, SIDE 39T

3234929

$137.76

24

BEARING

3234241

$15.87

24

SUBASM., GEAR, SIDE, 39T, DISCONNECT [INCL. BEARING]

3234930

$159.98

25

GEAR, PLANET SUBASM [INCL. BUSHING]

3234931

$57.76

25

BUSHING [1 PER GEAR]

3234935

Unavailable

26

BEARING

3234241

$15.87

26

Gear, 37T, Straight Bevel Subasm [Incl. Bearing

3234932

$354.99

27

BEARING

3234241

$15.87

27

Cover, Carrier Subasm [Incl. Bearing

3234933

$314.99

28

RETAINER-FORK

3234934

$12.34

29

Plug, Cap Vent

3233578

$7.99

30

SOLENOID

3235478

$295.46

31

SEAL, TRIPLE LIP

3235052

$32.37

31

SEAL, TRIPLE LIP

3235052

$32.37

32

SEAL, TRIPLE LIP

3235051

$32.37

33

O-RING

3234785

$9.70
