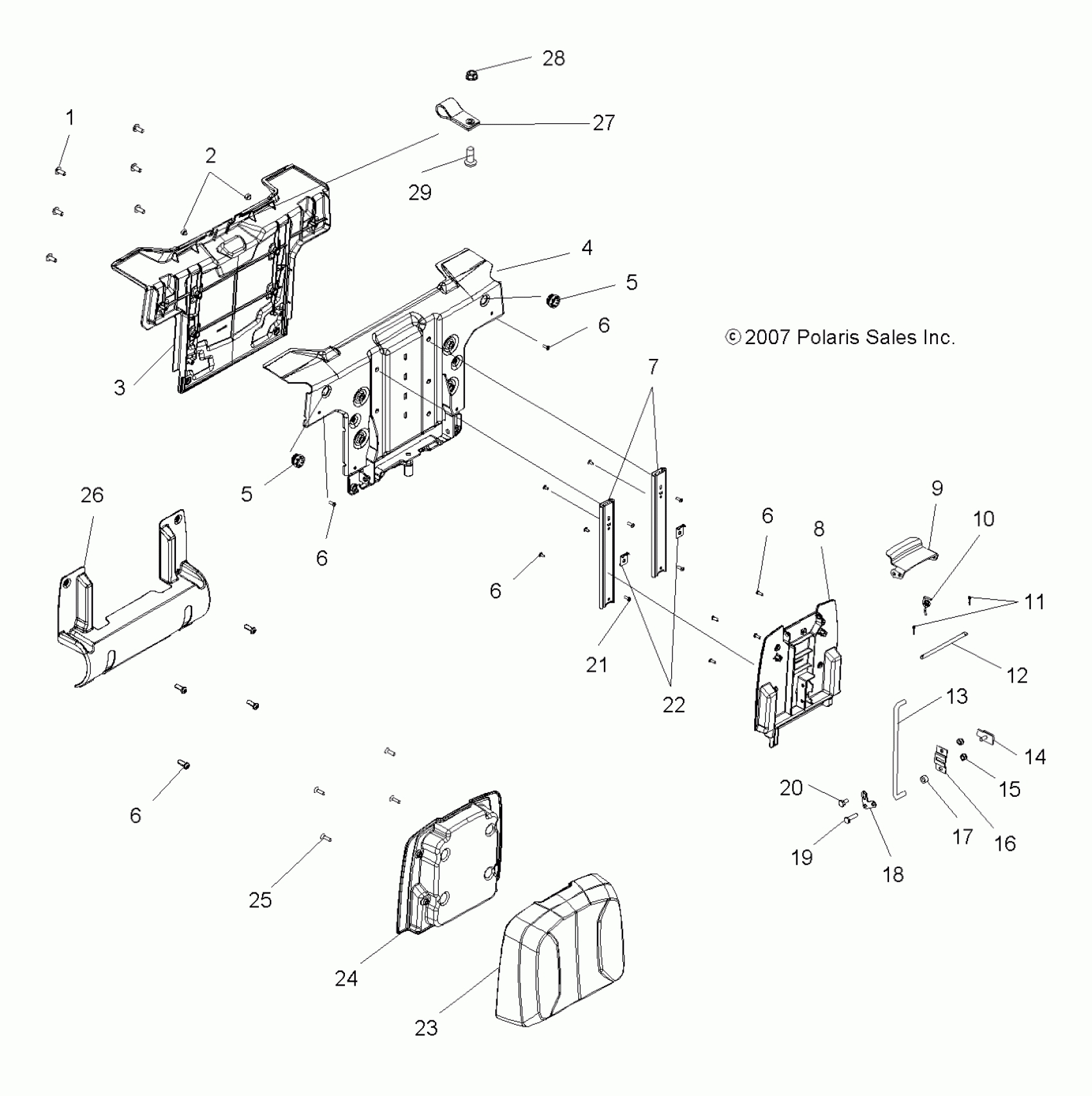

Polaris SPORTSMAN X2 850 - A11TN85AA BODY, SEAT, PASSENGER, BACK - A11TN85AA (49ATVSEATBACK08SPX27) Diagram

#

Description
Price

1

SCREW

7518601

$4.79

2

BUMPER-RUBBER,1/2" OD

5413087

$2.39

3

BASE COVER, PASSENGER SEAT

5436531

$51.99

4

SUPPORT, SEAT BACK

1015676-067

$291.99

5

GROMMET

5412994

Unavailable

5

GROMMET

5412994

Unavailable

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

7

SLIDE, SINGLE, EXTENSION

7081379

$55.99

8

BASE SLIDER, PASSENGER SEAT

5436532

$51.99

9

PLATE, HANDLE, SEAT

5250944

$35.99

10

SPRING-LATCH

7043219

$10.39

11

PIN

7661010

$1.49

12

ROD-PASSENGER SEAT

5135336

$51.99

13

ROD-HANDLE,PASS,BACK

5250162

$27.99

14

LATCH-SLIDER,CAST

5631980

$9.59

15

NUT

7542122

$1.49

16

PLATE RETAINER SLIDE

5249903

$7.99

17

SPACER

7556373

$3.19

18

PLATE-SLIDER,PIVOT

5250163

$6.39

19

SCR-SHLDR,5/16X3/8X1/4-20

7518615

$4.79

20

BOLT

7512102

$3.19

21

SCR-#8-32X.375",TORX,TRI-S

7518256

$2.39

22

BRKT-STOP,SLIDER

5250454

$6.39

23

BUN, SEAT

5436149-070

$92.39

24

BASE-SEAT,TREK

5436150

$31.99

25

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.79

26

COVER, LATCH

5436533-070

Unavailable

27

HANDLE, SEAT

5813086

$27.99

28

Nut, Flange

7542153

$1.59

29

SCREW

7517685

$1.59
