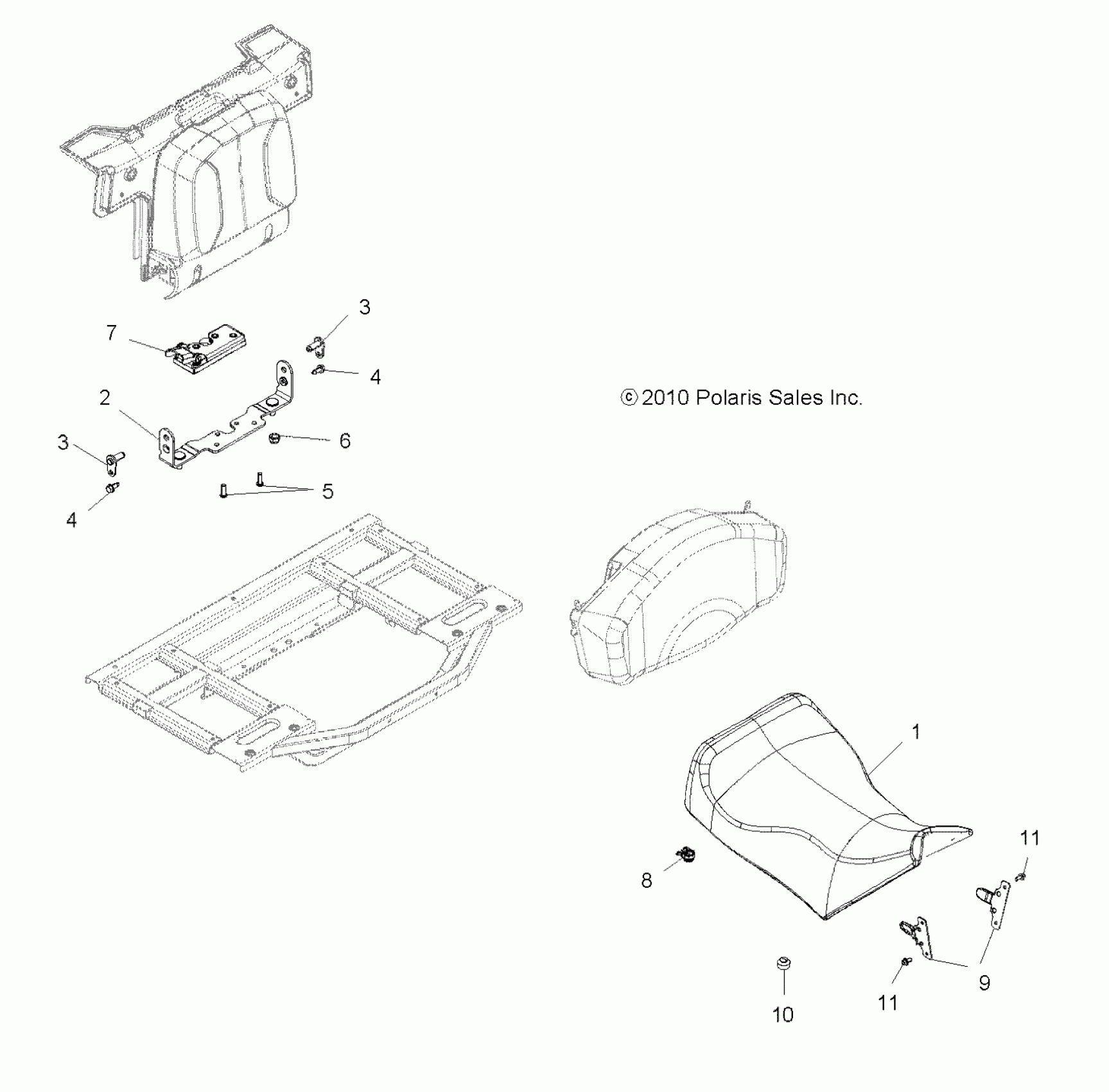

Polaris SPORTSMAN X2 850 - A11TN85AA BODY, SEAT, OPERATOR - A11TN85AA (49ATVSEAT11SPX2550) Diagram

#

Description
Price

1

KIT, SEAT POST

2204682

$39.99

1

Asm., Seat, Black

2684703-070

Unavailable

1

Covering, Seat, Black

2684291-070

$392.86

2

PIVOT, PASSENGER SEAT

1015414-067

Unavailable

3

WELD-PIN,PIVOT

1015413

$23.99

3

WELD-PIN,PIVOT

1015413

$23.99

4

SCREW

7517386

$1.49

4

SCREW

7517386

$1.49

5

SCREW

7515177

$3.19

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

LATCH-SEAT,PASS,BACK

7081325

$83.99

8

GROMMET, SEAT LATCH

5413691

$3.19

9

BRACKET, SEAT BASE

5250682

$43.99

10

BUMPER-RUBBER

5412067

$3.99

11

SCREW

7519045

$3.19

11

SCREW

7519045

$3.19
