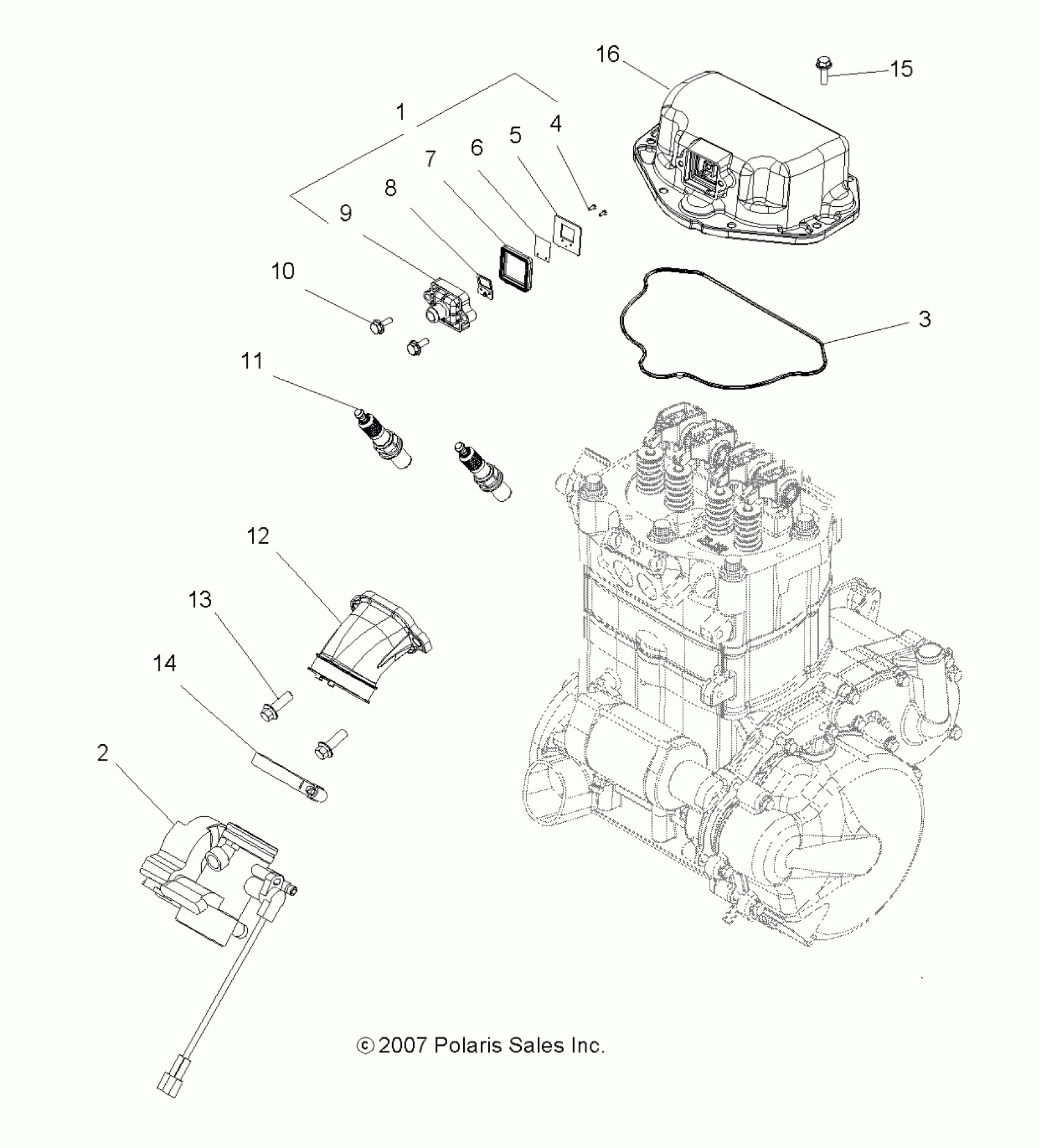

Polaris SPORTSMAN X2 800 EFI LE - A08TN76AA/AQ ENGINE, THROTTLE BODY MOUNTING - A08TN76AA/AQ (49ATVTHROTTLEBODY08SPTRG800) Diagram

#

Description
Price

1

ASM-REED W/GASKET [INCL. 4-8]

3021352

$32.37

2

ASM., THROTTLE BODY [INCL. THROTTLE POSITION SENSOR]

1202836

Unavailable

3

Seal, Valve Cover

5412632

$7.27

4

RIVET

----

Unavailable

5

PLATE, REED, BREATHER

----

Unavailable

6

REED, CASE BREATHER

----

Unavailable

7

GASKET, BREATHER

----

Unavailable

8

BRACKET, REED SUPPORT

----

Unavailable

9

Cover, Breather

5432533

$8.89

10

SCREW

7517277

$3.17

11

PLUG, SPARK, CHAMPION RC7YC3

3021671

$3.97

12

Adapter

1253564

$74.99

13

SCREW

7516734

$3.17

14

Clamp, Hose

7081193

$3.17

15

SCREW

7516822

$2.38

16

Cover, Valve

5136099

$72.84
