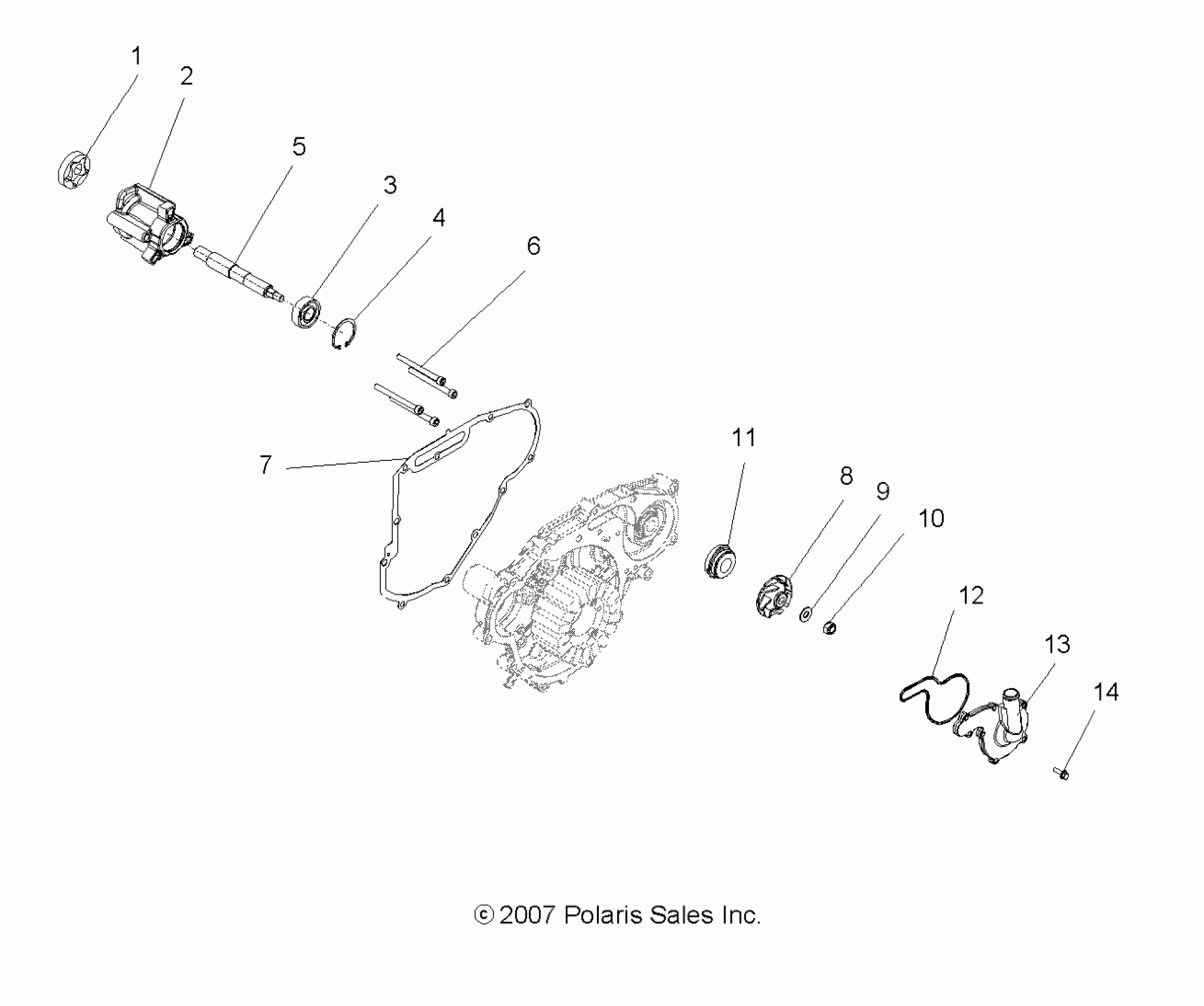

Polaris SPORTSMAN X2 800 EFI LE - A08TN76AA/AQ ENGINE, OIL PUMP and WATER PUMP - A08TN76AA/AQ (49ATVOILPUMP08SP800EFI) Diagram

#

Description
Price

-

Kit, Oil Pump [Incl. 1-5]

2203012

$215.59

1

Asm., Gerotor

1202588

Unavailable

2

HOUSING, OIL PUMP

5135094

Unavailable

3

BEARING, BALL

3514561

$9.59

4

RING, RETAINING

7710531

$4.79

5

SHAFT, OIL/WATER PUMP

5135650

$75.99

6

SCREW

7517807

$4.79

7

GASKET, COVER, MAGNETO

5812936

$35.99

8

IMPELLER, WATER PUMP

5433684

$31.99

9

Washer, Flat

7555874

$2.39

10

Nut, Hex, Nylok

7546804

$1.49

11

SEAL, WATER PUMP

3610075

$72.84

12

SEAL, WATER PUMP

5812571

$7.99

13

Cover, Water Pump

5631882

Unavailable

14

SCREW

7516822

$2.39
