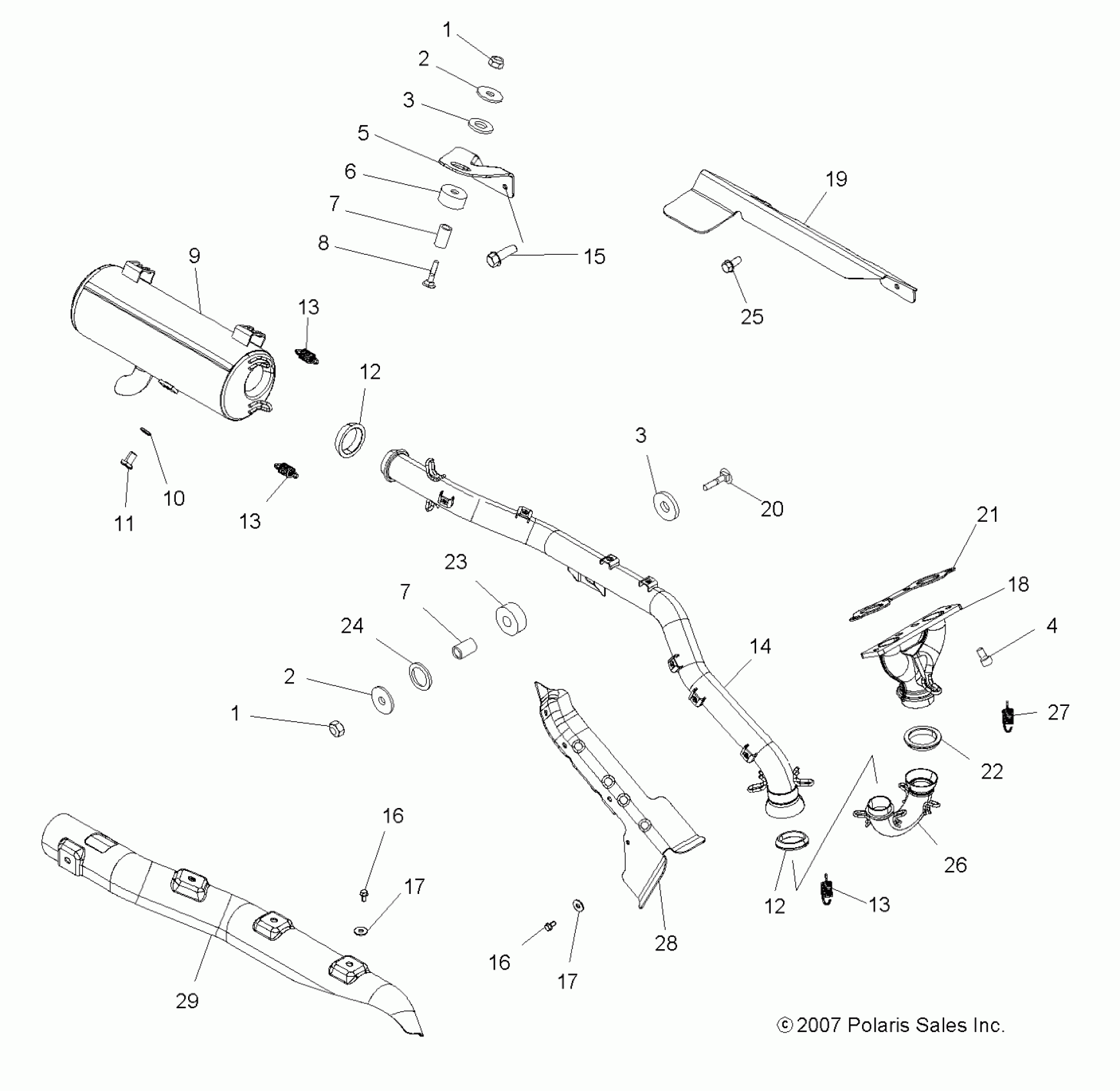

Polaris SPORTSMAN X2 800 EFI LE - A08TN76AA/AQ ENGINE, EXHAUST - A08TN76AA/AQ (49ATVEXHAUST08SPX27) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Screw

7518234

Unavailable

5

Bracket, Exhaust Mount

5251092

$9.05

6

DAMPENER, VIBRATION

5412659

$3.97

7

BUSHING

5010192

$6.35

7

BUSHING

5010192

$6.35

8

BOLT, CARRIAGE

7515316

$2.38

9

Silencer, Exhaust

1261700-489

$519.99

10

WASHER, CLEAN OUT

7556230

$1.19

11

BOLT

7512666

$2.38

12

SEAL, EXHAUST

3610047

$36.41

12

SEAL, EXHAUST

3610047

$36.41

13

SPRING, EXHAUST

7041804

$8.89

13

SPRING, EXHAUST

7041804

$8.89

13

SPRING, EXHAUST

7041804

$8.89

14

Pipe, Exhaust

1261772-489

Unavailable

15

SCREW

7515399

$1.19

16

SCREW

7518490

$1.19

16

SCREW

7518490

$1.19

17

Washer

7555935

$2.38

17

Washer

7555935

$2.38

18

Manifold, Black

1261703-489

$204.99

19

Shield, Heat, Exhaust

5251564

Unavailable

20

Bolt, Carriage

7518660

Unavailable

21

GASKET

5811511

$48.56

22

SEAL, EXHAUST

3610119

$20.22

23

DAMPENER, VIBRATION

5412659

$3.97

24

Bushing

7556401

Unavailable

25

SCREW

7512232

$1.19

26

Joint, Manifold, Black

1261750-489

Unavailable

27

SPRING-EXHAUST

7041789

$8.89

28

Shield, Heat, Exhaust

5251221

$30.32

29

Shield, Exhaust

5250980-489

$30.16
