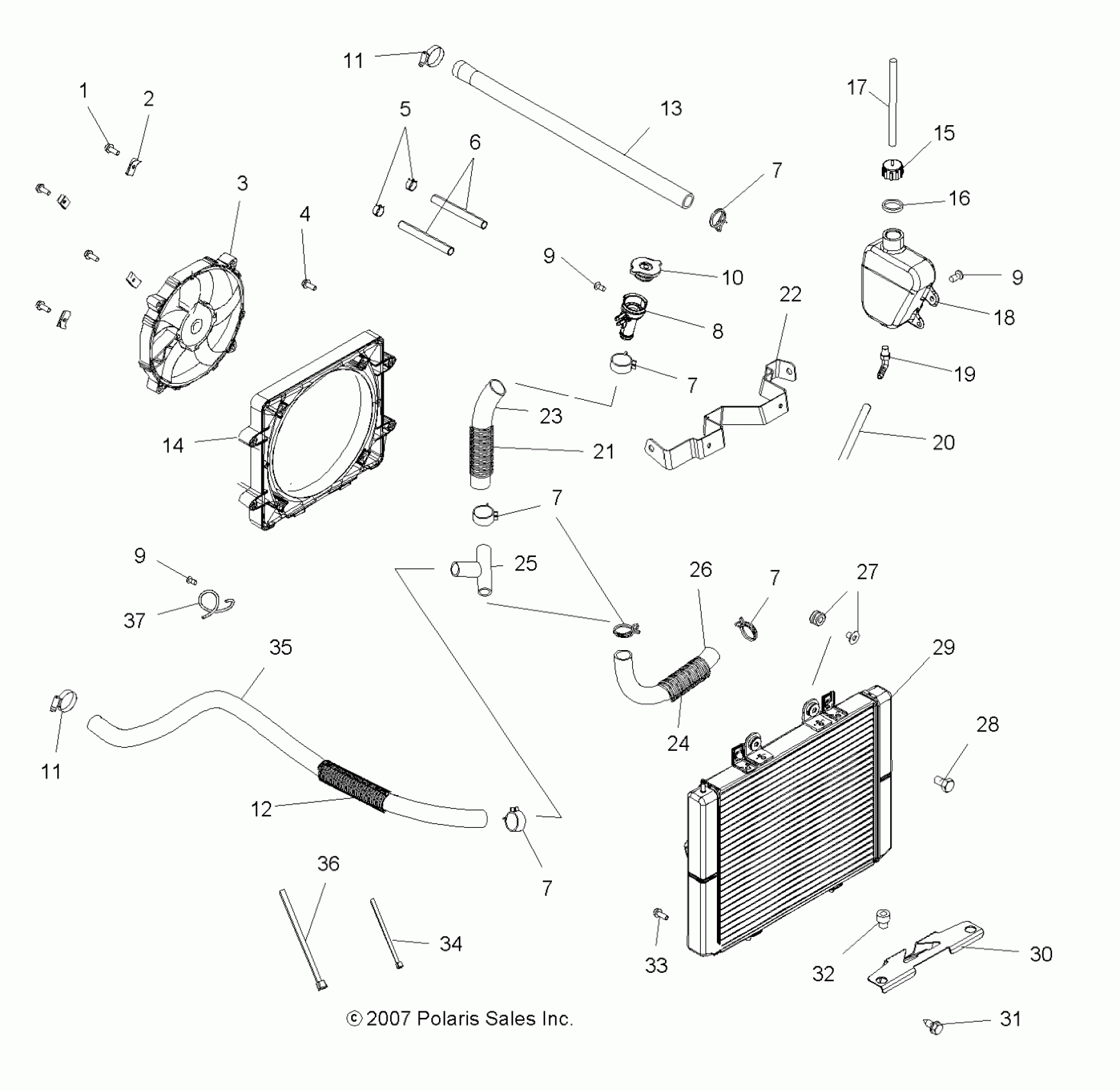

Polaris SPORTSMAN X2 800 EFI LE - A08TN76AA/AQ ENGINE, COOLING SYSTEM - A08TN76AA/AQ (49ATVCOOL08SPX27) Diagram

#

Description
Price

1

Bolt

7517975

$5.59

2

U-Clip

7547197

$6.23

3

Fan

2410901

Unavailable

4

Screw w/Washer

7547220

$5.99

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE

8450120-600

$67.99

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

10

Cap, Pressure

1240044

Unavailable

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

12

Guard, Hose

5521742

$9.91

13

Hose, Engine, Upper

5413169

$40.46

14

Shroud, Fan

5434853

Unavailable

15

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

LINE, FUEL

8360009-600

$40.46

18

TANK-SURGE

5436936

$75.99

19

FITTING, 90 DEGREE

7052065

$7.19

20

Line, Fuel

8450003-1525

$84.99

21

Guard, Hose

5521749

$3.81

22

Bracket, Radiator Mount, Upper

5250769

$6.59

23

Hose, Filler Neck

5412857

Unavailable

24

Guard, Hose

5521753

$5.75

25

T-Connector

7052397

$23.99

26

Hose, Lower Radiator

5412838

$32.95

27

ASM., GROMMET AND INSERT

5411975

$3.19

28

Screw

7515179

$2.39

29

Radiator

1240301

$437.13

30

Bracket, Radiator, Lower, Black

5247047-067

$74.99

31

SCREW

7517386

$1.49

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5413168

$52.60

36

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

37

Retainer, Hose

7043335

$2.47
