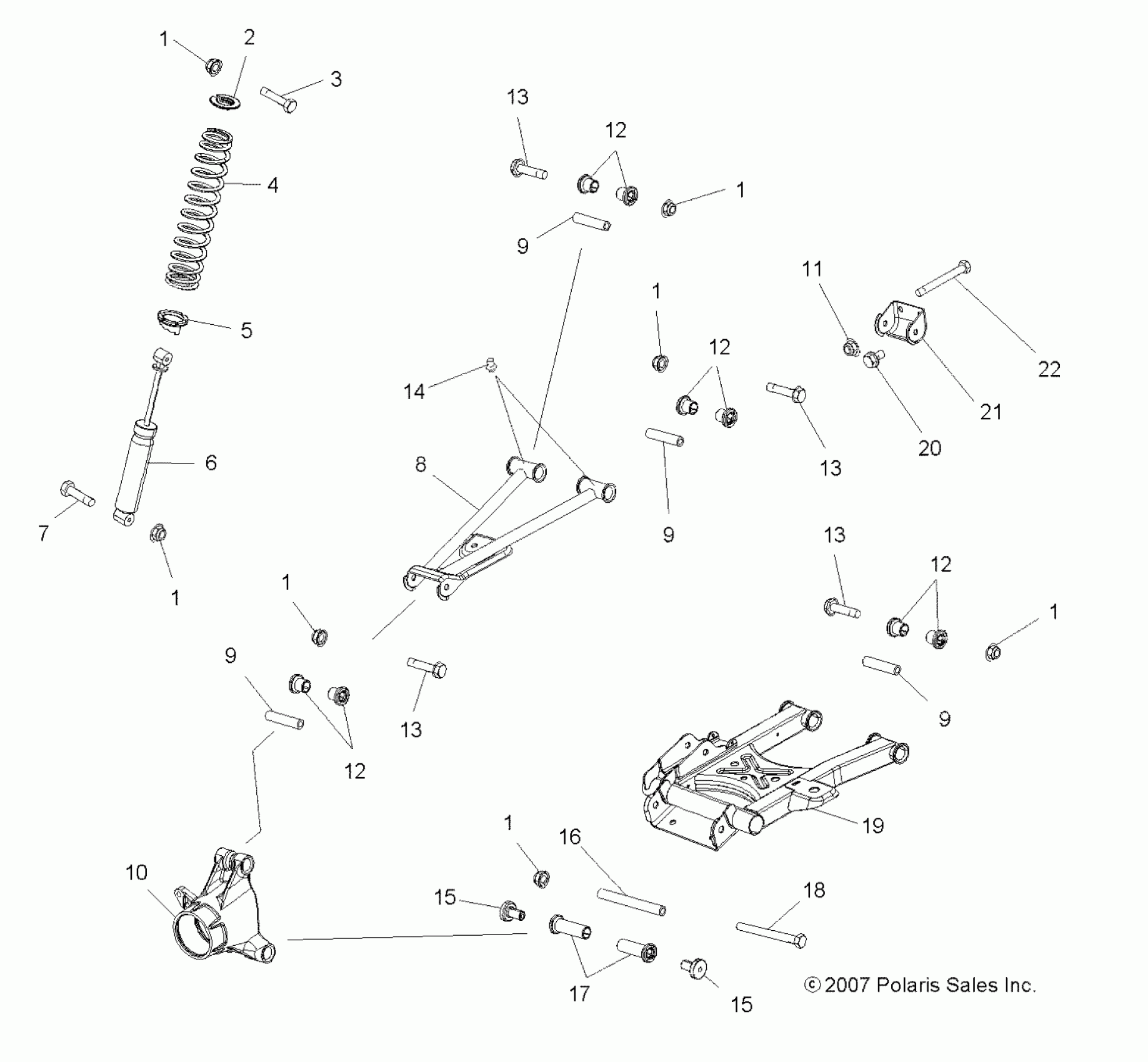

Polaris SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ SUSPENSION, REAR - A09TN76AL/AX/AZ (49ATVSUSPRR09SPX2800) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

RETAINER-SPRING,STEEL

5251753

$10.39

3

Screw

7515433

$1.59

4

Spring, Compression, Rear, Black

7043375-067

Unavailable

5

CAM, ADJUSTING, SPRING

5630551

$31.99

6

Shock, Rear

7043374

$91.99

7

Screw

7515415

$1.49

8

Arm, Control, Upper, RH, Black

1015849-067

Unavailable

8

Arm, Control, Upper, LH, Black

1015848-067

Unavailable

9

Shaft, A-Arm, Short

5134882

$31.99

9

Shaft, A-Arm, Short

5134882

$31.99

9

Shaft, A-Arm, Short

5134882

$31.99

9

Shaft, A-Arm, Short

5134882

$31.99

10

Carrier, Wheel Bearing, LH

5134984

$103.99

10

Carrier, Wheel Bearing, RH

5134985

$103.99

11

Nut, Flange

7547180

$2.39

12

Bushing, Control Arm

5436832

$2.38

12

Bushing, Control Arm

5436832

$2.38

12

Bushing, Control Arm

5436832

$2.38

12

Bushing, Control Arm

5436832

$2.38

13

Screw

7518523

$3.99

13

Screw

7518523

$3.99

13

Screw

7518523

$3.99

13

Screw

7518523

$3.99

14

Fitting, Lubrication

7080433

$1.49

15

BUSHING, PIVOT

5136102

$10.39

15

BUSHING, PIVOT

5136102

$10.39

16

TUBE, PIVOT

5136101

Unavailable

17

BUSHING, CONTROL ARM

5437229

$6.39

18

Bolt

7518522

$7.19

19

Control, Lower, RH, Black

1016023-067

$486.74

19

Control, Lower, LH, Black

1016022-067

$486.74

20

SCREW

7517632

$5.59

21

Bracket, Control-Arm Pivot

5249289

Unavailable

22

SCREW

7518365

$7.91
