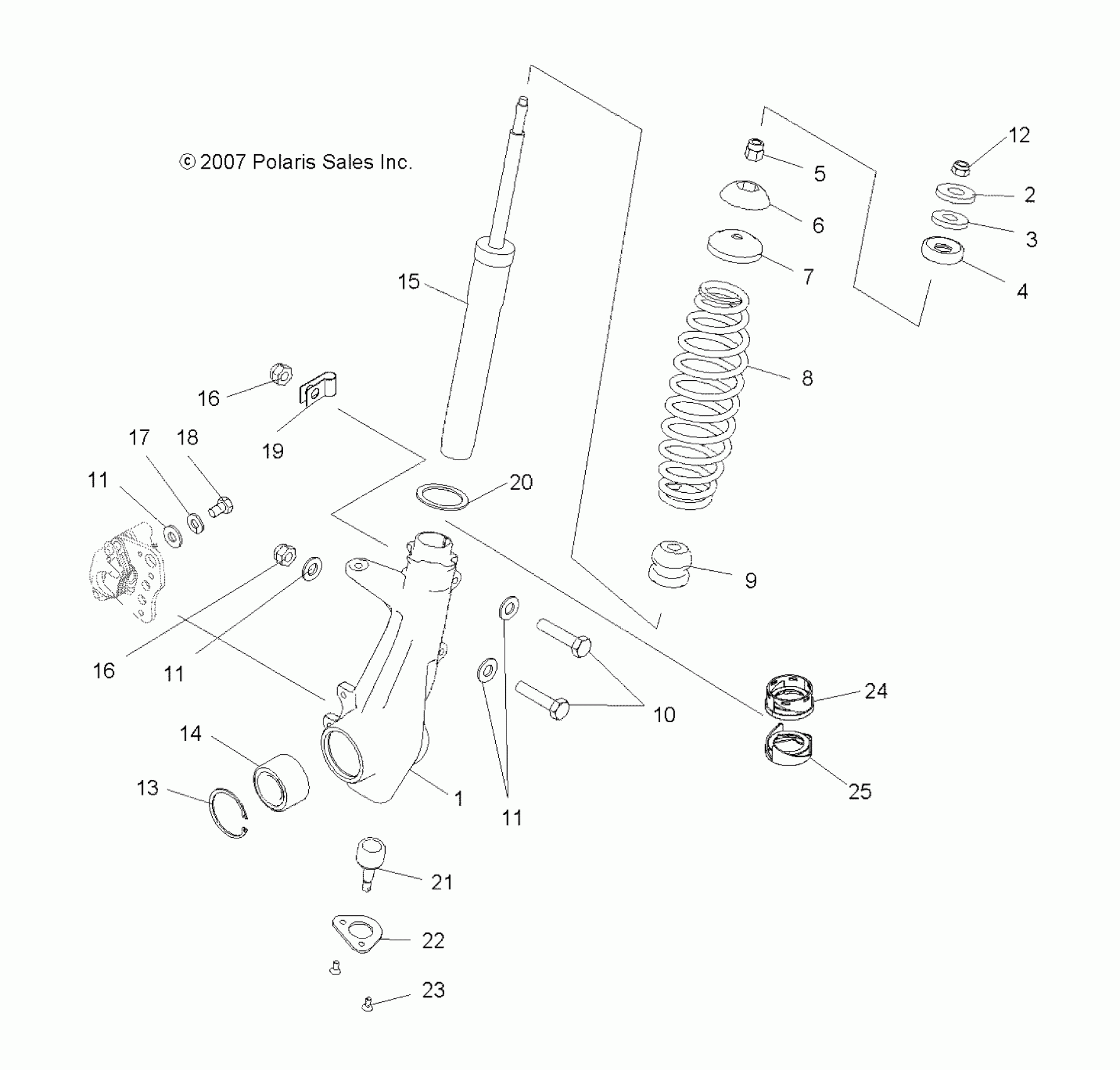

Polaris SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ SUSPENSION, FRONT STRUT - A09TN76AL/AX/AZ (49ATVSTRUT09SPX2800) Diagram

#

Description
Price

1

Asm., Hubstrut, RH [Incl. 13,14,21,22,23]

1822826

$303.99

1

Asm., Hubstrut, LH [Incl. 13,14,21,22,23]

1822825

$303.99

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

SPACER

5132062

$19.99

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

SPRING, COMPRESSION, BLACK

7042301-067

Unavailable

9

BUMPER-MCU,17.8MM ID

5412665

$6.39

10

BOLT

7512312

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

13

RING, RETAINING

7710507

$2.39

14

BEARING-WHEEL, 35X64X37MM

3514634

$39.99

15

STRUT, FRONT

7041762

$123.99

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

WASHER, SPRING LOCK

7552901

$1.49

18

SCREW

7512365

$1.49

19

CLAMP-CABLE

7080367

$2.39

20

WASHER-2.06X2.62X.105-Y [AX][AZ]

5211115

$3.99

21

BALL-JOINT,GREASELESS,STRUT

7061158

$75.99

22

BRACKET-BALL JOINT

5211121

$31.99

23

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

24

Cam, Adjuster, Front, Top [AL]

5632253

Unavailable

25

Cam, Adjuster, Front [AL]

5632251

Unavailable
