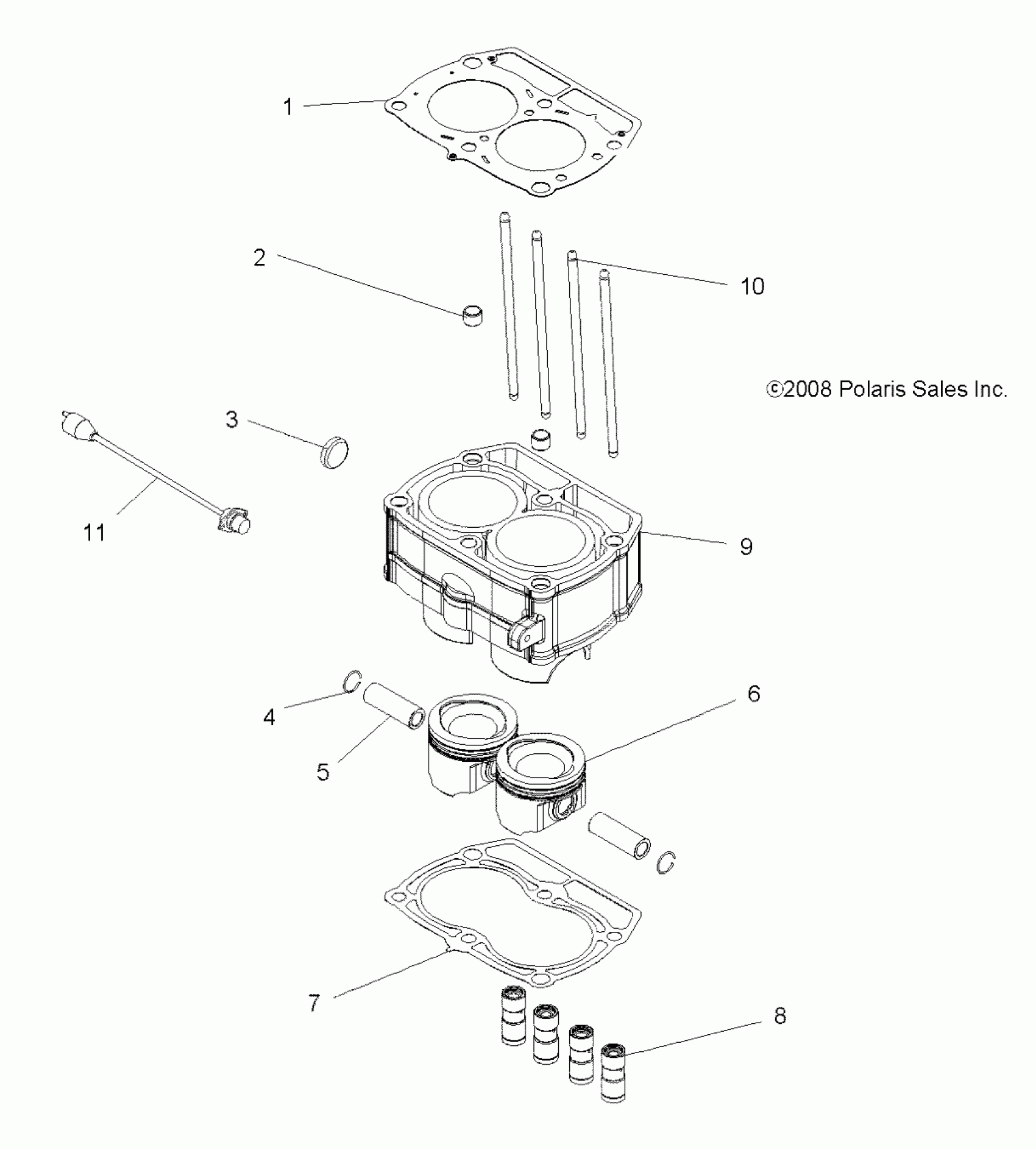

Polaris SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ ENGINE, PISTON and CYLINDER - A09TN76AL/AX/AZ (49ATVPISTON09SPX2800) Diagram

#

Description
Price

-

Kit, Piston [Incl. 4-6]

2202917

$180.49

1

Gasket, Head

5247359

$66.49

2

DOWEL

7661175

$5.65

3

Plug [AS][AZ]

7051534

$5.65

4

CIRCLIP, PISTON

3021510

$7.14

5

PIN, PISTON

----

Unavailable

6

KIT, PISTON RING [INCL. 1 TOP, MIDDLE, BOTTOM, RING]

2202920

$61.74

7

GASKET, BASE

5247360

$40.46

8

Lifter, Valve

5134152

$36.41

9

Kit, Cylinder [Incl. 3]

2203911

$593.74

10

PUSHROD

5132402

$52.60

11

Heater, Frost Plug [AL

4010893

$139.68
