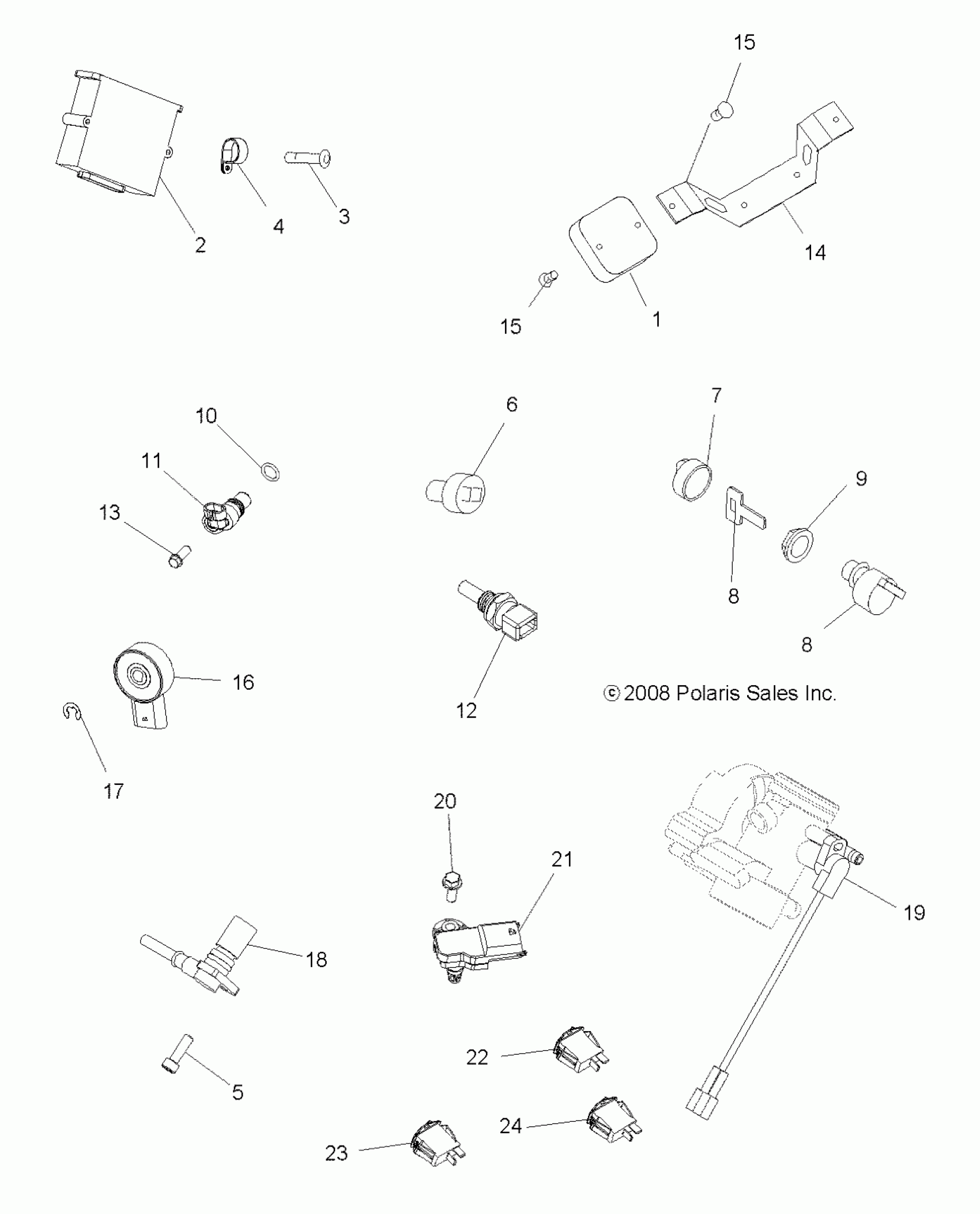

Polaris SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ ELECTRICAL, SWITCHES and SENSORS and ECM - A09TN76AL/AX/AZ (49ATVELECT09SPX2800) Diagram

#

Description
Price

1

Regulator

4012384

$337.24

2

ECU

4011599

$612.74

3

SCR-TXPH-10-24X2 CHS ZY3

7518486

$3.17

4

CLAMP

7080585

$3.97

5

Screw

7517384

$8.73

6

SWITCH [BRAKE LIGHTS]

4110164

$204.24

7

KEY SWITCH KEY COVER

5433534

$13.75

8

Switch, Key, 3 Position [Incl. Key]

4012165

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

8

Switch, Key, 3 Position [Incl. Key]

4012165

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

9

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

10

O-RING

3234302

$7.27

11

SENSOR-SPEED,TRANS

4013908

$109.27

12

SENSOR-THERMISTER

4010644

$91.97

13

SCREW

3234247

$5.56

14

Bracket, Voltage Regulator

5248725

Unavailable

15

SCREW

7512024

$4.76

15

SCREW

7512024

$4.76

16

SWITCH, ROTARY

3233835

$142.49

17

RING, RETAINING

3233834

$10.32

18

SENSOR, CRANK POSITION

2410720

$117.37

19

Sensor, Throttle Position [Must also order O-Ring]

2410342

$105.22

19

O-Ring, TPS [Used w/2410342]

5413812

$2.02

20

Screw

7517658

$5.56

21

Sensor, T-Map

2410422

$97.13

22

Switch, Turf, On/Off

4011966

Unavailable

23

Switch, Hand Warmer, Hi/Lo [AL]

4010963

Unavailable

24

Switch, Thumb Warmer, Hi/Lo [AL]

4010964

$64.75
