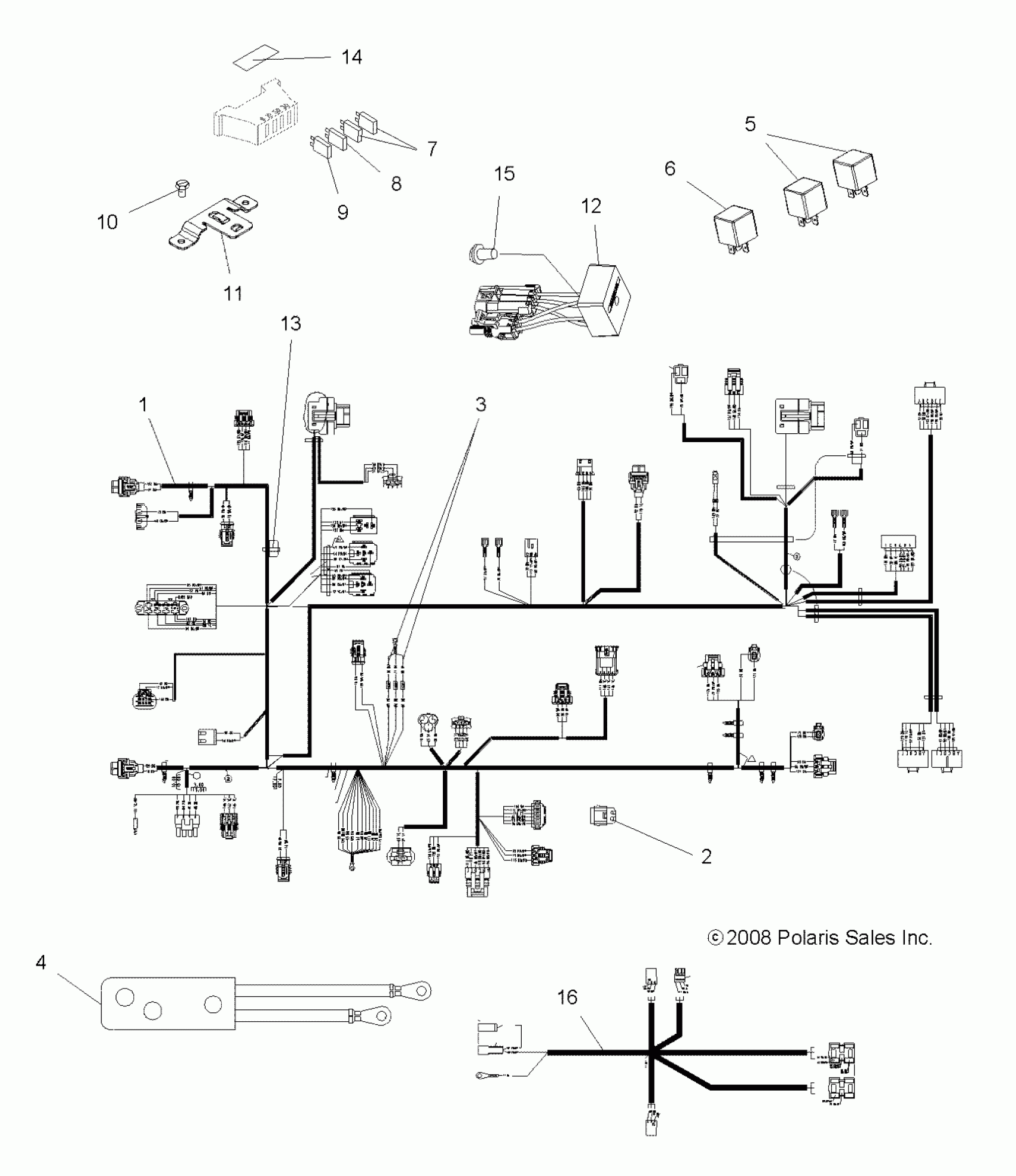

Polaris SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ ELECTRICAL, HARNESSES - A09TN76AL/AX/AZ (49ATVHARNESS09SPX2800AL) Diagram

#

Description
Price

1

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

1

Harness, Main [Incl. 1-3,7-9,13,14, Diagnostic Cover, All Kits]

2411127

Unavailable

2

Kit, Harness, Resistor Module

2204890

$127.99

3

KIT, FUSIBLE LINK, 1.MM

2202670

$35.99

3

KIT, HARNESS, T-BAP

2875542

Unavailable

3

Kit, Harness, TPS

2203801

$111.99

3

Kit, Harness, Engine Temp

2875543

$107.99

3

KIT, HARNESS, CPS

2878077

$111.99

3

KIT, FUSIBLE LINK, .8MM

2202607

$39.99

3

Kit, Harness, Key Switch

2878509

$149.99

4

Harness, Winch [AX][AZ]

2410860

Unavailable

5

RELAY

4011141

$71.99

6

Relay

4011998

$48.56

7

FUSE, 20 AMP

4011683

$8.79

8

FUSE, 15 AMP

4011682

$7.19

9

FUSE, 5 AMP

4011681

$7.91

10

SCREW

7512024

$4.79

11

BRACKET, FUSE BLOCK

5250236

$7.03

12

Relay, Solid State, 9 AMP

4012193

Unavailable

13

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

14

DECAL, FUSE BLOCK

7171032

Unavailable

15

SCREW

7518418

$3.99

16

Harness, Wire, Pod, Warmers [AL]

2411066

$99.99
