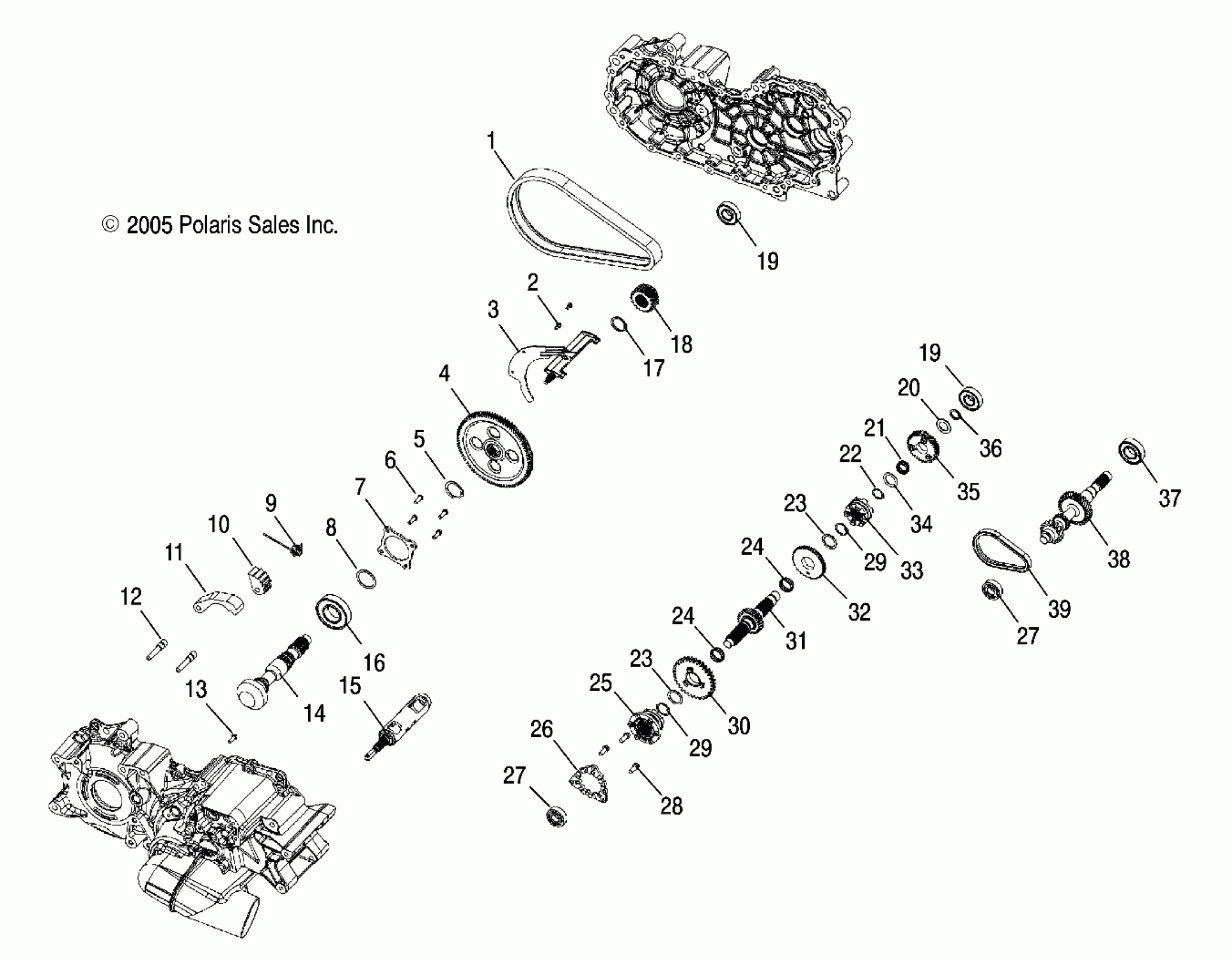

Polaris SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU TRANSMISSION, INTERNAL - A07TH76AU/TN76AF/AL/AU (4999204069920406D06) Diagram

#

Description
Price

-

Asm., Gearcase

1332532

Unavailable

1

Chain, 86P

3234442

$323.99

2

SCREW

3233749

$5.59

3

DEFLECTOR, OIL

3234061

$23.99

4

GEAR, OUTPUT, 91T

3234062

$251.99

5

RING, RETAINING

3233364

$6.39

6

SCREW

3234086

$5.59

7

COVER, CENTER DRIVE BEARING

3234063

$27.99

8

SHIM

3234271

$19.99

9

SPRING, TORSION

3233431

$23.99

10

CAM, CHAIN TENSIONER

3233434

$12.79

11

SHOE, CHAIN TENSIONER

3233433

$27.99

12

PIN

3233432

$7.19

13

SCREW

3234086

$5.59

14

Pinion, Center Drive

3234263

$405.59

15

DRUM, SHIFT

3234360

$171.99

16

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

17

RING, RETAINING

3233699

$7.19

18

SPROCKET, 19T

3234441

$135.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

Washer

3233176

$9.59

21

BEARING, NEEDLE

3233718

$35.99

22

RING, RETAINING

3234336

$5.59

23

Washer

3234248

$9.59

23

Washer

3234248

$9.59

24

Bearing

3233103

$31.99

24

Bearing

3233103

$31.99

25

Dog, Engagement

3234257

$143.99

26

PLATE, PARK

3233915

$39.99

27

BEARING, BALL

3234274

$27.99

27

BEARING, BALL

3234274

$27.99

28

SCREW

3234247

$5.59

29

RING, RETAINING

3233306

$4.79

29

RING, RETAINING

3233306

$4.79

30

GEAR, 33T

3234291

$163.99

31

SHAFT, REVERSE, 26T

3234280

$259.99

32

SPROCKET, 38T

3234290

$151.99

33

Dog, Engagement

3234258

$91.99

34

WASHER

3233855

$10.39

35

GEAR, SPUR

3234355

$103.99

36

RING, RETAINING

3234067

$7.99

37

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

38

SHAFT, INPUT

3234351

Unavailable

39

CHAIN, SILENT

3234264

$95.99
