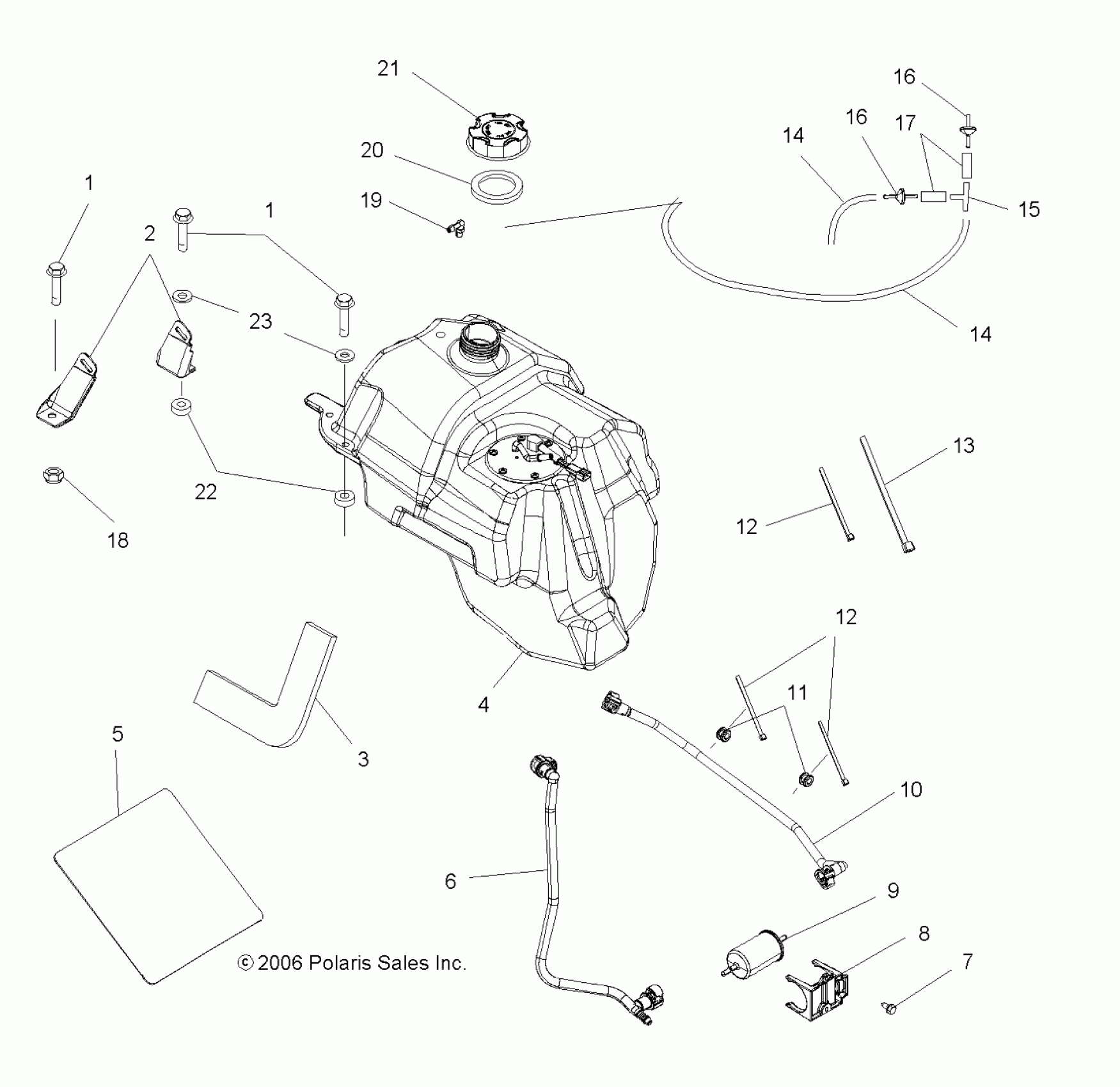

Polaris SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU FUEL TANK - A07TH76AU/TN76AF/AL/AU (49ATVFUEL07X2800) Diagram

#

Description
Price

1

SCREW

7517219

$4.79

1

SCREW

7517219

$4.79

2

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

2

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

3

SEAL, FOAM

5812265

$27.99

4

Asm., Fuel Tank [If built after 2/09/07]

2520776

Unavailable

4

Asm., Tank, Fuel [If built before 2/09/07]

2520496

Unavailable

4

Screw

7518619

$3.19

5

Foil

5813024

Unavailable

6

Asm., Fuel Line, Tank to Filter

2520443

$43.99

7

Bolt

7512232

$1.49

8

Mount, Fuel Filter

5436013

$8.79

9

Filter, Fuel

2520464

$39.99

10

Asm., Fuel Line, Filter to Rail

2520695

$44.51

11

Grommet [If built after 2/01/07]

5413317

$2.39

11

Grommet [If built before 2/01/07]

5411774

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

LINE, FUEL

8360009-600

Unavailable

14

LINE, FUEL

8360009-600

Unavailable

15

FITTING, T

7052048

$3.99

16

VALVE, CHECK, VENT

7051011

Unavailable

16

VALVE, CHECK, VENT

7051011

Unavailable

17

Line

8450061-600

Unavailable

18

Nut, Nylok

7542122

$1.49

19

Vent, Tank

5431053

$19.99

20

GASKET

5812123

$5.65

21

Cap, Gas Tank

5433687

$20.22

22

WASHER, NYLON

7555916

$1.59

23

Washer, Flat

7558301

$1.49
