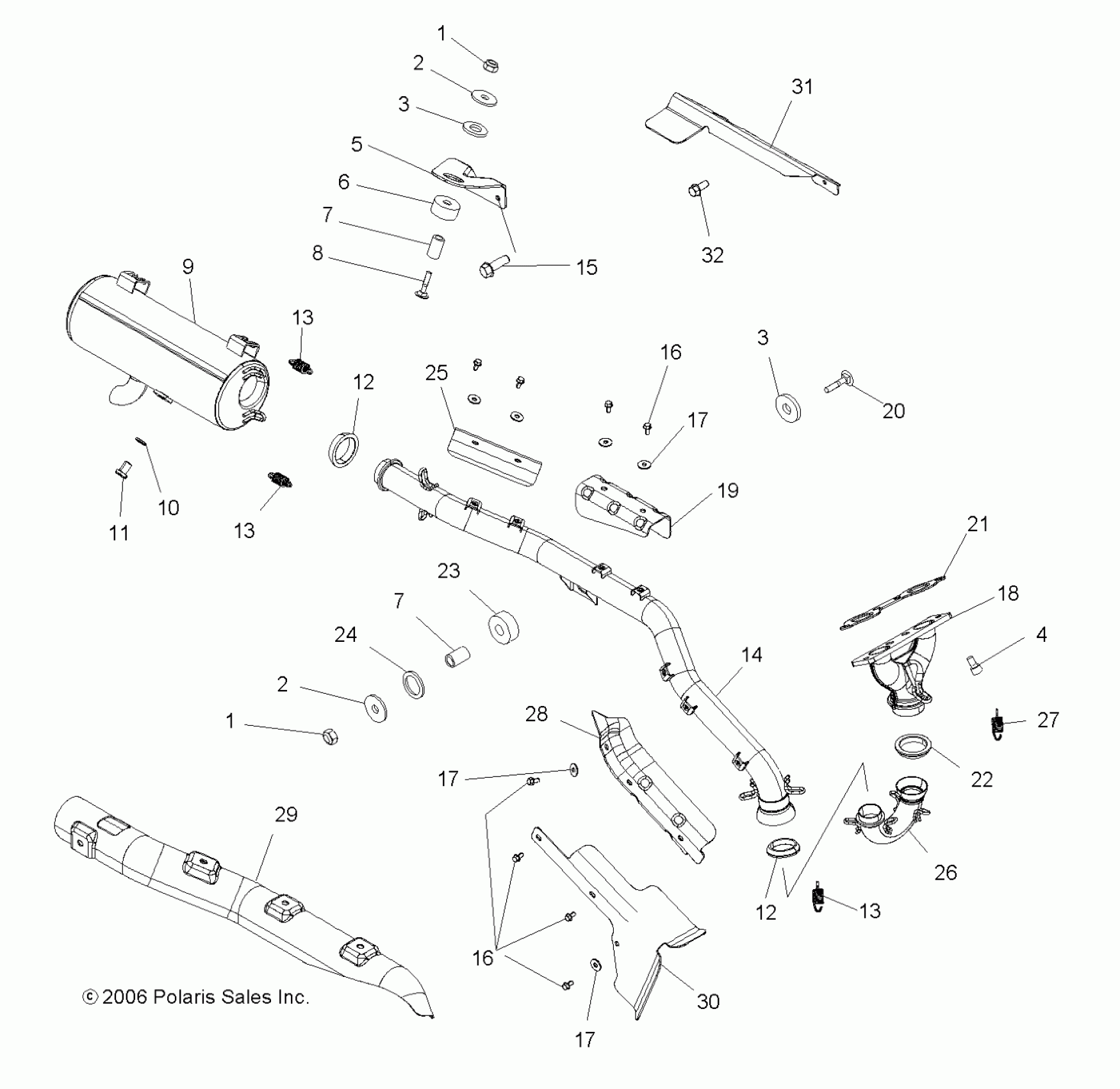

Polaris SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU EXHAUST SYSTEM - A07TH76AU/TN76AF/AL/AU (49ATVEXHAUST07X2800) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Screw

7518234

$2.99

5

Bracket, Silencer, Frame

5249688

$13.19

6

DAMPENER, VIBRATION

5412659

$3.99

7

BUSHING

5010192

$6.39

7

BUSHING

5010192

$6.39

8

BOLT, CARRIAGE

7515316

$2.39

9

Silencer, Exhaust

1261700-029

$514.99

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

SEAL, EXHAUST

3610047

$36.41

12

SEAL, EXHAUST

3610047

$36.41

13

SPRING, EXHAUST

7041804

$7.99

13

SPRING, EXHAUST

7041804

$7.99

13

SPRING, EXHAUST

7041804

$7.99

14

Pipe, Exhaust [If built after 10/01/06]

1261772-029

Unavailable

14

Pipe, Exhaust [If built before 10/01/06]

1261701-029

Unavailable

15

SCREW

7512232

$1.49

16

SCREW

7518490

$1.49

16

SCREW

7518490

$1.49

17

Washer

7555935

$2.39

17

Washer

7555935

$2.39

17

Washer

7555935

$2.39

18

Manifold, Black

1261703-029

$204.99

19

Shield, Heat Exhaust [If built before 10/01/06]

5250574

Unavailable

20

Bolt, Carriage

7518660

Unavailable

21

GASKET

5811511

$48.56

22

SEAL, EXHAUST

3610119

$19.99

23

DAMPENER, VIBRATION

5412659

$3.99

24

Bushing

7556401

$4.99

25

Shield, Heat Exhaust [If built before 10/01/06]

5244014

$39.99

26

Joint, Manifold, Black

1261750-029

Unavailable

27

SPRING-EXHAUST

7041789

$7.99

28

Shield, Heat

5250575

Unavailable

29

Shield, Exhaust [If built after 10/01/06]

5250980-029

Unavailable

30

Shield, Heat, Manifold

5251018

$77.99

31

Shield, Heat

5250983

Unavailable

32

SCREW

7512232

$1.49
