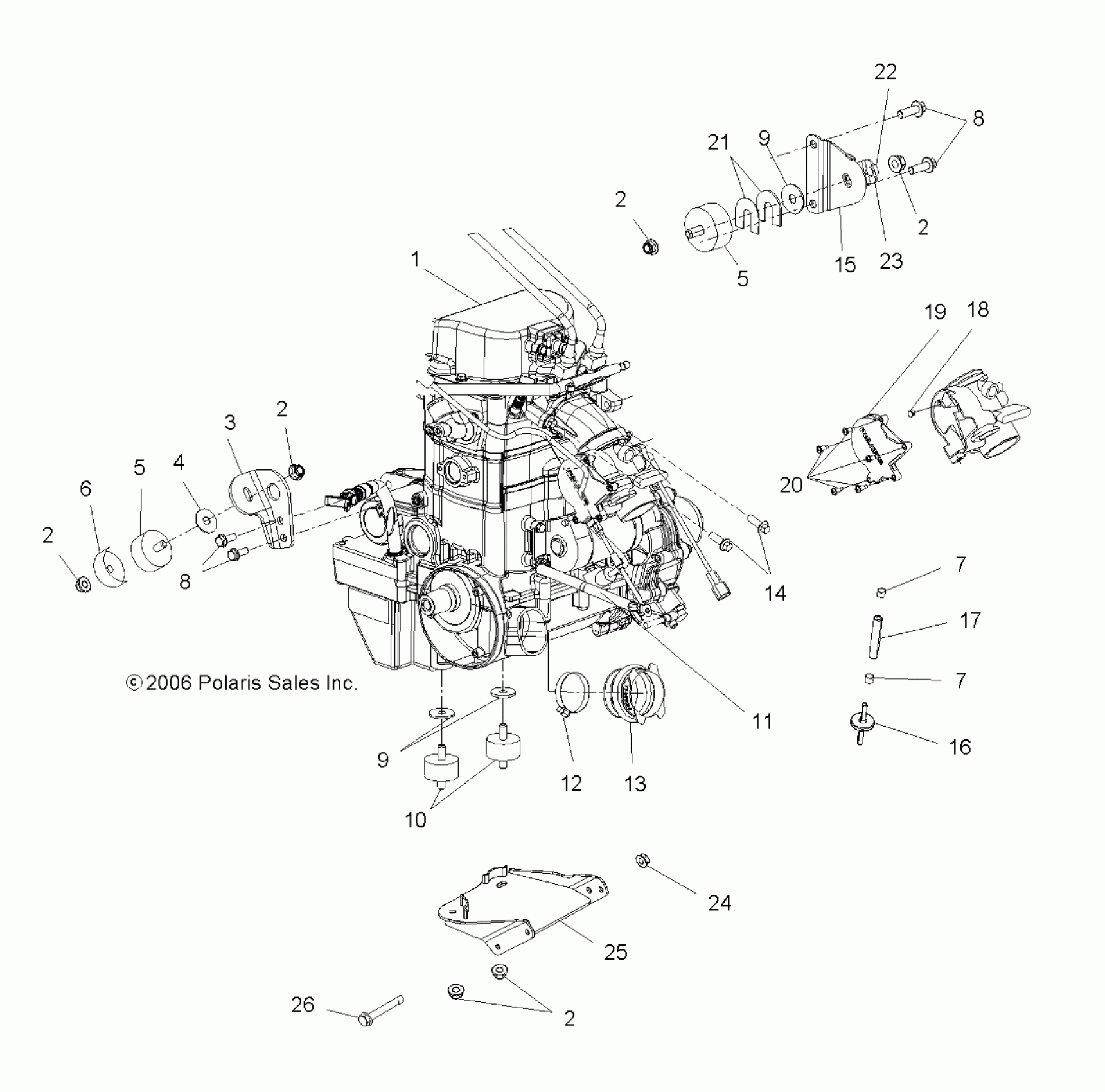

Polaris SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU ENGINE, MOUNTING - A07TH76AU/TN76AF/AL/AU (49ATVENGINE07X2800) Diagram

#

Description
Price

1

Kit, Short Block, 800 EFI NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

2203066

Unavailable

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

3

MOUNT, ENGINE, LOWER, FRONT, BLACK

5244771-067

$127.59

4

WASHER

7555823

Unavailable

5

Mount, Rubber, Top

3110044

Unavailable

5

Mount, Rubber, Top

3110044

Unavailable

6

BRACKET, TORQUE STOP

5245043

$15.83

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

8

Bolt

7518364

$1.59

8

Bolt

7518364

$1.59

9

WASHER, FLAT

7555823

$3.99

9

WASHER, FLAT

7555823

$3.99

10

Mount, Rubber, Rear

3021119

Unavailable

11

Cable, Black, Frame/Engine

4011546

$15.99

12

CLAMP, HOSE

7080451

$7.19

13

Boot, Intake

5413170

Unavailable

14

SCREW

7516734

$3.19

15

BRACKET, MOUNT, ENGINE, TOP

5250318

Unavailable

16

VALVE, CHECK

7052038

$10.51

17

HOSE

8450113-04

Unavailable

18

Guide, Throttle Cable

3131514

Unavailable

19

ASM., COVER AND O-RING

1202578

Unavailable

20

SCREW

3131515

$10.39

21

Shim, .080

5210760

Unavailable

21

Shim, .030

5211517

Unavailable

22

BUMPER-RUBBER,1/2" OD

5413087

$2.39

23

Bracket, Cab Extender

5250916

Unavailable

24

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

25

Mount, Rear, Black

1015648-329

$49.59

26

SCREW

7518648

$7.19
