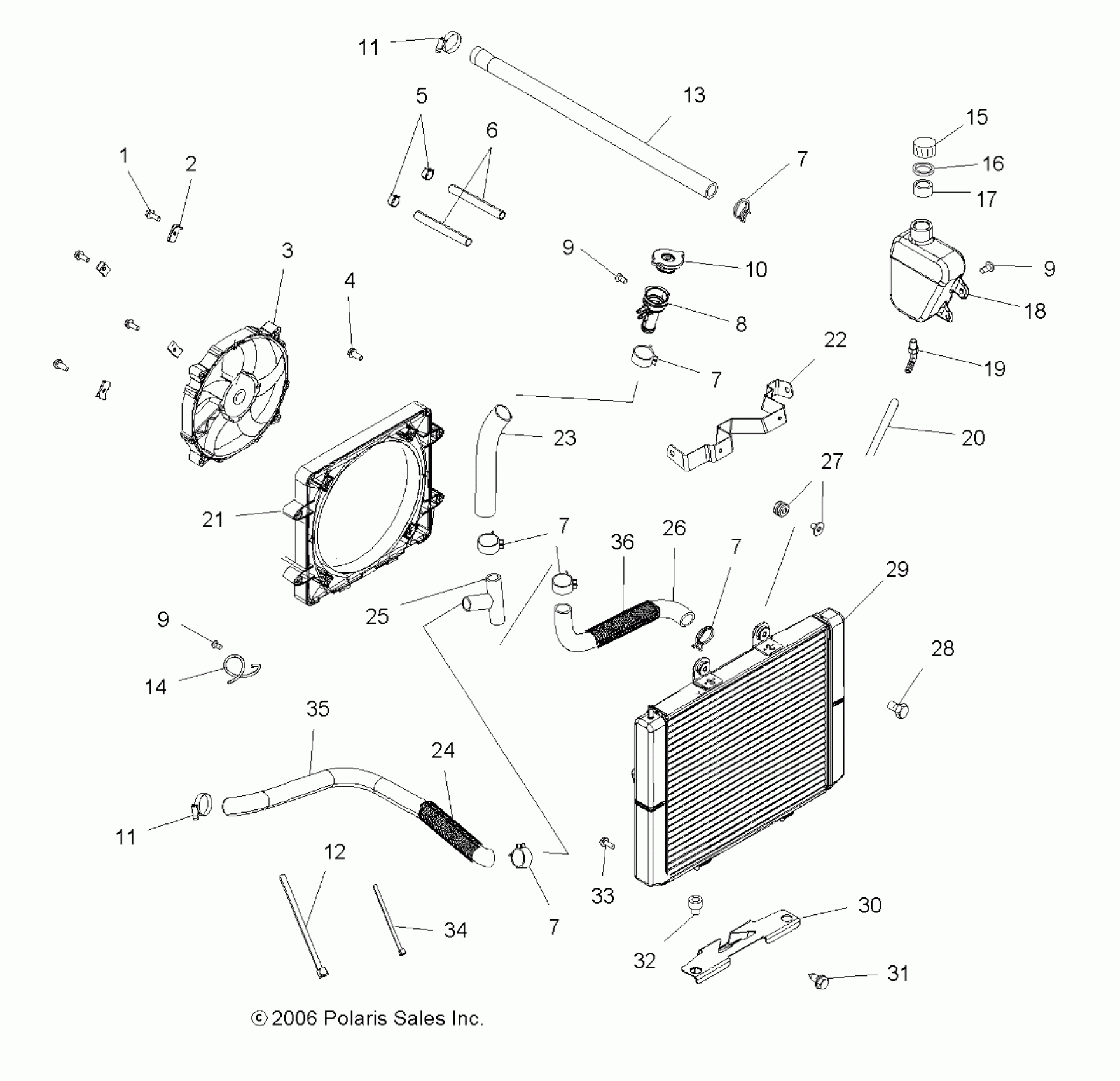

Polaris SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU COOLING SYSTEM - A07TH76AU/TN76AF/AL/AU (49ATVCOOL07X2800) Diagram

#

Description
Price

1

Bolt

7517975

$5.59

2

U-Clip

7547197

$6.23

3

Fan, 11 Inch

2410901

Unavailable

4

Screw w/Washer

7547220

$5.99

5

HOSE CLAMP, RED

7080003

$1.49

6

Hose

8450120

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7518196

$1.49

9

Screw

7518196

$1.49

9

Screw

7518196

$1.49

10

Cap, Pressure

1240044

Unavailable

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

Hose, Engine, Upper

5413169

$40.46

14

Retainer, Hose [If built before 2/01/07]

7042089

$7.03

14

Retainer, Hose [If built after 2/01/07]

7043335

$2.47

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

TANK-SURGE

5436936

$75.99

19

FITTING, 90 DEGREE

7052065

$7.19

20

Line, Fuel

8450003-1525

$84.99

21

Shroud, Fan

5434853

Unavailable

22

Bracket, Radiator, Upper

5250769

$6.59

23

Hose, Filler Neck

5412857

Unavailable

24

Guard, Hose, 15 Inch

5521742

$9.91

25

T-Connector

7052342

$23.81

26

Hose, Lower Radiator

5412838

$32.95

27

ASM., GROMMET AND INSERT

5411975

$3.19

28

Screw

7515179

$2.39

29

Radiator

1240301

$437.13

30

SCREW

7517386

$1.49

31

Bracket, Radiator, Lower, Black

5247047-067

$74.99

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5413168

$52.60

36

Guard, Hose, 9 Inch

5521753

$5.75
