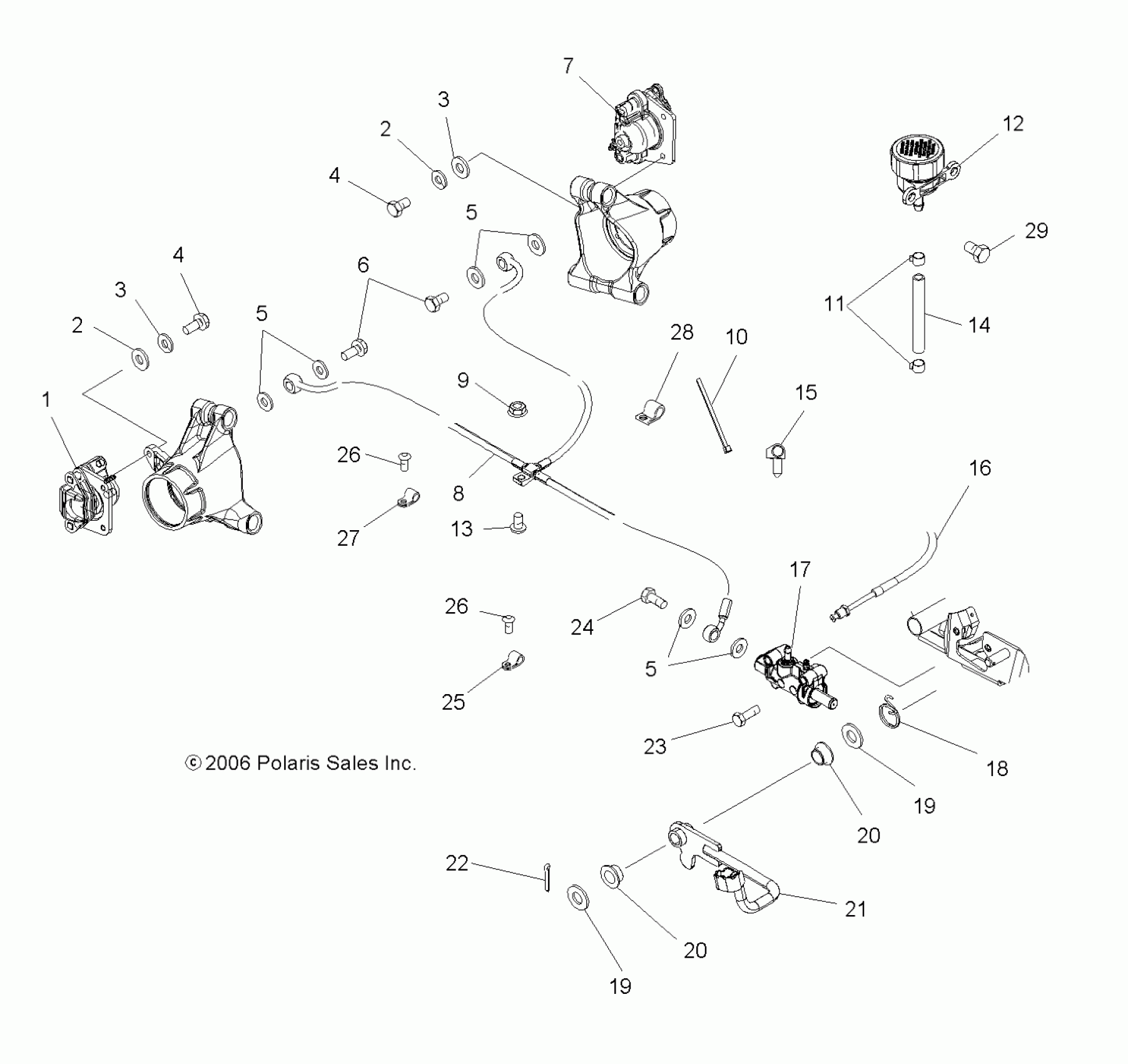

Polaris SPORTSMAN X2 800 EFI - A07TH76AU/TN76AF/AL/AU BRAKE, REAR and FOOT PEDAL - A07TH76AU/TN76AF/AL/AU (49ATVBRAKEFOOT07X2800) Diagram

#

Description
Price

1

Asm., Caliper, RH

1911217

Unavailable

2

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

2

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER, SPRING LOCK

7552901

$1.49

3

WASHER, SPRING LOCK

7552901

$1.49

4

SCREW

7512365

$1.49

4

SCREW

7512365

$1.49

5

SEAL

5413212

$4.79

5

SEAL

5413212

$4.79

5

SEAL

5413212

$4.79

6

BOLT, BANJO

1910499

$5.59

7

Asm., Caliper, LH

1911216

Unavailable

8

Line, Rear Brake

1910979

Unavailable

9

NUT, NYLOK

7542153

$1.59

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

HOSE CLAMP, RED

7080003

$1.49

12

Reservoir, Brake, Rear

1910982

Unavailable

13

Screw

7512240

$3.99

14

Hose, Reservoir

1911267-635

Unavailable

15

Clip

7670102

$2.39

16

Line, JB to FT, M/C

1910980

$95.99

17

ASM., MASTER CYLINDER

1911123

Unavailable

18

Spring, Torsion

7043276

Unavailable

19

WASHER

7555919

$4.99

19

WASHER

7555919

$4.99

20

BUSHING, PIVOT, PEDAL

5433189

$3.99

20

BUSHING, PIVOT, PEDAL

5433189

$3.99

21

Pedal, Brake

1910919-067

$63.99

22

PIN, COTTER

7661401

$1.49

23

SCREW

7512130

$3.99

24

BOLT, BANJO

1910499

$5.59

25

Clamp, Rubber Coated

7080573

$7.19

26

Screw

7512084

$1.49

26

Screw

7512084

$1.49

27

CLAMP

7080683

$2.39

28

Clamp, Vinyl Coated

7080880

$5.59

29

Screw

7517380

$15.03
