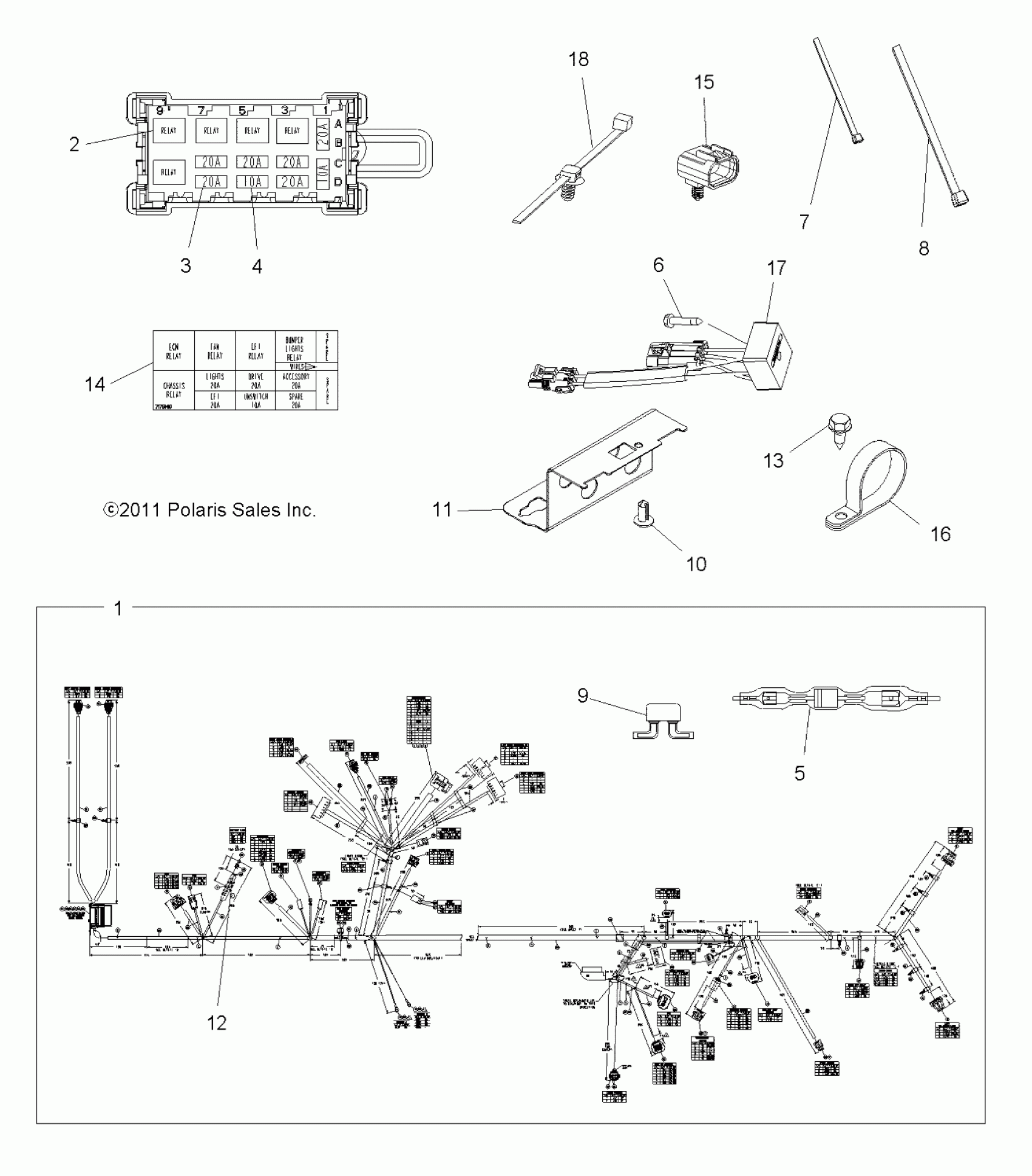

Polaris SPORTSMAN X2 550 - A12TN55AA/AZ ELECTRICAL, HARNESS - A12TN55AA/AZ (49ATVHARNESS12SPX2550) Diagram

#

Description
Price

-

Kit, Harness, Resistor Module [For Gear Position]

2204890

$127.99

1

COVER-RELAY/FUSE CENTER

5438758

$11.32

1

KIT, HARNESS, TPS

2878498

$113.32

1

Harness, Main [Incl. 1-5,9,12,14, Cover, All Kits]

2411464

$869.99

2

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

SCREW

7518418

$3.99

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

BREAKER, CIRCUIT, 10 AMP, SEALED

2410692

$24.27

10

CLIP, PUSH ON

7670125

$7.99

11

BRACKET, FUSE BLOCK

5253502

$6.39

12

Kit, Fusible Link, 1.0 mm

2202670

$35.99

12

Kit, Fusible Link, .8 MM

2202607

$39.99

13

Screw

7512095

$4.79

14

Label, Fuse Box

7175140

Unavailable

15

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

16

CLAMP-HOSE

7080807

$9.59

17

RELAY, SOLID STATE, 9 AMP

4012829

$71.99

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
