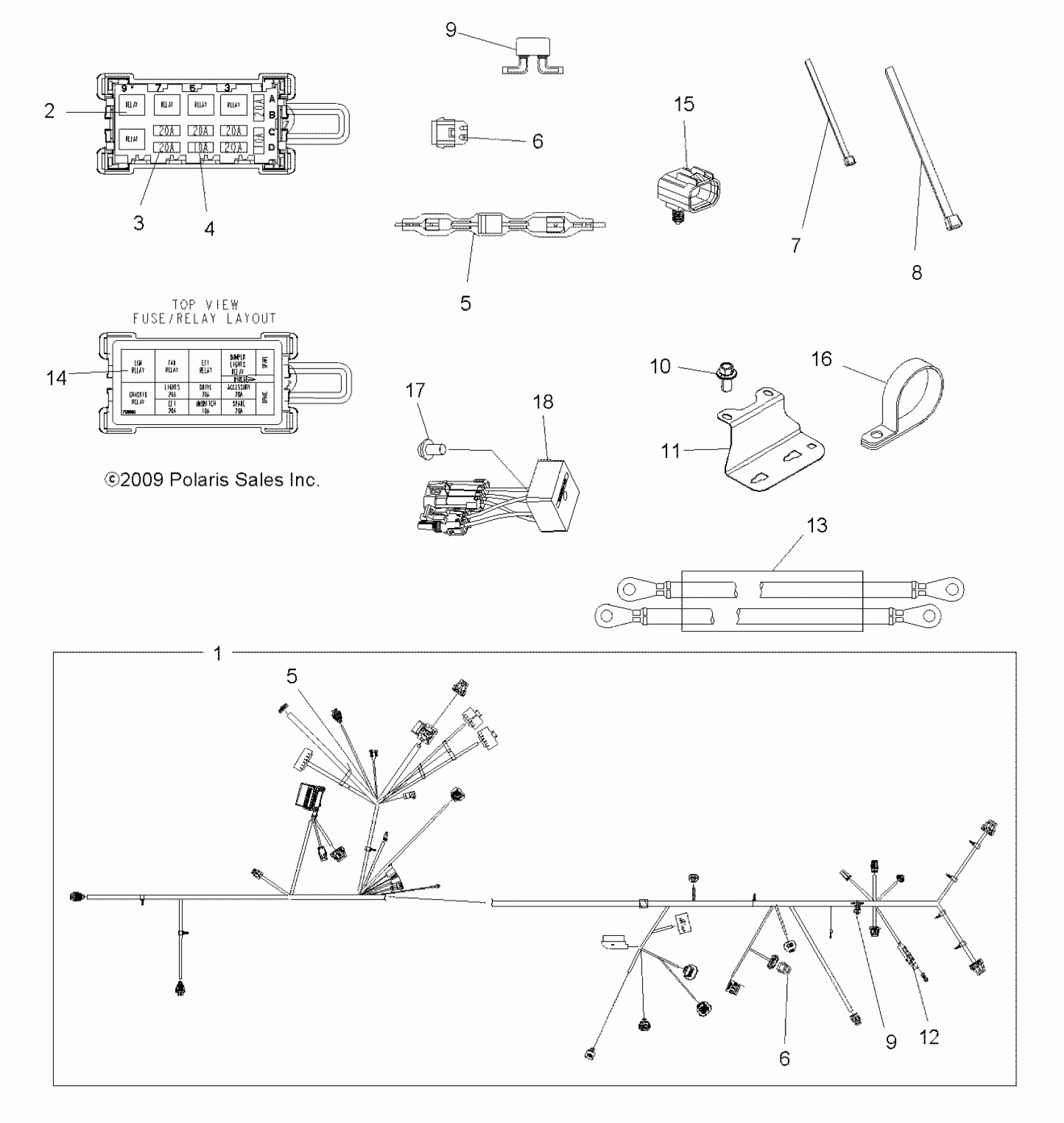

Polaris SPORTSMAN X2 550 - A10TN55AL/AX ELECTRICAL, HARNESS - A10TN55AL/AX (49ATVHARNESS10SPXPX2550) Diagram

#

Description
Price

1

KIT, HARNESS, TPS

2878498

$113.32

1

Harness, Main [Incl. 1-6,9,12,14, All Kits]

2411414

$884.99

2

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

5

DIODE, 6AMP

2411035

$51.99

6

Kit, Harness, Resistor Module

2204890

$127.99

6

Kit, Harness, Resistor Module

2204890

$127.99

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

Breaker, Circuit, 8 AMP, Sealed

2411228

Unavailable

9

Breaker, Circuit, 8 AMP, Sealed

2411228

Unavailable

10

SCREW

7518513

$4.79

11

Bracket, Mount, Fuse Block

5250452

$13.99

12

Kit, Fusible Link, .8 MM

2202607

$39.99

12

Kit, Fusible Link, 2.0 mm

2203632

$35.99

13

Harness, Winch, Pre-Wire

2411209

$62.39

14

Label, Fuse Box

7175140

Unavailable

15

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

16

CLAMP-HOSE

7080807

$9.59

17

SCREW

7518418

$3.99

18

RELAY, SOLID STATE, 9 AMP

4012829

$71.99
