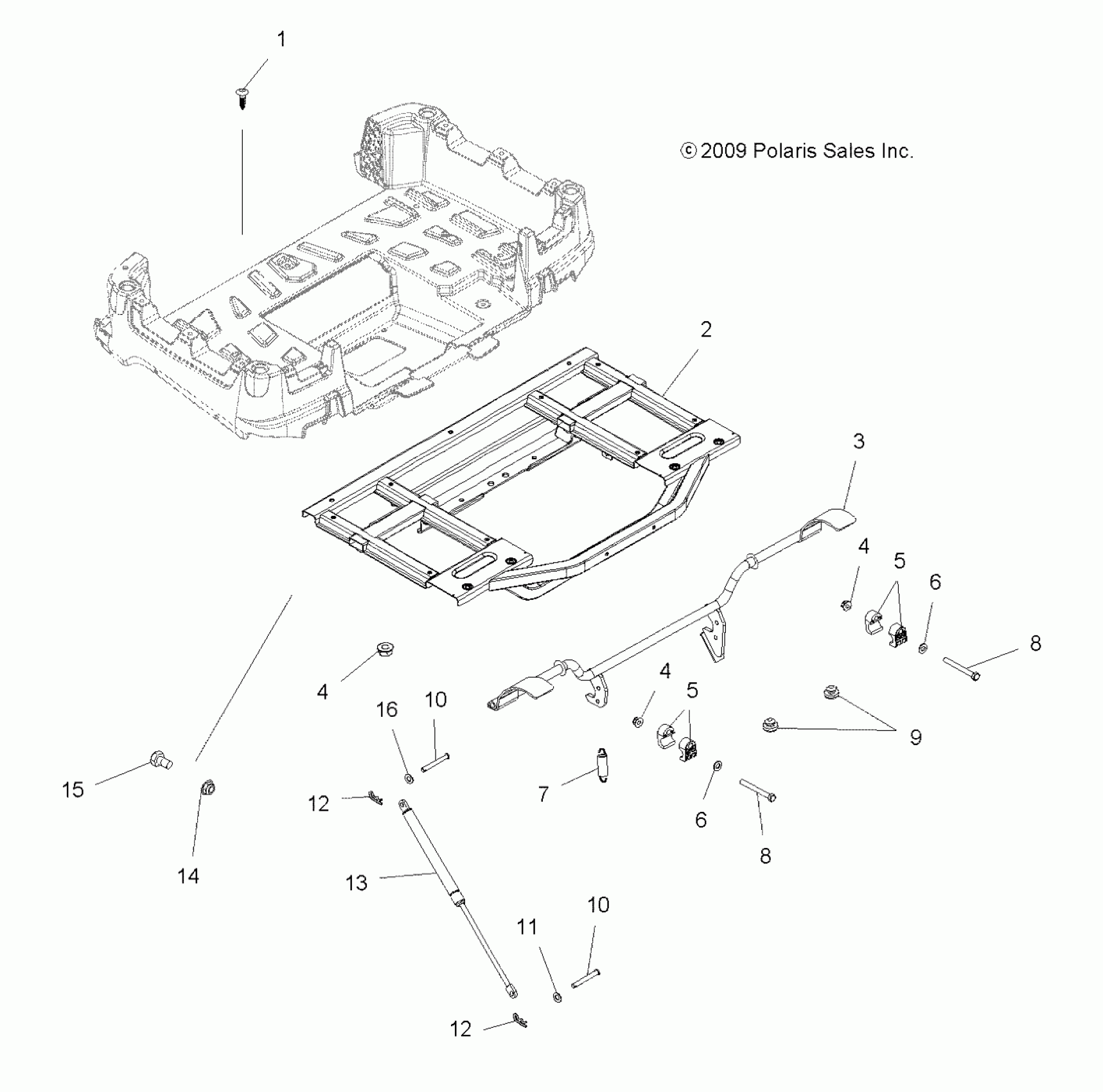

Polaris SPORTSMAN X2 550 - A10TN55AL/AX BODY, BOX FRAME and LATCH - A10TN55AL/AX (49ATVBOX10SPX2550) Diagram

#

Description
Price

1

SCREW

7518235

$1.59

2

Frame, Box, Black

1016843-329

$635.54

3

Latch, Box, Rear, Black

1016825-067

$182.54

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

5

BUSHING-BOX,LATCH

5434226

$3.99

5

BUSHING-BOX,LATCH

5434226

$3.99

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

SPRING-EXHAUST

7041687

$5.65

8

Screw

7515346

$5.59

8

Screw

7515346

$5.59

9

BUMPER-RUBBER

5412067

$3.99

10

PIN, CLEVIS

7661163

$3.99

10

PIN, CLEVIS

7661163

$3.99

11

SPACER

7556373

$3.19

12

PIN, HITCH

7661644

$2.39

12

PIN, HITCH

7661644

$2.39

13

SHOCK, DUMP BOX

7041725

$67.99

14

Nut, Flange

7547180

$2.39

15

Screw

7518278

$8.99

16

Spacer

7556091

$3.99
