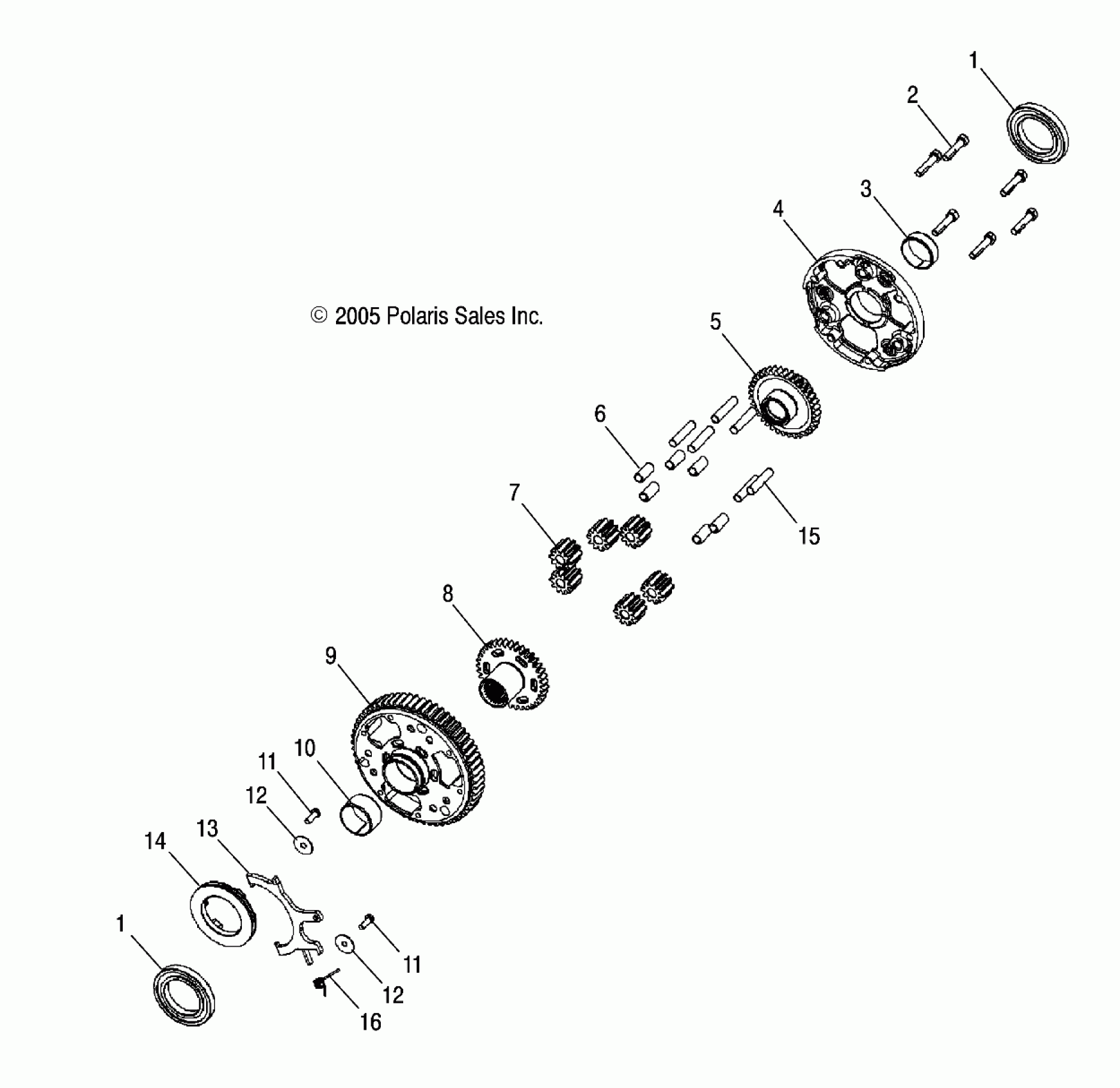

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA TRANSMISSION, DIFFERENTIAL - A07TH50EA (4999204069920406D07) Diagram

#

Description
Price

-

Asm., Gearcase

1332533

Unavailable

1

BEARING, BALL

3234275

$27.99

1

BEARING, BALL

3234275

$27.99

2

SCREW

3234267

$7.19

3

BEARING, PLAIN

3234241

$15.99

4

Cover, Subassembly [Incl. 3]

3234471

$203.99

5

Side Gear, 36T, Subassembly

3234363

$219.99

6

Bearing, Plain

3234239

$15.99

7

GEAR SUBASSEMBLY [Incl. 6]

3234469

$67.99

8

Side Gear, 36T, Disconnect,

3234362

$283.99

9

Carrier, Subassembly [Incl. 10]

3234470

$259.99

10

Bearing

3234240

Unavailable

11

Screw, Torx Pan

3234086

$5.59

11

Screw, Torx Pan

3234086

$5.59

12

Washer

3234447

Unavailable

12

Washer

3234447

Unavailable

13

FORK, SHIFT

3234285

$59.99

14

DOG, ENGAGEMENT

3234928

$67.99

15

PIN, DOWEL

3234238

$13.59

16

SPRING, TORSION

3234276

$7.99
