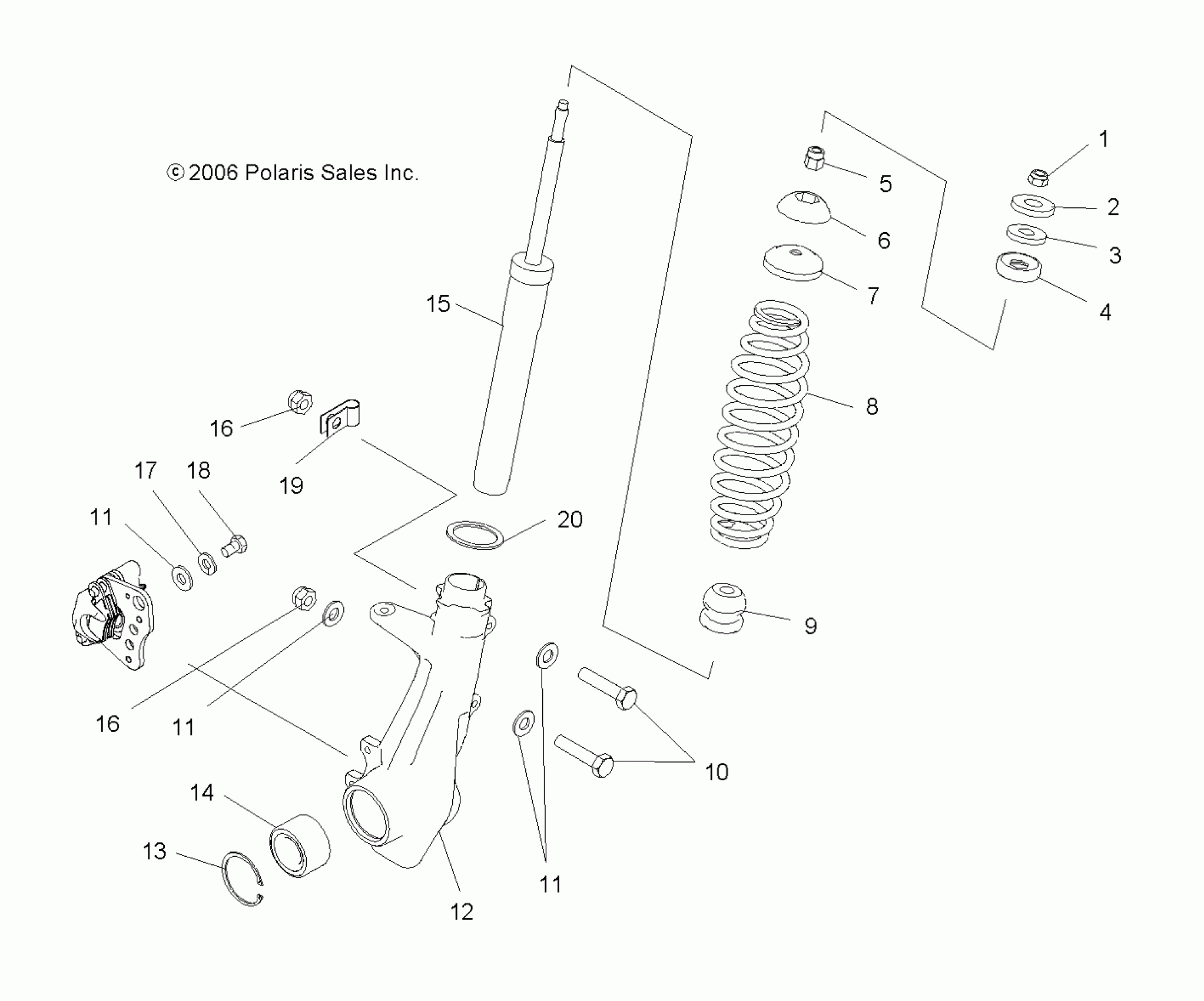

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA STRUT, FRONT - A07TH50EA (49ATVSTRUTX2500EFI) Diagram

#

Description
Price

1

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

2

WASHER

7555749

$1.49

3

SPACER-RUBBER

5810291

$3.99

4

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

5

SPACER

5132062

$19.99

6

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

7

RETAINER-SPRING,STRUT

5243364

$19.99

8

SPRING, COMPRESSION, BLACK

7043247-067

$91.99

9

BUMPER-MCU,17.8MM ID

5412665

$6.39

10

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Asm., Hubstrut, RH [Incl. 13,14 and from A-Arm/Strut Mounting page, 2,3,5]

1822826

$303.99

12

Asm., Hubstrut, LH [Incl. 13,14 and from A-Arm/Strut Mounting page, 2,3,5]

1822825

$303.99

13

RING, RETAINING

7710507

$2.39

14

Bearing

3514342

Unavailable

15

STRUT, FRONT

7041762

$123.99

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

WASHER, SPRING LOCK

7552901

$1.49

18

SCREW

7512365

$1.49

19

CLAMP-CABLE

7080367

$2.39

20

WASHER-2.06X2.62X.105-Y

5211115

$3.99
