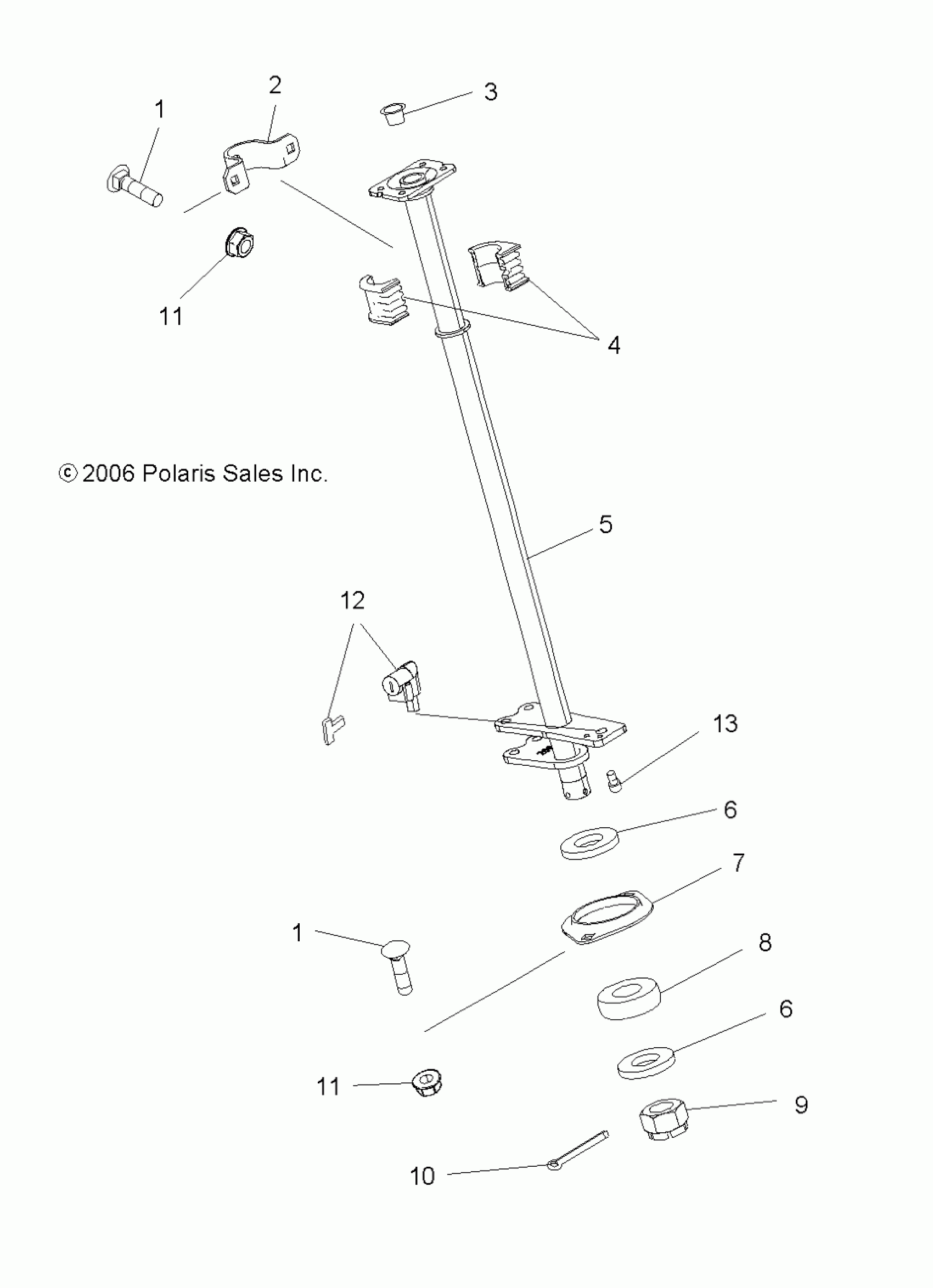

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA STEERING POST - A07TH50EA (49ATVSTEERINGX2QUAD) Diagram

#

Description
Price

1

BOLT

7517428

$2.39

1

BOLT

7517428

$2.39

2

Bracket, Upper, Bushing

5246732

$32.37

3

PLUG, STEERING POST

5435661

$4.79

4

Bushing, Upper

5433866

Unavailable

5

Post, Steering, Black

1015611-329

$104.76

6

Bushing

7556162

$3.99

6

Bushing

7556162

$3.99

7

Flangette

5222393

Unavailable

8

Bearing

3514352

Unavailable

9

Nut, Slotted, Hex

7547158

Unavailable

10

Pin, Cotter

7661633

Unavailable

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

12

Lock, Steering

7081224

Unavailable

13

SCREW

7518457

$2.39
