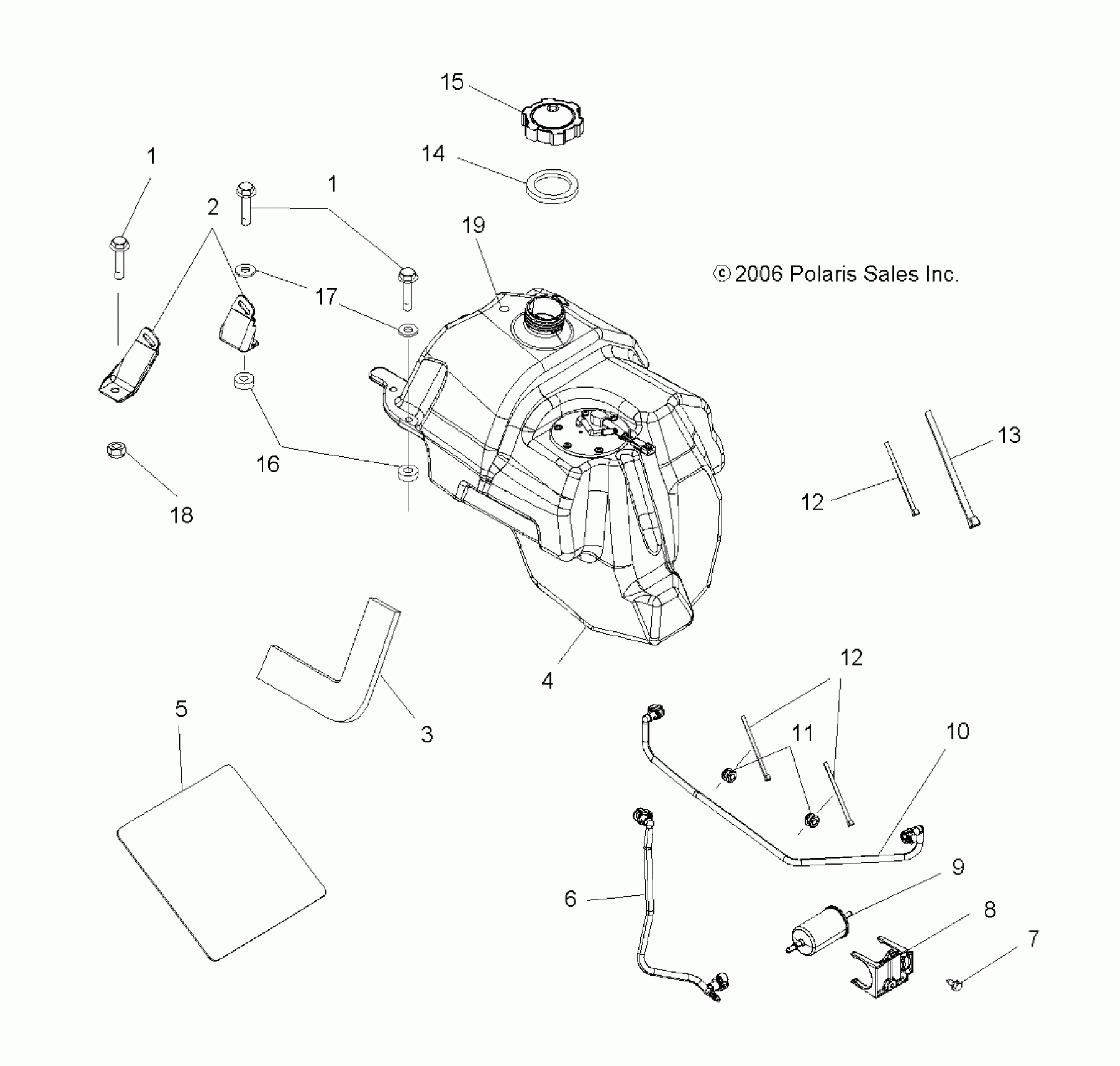

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA FUEL TANK - A07TH50EA (49ATVFUELX2QUAD) Diagram

#

Description
Price

1

SCREW

7517219

$4.79

1

SCREW

7517219

$4.79

2

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

2

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

3

SEAL, FOAM

5812265

$27.99

4

Asm., Tank, Fuel [If built after 2/09/07]

2520777

Unavailable

4

Screw

7518619

$3.19

4

Asm., Tank, Fuel [If built before 2/09/07]

2520698

Unavailable

5

Foil

5813024

Unavailable

6

Asm., Fuel Line, Tank to Filter

2520443

$43.99

7

Bolt

7512232

$1.49

8

Mount, Fuel Filter

5436013

$8.79

9

Filter, Fuel

2520464

$39.99

10

Asm., Fuel Line

2520551

$106.49

11

Grommet [If built after 2/01/07]

5413317

$2.39

11

Grommet [If built before 2/01/07]

5411774

Unavailable

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

GASKET

5812123

$5.65

15

Cap, Gas Tank

2520364

Unavailable

16

WASHER, NYLON

7555916

$1.59

17

Washer, Flat

7558301

$1.49

18

Nut, Nylok

7542122

$1.49

19

Plug, Tank

5436123

$4.75
