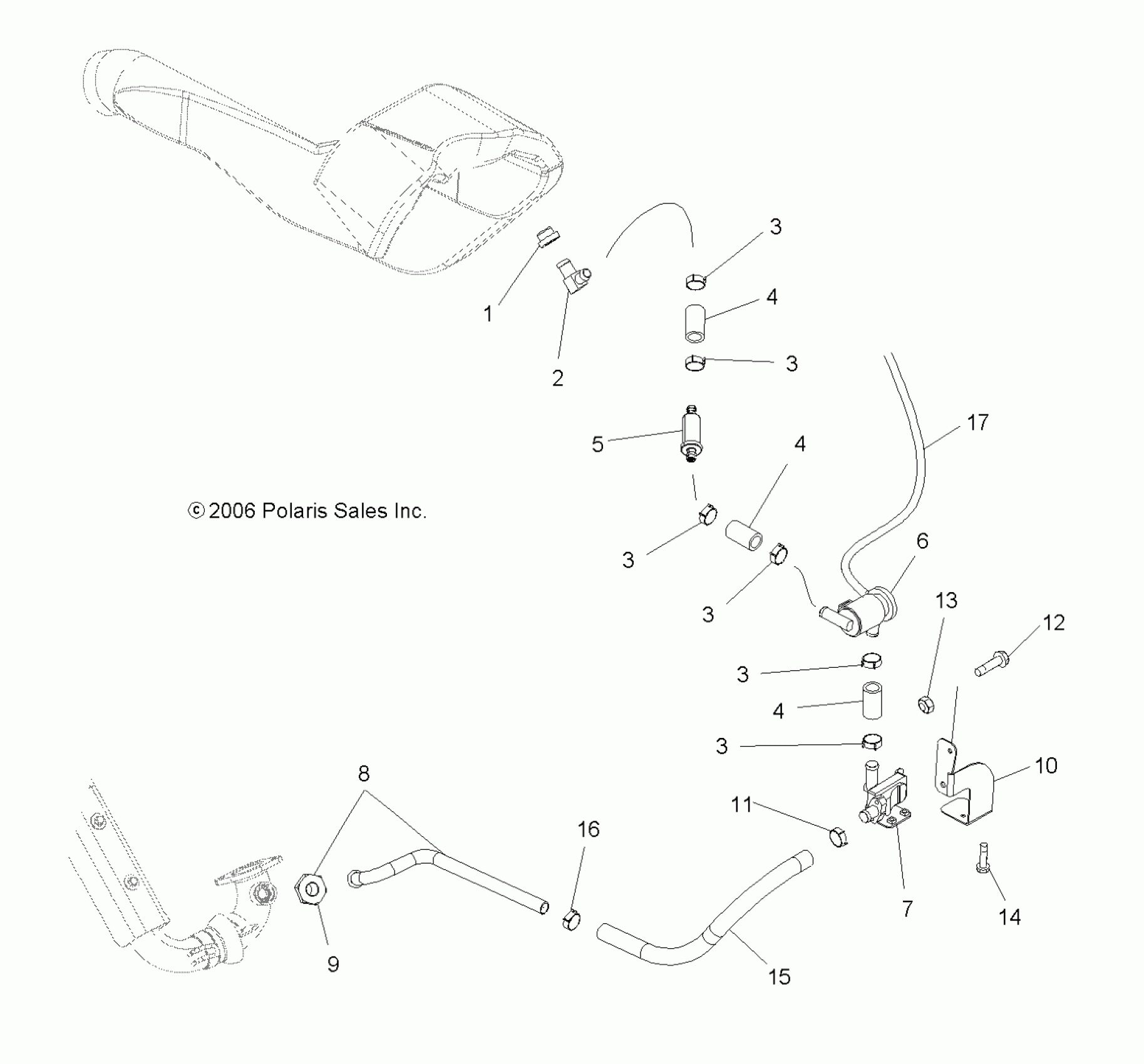

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA EXHAUST, AIR INJECTION SYSTEM - A07TH50EA (49ATVAIRINJECTX2QUAD) Diagram

#

Description
Price

1

Grommet

5412802

$7.14

2

Fitting, Elbow

7052383

$14.13

3

Clamp

7080810

$2.38

3

Clamp

7080810

$2.38

3

Clamp

7080810

$2.38

3

Clamp

7080810

$2.38

3

Clamp

7080810

$2.38

3

Clamp

7080810

$2.38

4

Hose, Formed

5411966

$11.32

4

Hose, Formed

5411966

$11.32

4

Hose, Formed

5411966

$11.32

5

Filter, Breather

2530029

$6.35

6

Filter, Air Valve

2520457

$7.84

7

Asm., Air Valve

1261439

$43.22

8

Asm., Tube, Air Injection

1261733

$185.99

9

Nut

7547374

$29.37

10

Bracket, Air Valve, Black

5250528-067

$25.40

11

Clamp, Hose Spring

7081026

$7.94

12

Screw

7511930

$2.38

13

Nut, Nylok

7541925

$0.79

14

SCREW

7518045

$10.32

15

Hose

5413221

$8.17

16

Clamp, Hose, Spring

7080699

$1.59

17

Line, Fuel

8450037-82

Unavailable
