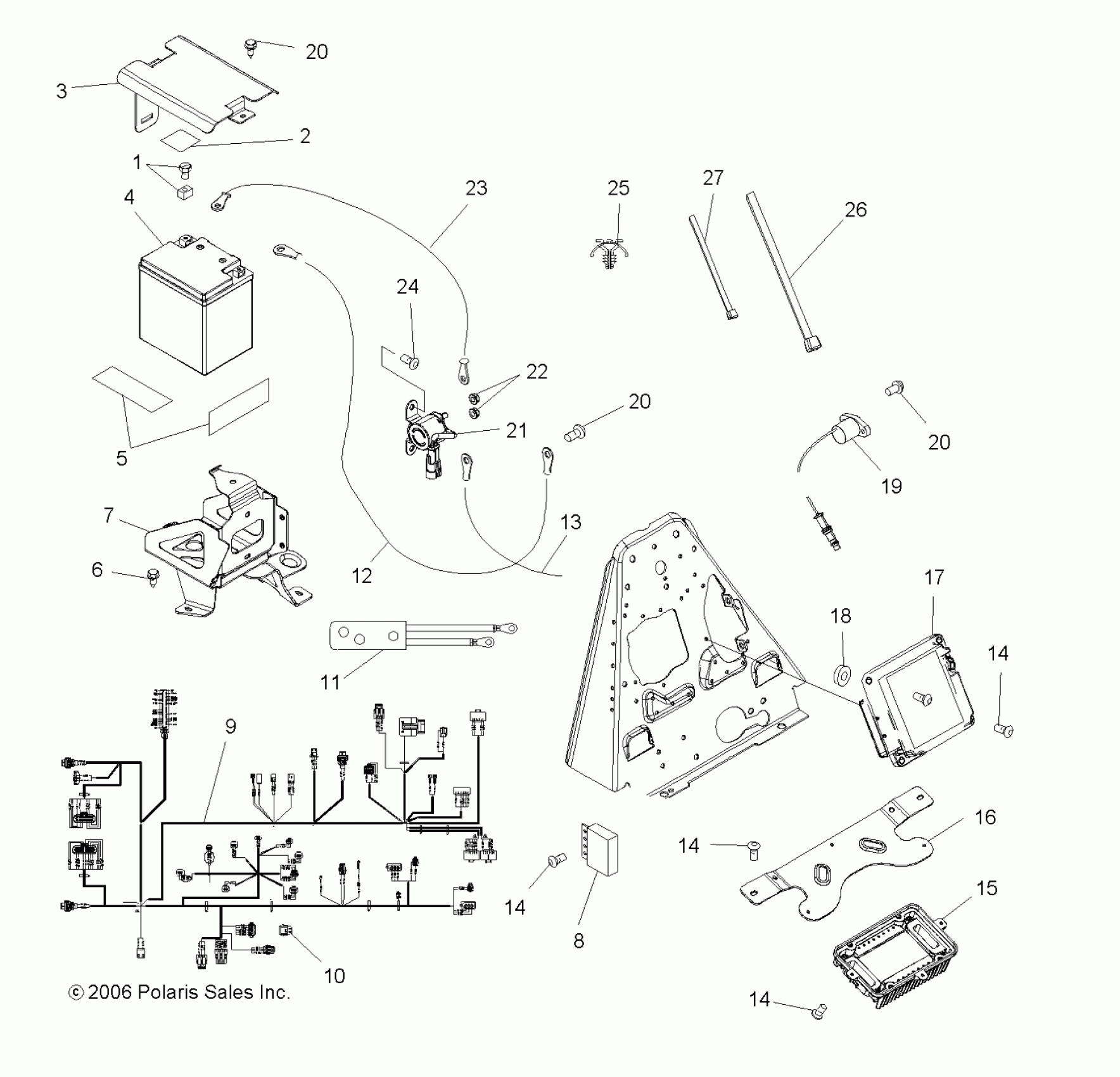

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA ELECTRICAL - A07TH50EA (49ATVELECTX2QUAD) Diagram

#

Description
Price

1

KIT, BATTERY BOLT

2202213

$3.79

2

Pad, Battery

5813165

Unavailable

3

Shield, Heat, Battery

5250933

$59.99

4

BATTERY, SEALED

4011224

Unavailable

5

PAD-BATTERY

5810290

$7.27

6

SCREW

7517386

$1.49

7

Box, Battery, Black

1015903-067

Unavailable

8

Module, Flash/Turn

4011553

$205.99

9

Kit, Fusible Link 1.0 mm

2202670

$35.99

9

Kit, Fusible Link .5 mm, Grey

2202147

$79.99

9

KIT, HARNESS, TPS

2878498

$113.32

9

Kit, Harness, Engine Air Temp

2875900

$123.19

9

Kit, Harness, Engine Map Sensor

2876315

$139.99

9

Kit, Harness, Engine Injector

2875901

$123.19

9

Harness, Main [Incl. 10, All Harness Kits, Fuse Link Kits]

2410752

$454.99

10

Kit, Harness, Resistor Module

2204890

$127.99

11

Harness, Winch Prewire

2410860

Unavailable

12

Cable, Battery/Frame

4011552

$27.99

13

Cable, Solenoid/Starter

4010093

$47.99

14

SCREW

7512024

$4.79

14

SCREW

7512024

$4.79

14

SCREW

7512024

$4.79

14

SCREW

7512024

$4.79

15

Module, Controller

4011657

$576.39

16

Bracket, Module

5249459

Unavailable

17

ECM, Service

4012443

Unavailable

18

Washer, Nylon

7555932

$2.39

19

COIL, IGNITION

4011834

Unavailable

19

Wire, Spark Plug

4011692

$79.99

20

Bolt

7512232

$1.49

20

Bolt

7512232

$1.49

20

Bolt

7512232

$1.49

21

Switch, Magnetic

4010947

Unavailable

22

NUT, FLANGE

7547270

$3.99

23

Cable, Battery/Solenoid

4011360

$23.19

24

Screw

7512084

$1.49

25

MOUNT, CABLE TIE

7080965

$7.19

26

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
