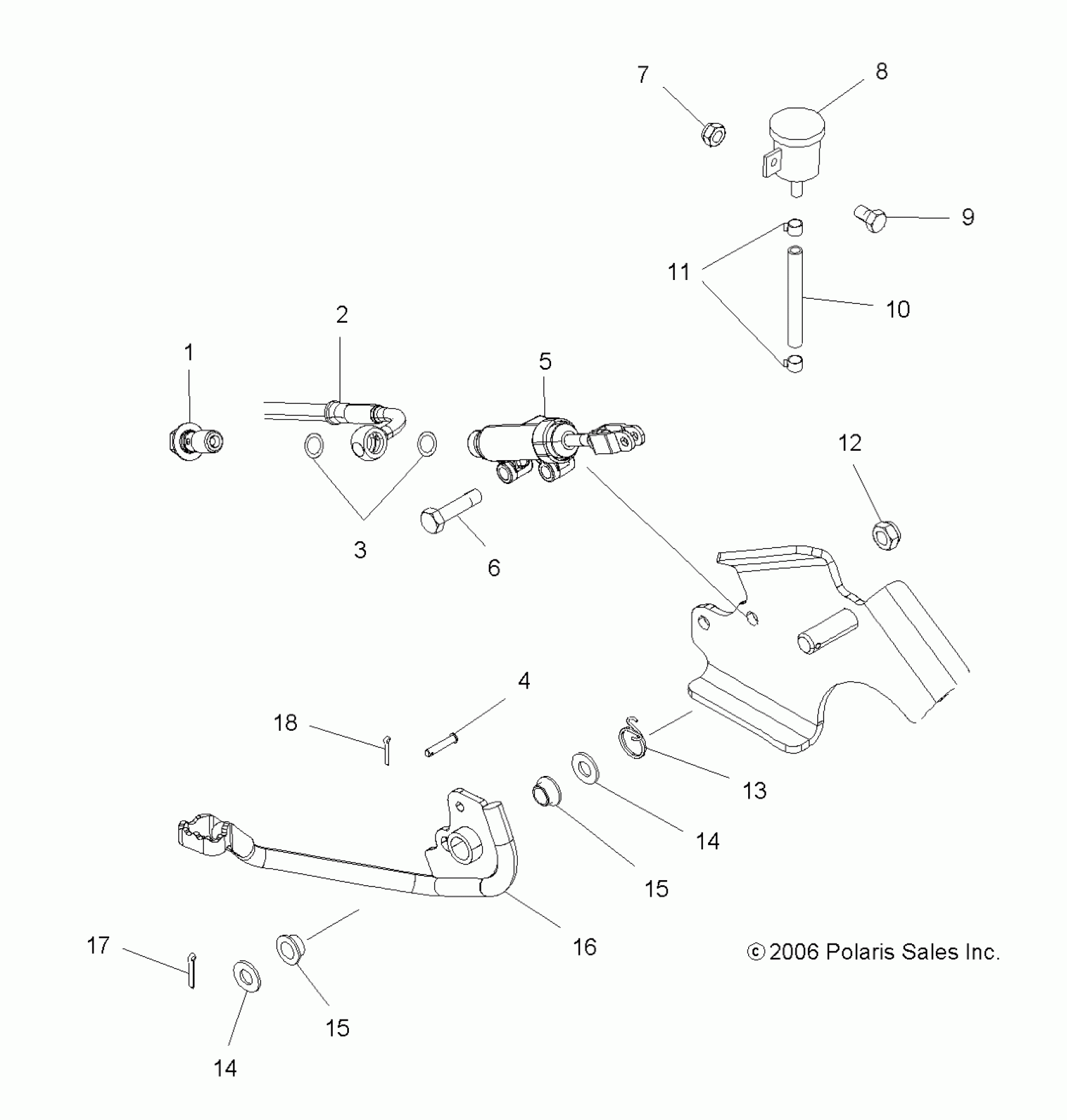

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA BRAKE, FOOT - A07TH50EA (49ATVBRAKEFOOTX2QUAD) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.56

2

Line, Brake, Foot to J/B

1911104

$47.62

3

SEAL

5413212

$4.84

4

Pin, Clevis

7661013

$5.56

5

Asm., Master Cylinder, Foot

1910995

$174.03

6

Screw

7515306

Unavailable

7

Nut, Nylok

7542122

$1.19

8

Asm., Reservoir, Brake, Rear

1910674

$36.41

9

Screw

7512240

$3.97

10

Hose, Reservoir

1911107

$5.71

11

HOSE CLAMP, RED

7080003

$1.19

12

NUT-5/16-18 NYLOK-Y

7542324

$0.79

13

Spring, Torsion

7043126

$1.83

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

Bushing, Pedal, Pivot

5433189

$3.97

15

Bushing, Pedal, Pivot

5433189

$3.97

16

Pedal, Brake, Black

1015631-067

$51.59

17

Pin, Cotter

7661011

$4.76

18

PIN, COTTER

7661401

$0.79
