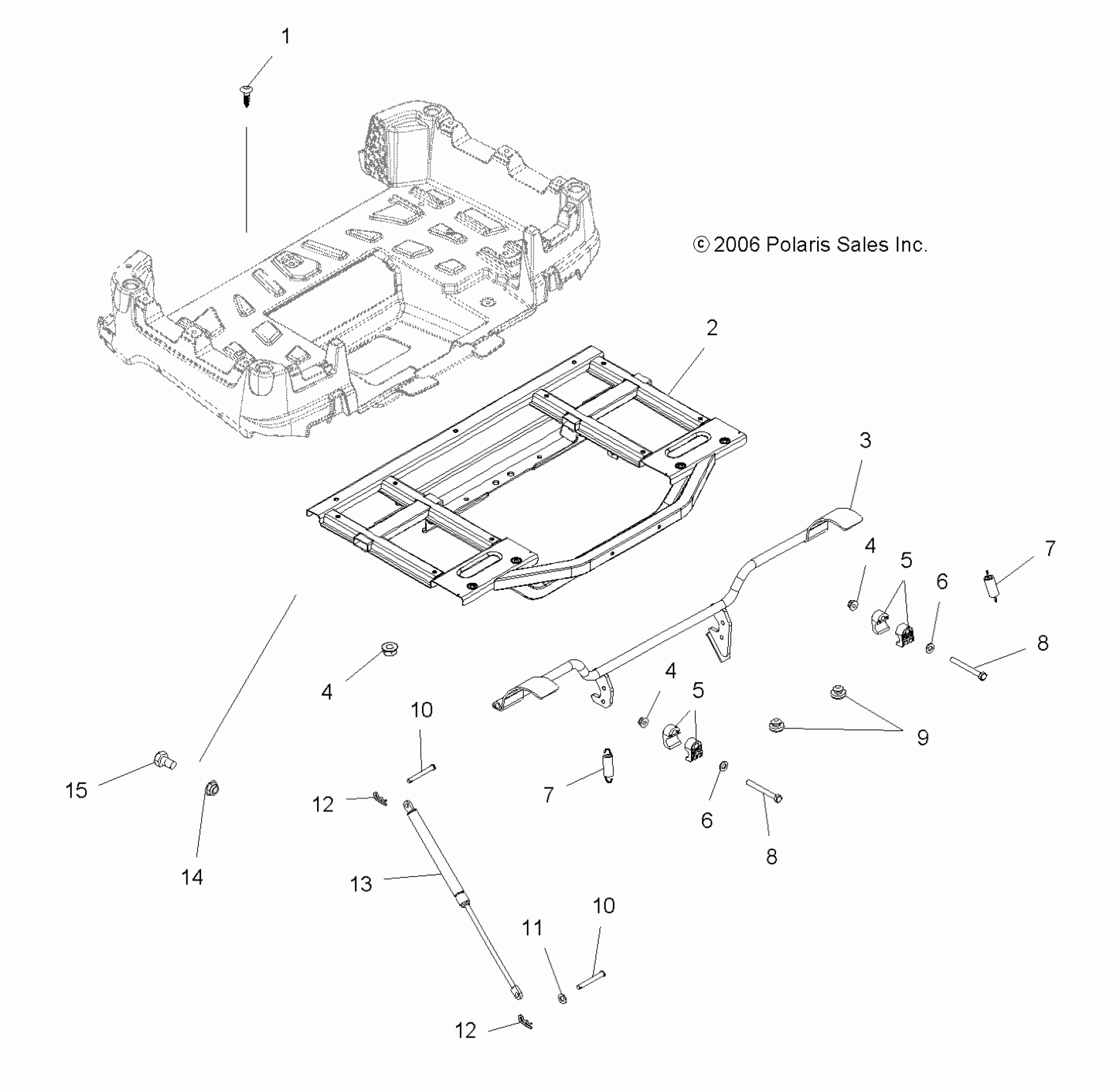

Polaris SPORTSMAN X2 500 EFI QUAD - A07TH50EA BOX FRAME - A07TH50EA (49ATVBOXX2500EFI) Diagram

#

Description
Price

1

SCREW

7518235

$1.59

2

Frame, Box

1015269-067

$608.99

3

Latch, Box

1015268-067

Unavailable

4

Nut, Flange

7592343

Unavailable

4

Nut, Flange

7592343

Unavailable

4

Nut, Flange

7592343

Unavailable

5

BUSHING-BOX,LATCH

5434226

$3.97

5

BUSHING-BOX,LATCH

5434226

$3.97

6

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

6

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

7

SPRING-EXHAUST

7041687

$6.46

7

SPRING-EXHAUST

7041687

$6.46

8

Screw

7515346

$5.56

8

Screw

7515346

$5.56

9

BUMPER-RUBBER

5412067

$3.97

10

PIN, CLEVIS

7661163

$3.97

10

PIN, CLEVIS

7661163

$3.97

11

SPACER

7556373

$3.17

12

PIN, HITCH

7661644

$2.38

12

PIN, HITCH

7661644

$2.38

13

Shock, Dump Box

7042268

$60.70

14

Nut, Flange, Lock

7542449

$3.97

15

Screw

7512492

$1.19
