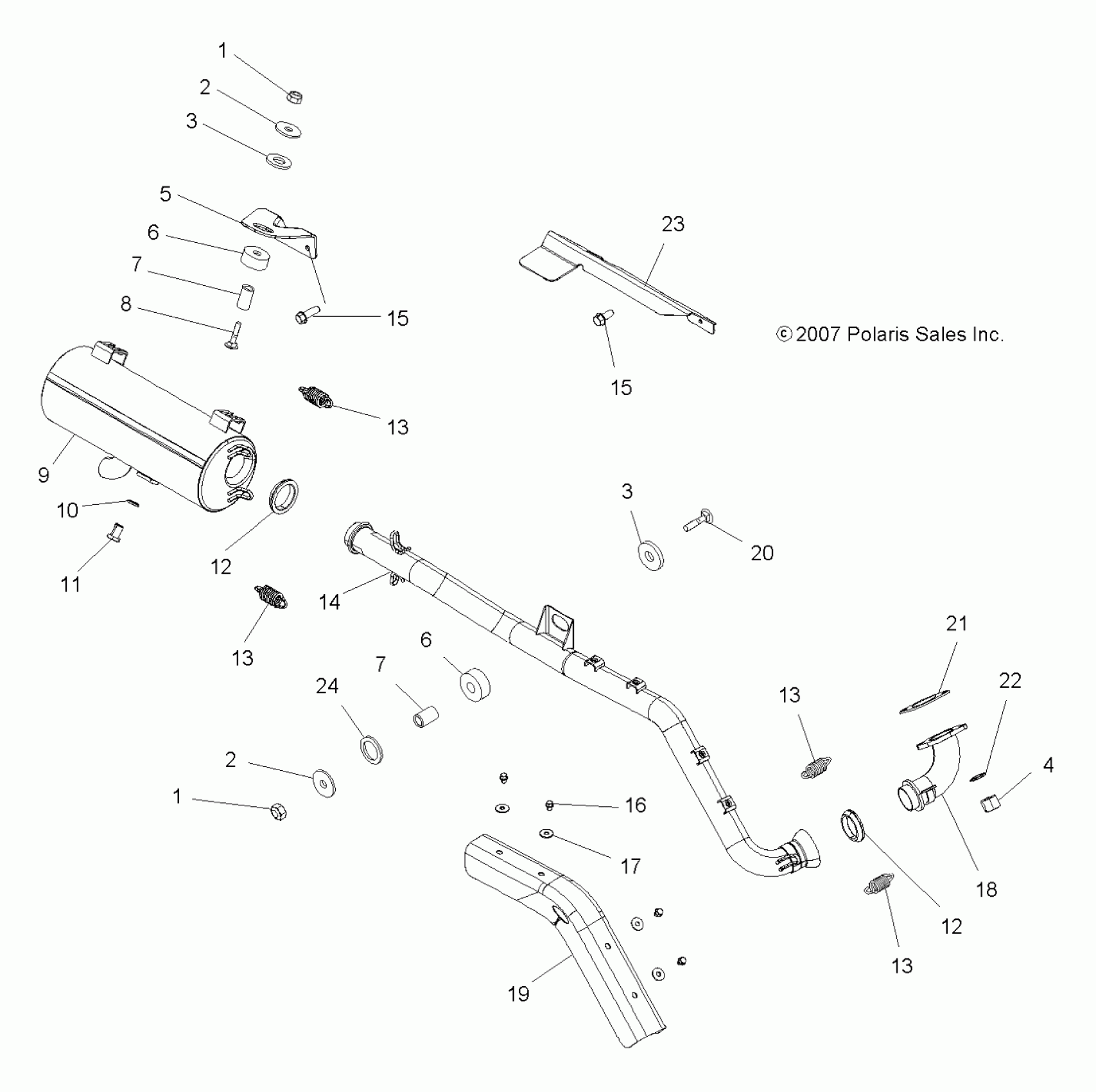

Polaris SPORTSMAN X2 500 EFI - A09TN50AX/AZ ENGINE, EXHAUST - A09TN50AX/AZ (49ATVEXHAUST08SPX25) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER, FLAT

7555716

$1.59

2

WASHER, FLAT

7555716

$1.59

3

WASHER, RUBBER

5410436

$1.59

3

WASHER, RUBBER

5410436

$1.59

4

Nut

3087199

Unavailable

5

Bracket, Exhaust Mount

5251092

$9.05

6

DAMPENER, VIBRATION

5412659

$3.97

6

DAMPENER, VIBRATION

5412659

$3.97

7

BUSHING

5010192

$6.35

7

BUSHING

5010192

$6.35

8

BOLT, CARRIAGE

7515316

$2.38

9

Silencer, Exhaust

1261611-489

Unavailable

10

WASHER, CLEAN OUT

7556230

$1.19

11

BOLT

7512666

$2.38

12

Seal, Exhaust

5243518

$28.32

12

Seal, Exhaust

5243518

$28.32

13

SPRING, EXHAUST

7041804

$8.89

13

SPRING, EXHAUST

7041804

$8.89

13

SPRING, EXHAUST

7041804

$8.89

13

SPRING, EXHAUST

7041804

$8.89

14

Pipe, Exhaust

1261698-489

Unavailable

15

SCREW

7515399

$1.19

15

SCREW

7515399

$1.19

16

Screw

7515197

$1.19

17

Washer

7555935

$2.38

18

Manifold

1261697-489

Unavailable

19

Shield, Heat Exhaust

5250373

$29.99

20

Bolt, Carriage

7518660

Unavailable

21

GASKET

3085075

$40.46

22

Washer, Lock

3080051

$3.17

23

Shield, Heat Exhaust

5251564

Unavailable

24

Bushing

7556401

Unavailable
