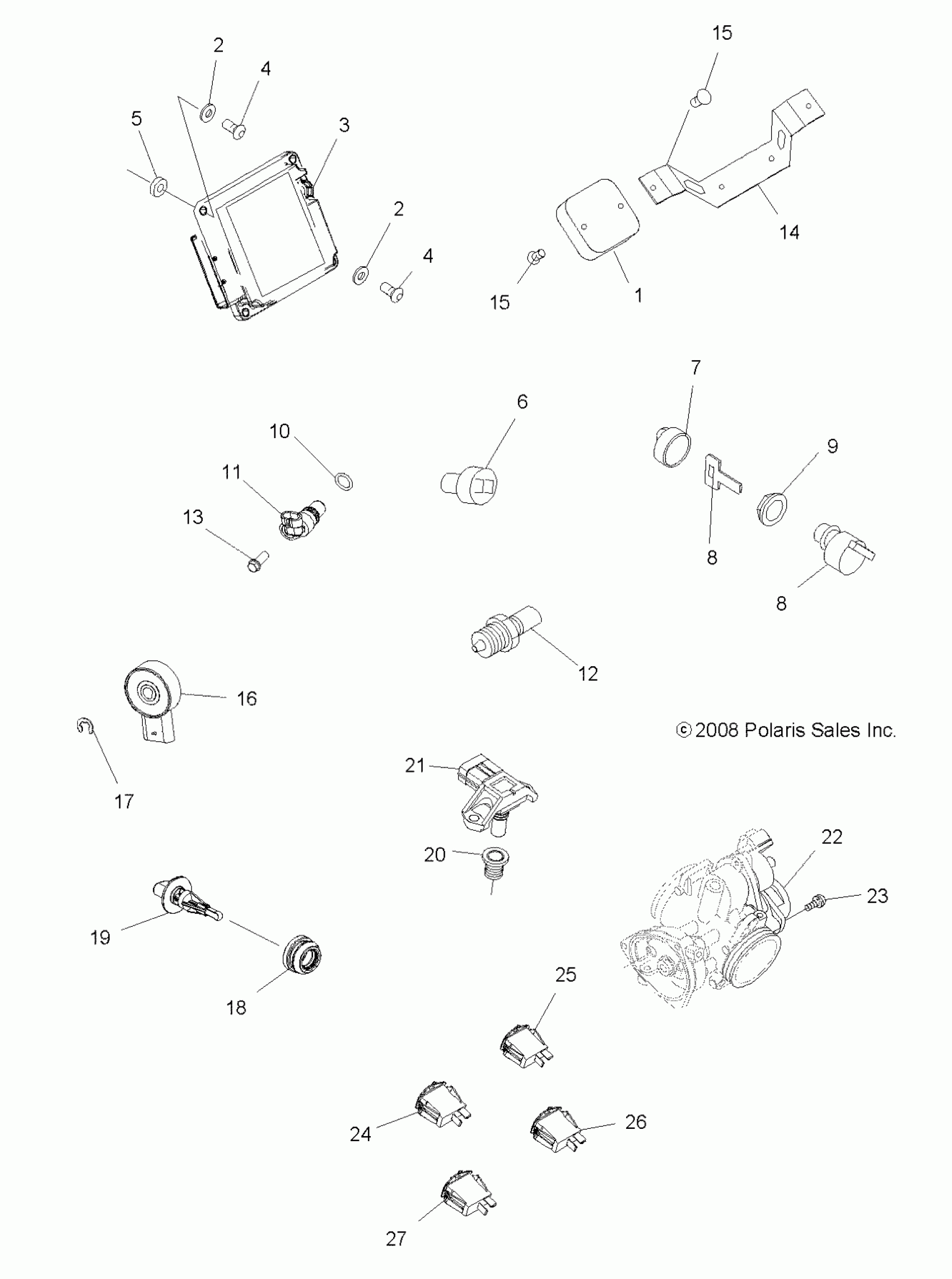

Polaris SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ ELECTRICAL, SWITCHES and SENSORS and ECM - A08TN50AT/AX/AZ (49ATVELECT08SPX2) Diagram

#

Description
Price

1

Regulator

4012384

$337.24

2

WSHR-.194X.475X.049 ZTB

7555746

$0.79

2

WSHR-.194X.475X.049 ZTB

7555746

$0.79

3

ECM, Service

4012443

Unavailable

4

Screw

7518552

$3.97

4

Screw

7518552

$3.97

5

Washer, Nylon

7555932

$2.38

6

SWITCH [BRAKE LIGHTS]

4110164

$204.24

7

KEY SWITCH KEY COVER

5433534

$13.75

8

Switch, Key, 3 Position [Incl. Key]

4012165

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

8

Switch, Key, 3 Position [Incl. Key]

4012165

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

$14.56

8

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

9

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

10

O-RING

3234302

$7.27

11

SENSOR-SPEED,TRANS

4013908

$109.27

12

Sensor, Water Temperature

3089892

$105.22

13

SCREW

3234247

$5.56

14

Bracket, Voltage Regulator

5248725

Unavailable

15

SCREW

7512024

$4.76

15

SCREW

7512024

$4.76

16

SWITCH, ROTARY

3233835

$142.49

17

RING, RETAINING

3233834

$10.32

18

Grommet, Air Temp Sensor

5436346

$4.76

19

Sensor, Air Temp

2410687

$153.79

20

Grommet

3089902

Unavailable

21

Sensor, Air Pressure

3089895

$199.49

22

SENSOR, THROTTLE POSITION

3140173

$232.74

23

SCREW

3131628

$5.69

24

Switch, Turf, On/Off

4011966

Unavailable

25

Switch, Worklight, On/Off [AT]

4011074

$49.99

26

Switch, hnad Warner, Hi/Lo [AT]

4011963

Unavailable

27

Switch, Thumb Warmer, Hi/Lo [AT]

4010964

$64.75
