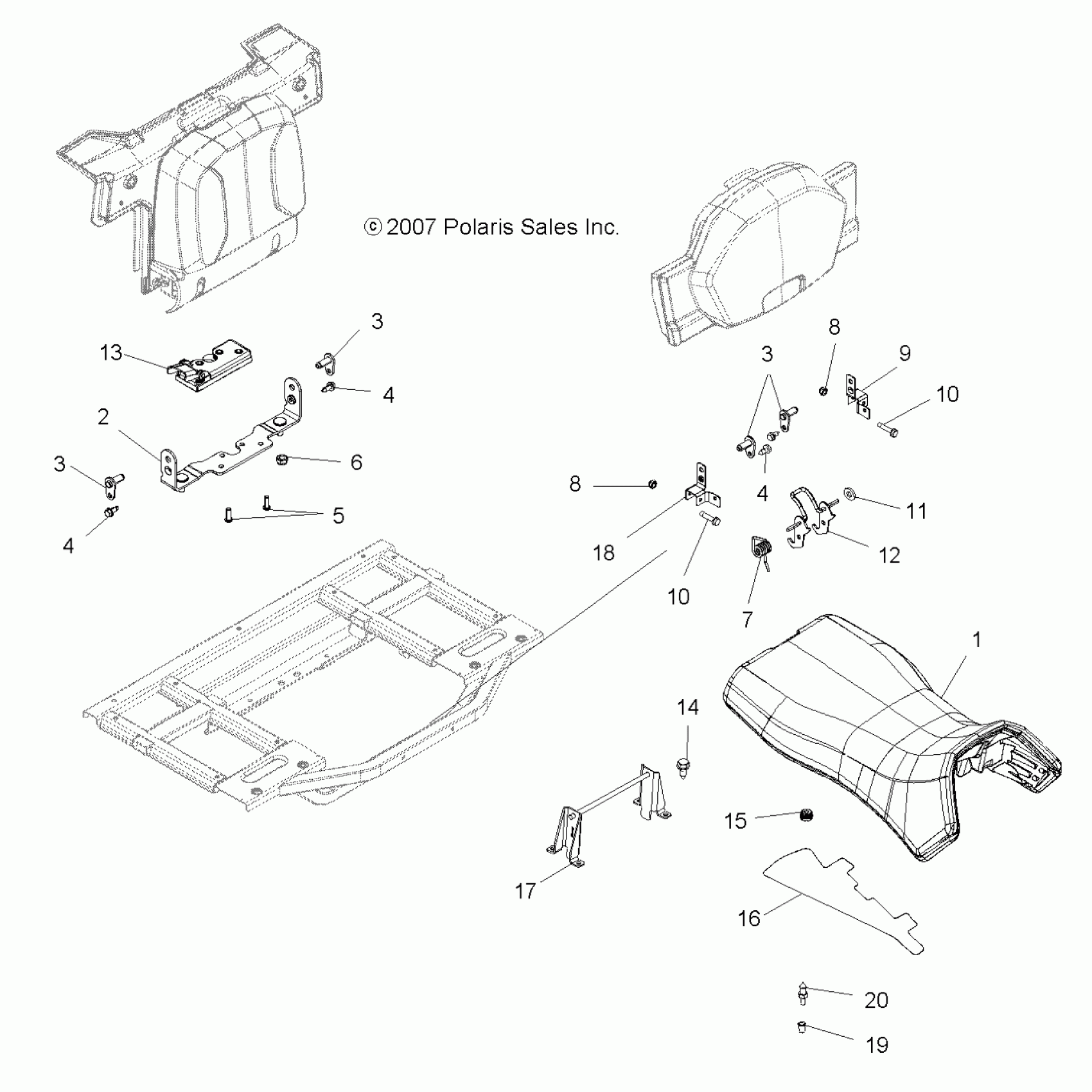

Polaris SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ BODY, SEAT and OPERATOR - A08TN50AT/AX/AZ (49ATVSEAT08SPX25) Diagram

#

Description
Price

1

Asm., Seat, Operator, Black [Incl. 15,16][AX][AZ]

2684133-070

Unavailable

1

Asm., Cover w/White Decal [AX][AZ]

2684134

$143.99

1

Asm., Seat, Operator, Black [AT]

2684135-070

Unavailable

1

Asm., Cover, Gold Decal [AT]

2684136

Unavailable

2

PIVOT, PASSENGER SEAT

1015414-067

Unavailable

3

WELD-PIN,PIVOT

1015413

$23.99

3

WELD-PIN,PIVOT

1015413

$23.99

3

WELD-PIN,PIVOT

1015413

$23.99

4

SCREW

7517386

$1.49

4

SCREW

7517386

$1.49

4

SCREW

7517386

$1.49

5

SCREW

7515177

$3.19

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

Spring

7041370

$9.59

8

NUT

7542122

$1.49

8

NUT

7542122

$1.49

9

BRACKET-PIVOT,SEAT,LH

5250563

$11.43

10

SCREW

7512130

$3.99

10

SCREW

7512130

$3.99

11

Spacer

7556091

$3.99

12

Rod, Passenger Seat, Black [Built 10/22/07 and Before]

1015398-067

$36.41

12

Rod, Passenger Seat, Black [Built 10/23/07 and After]

1016335-067

$35.99

13

LATCH-SEAT,PASS,BACK

7081325

$83.99

14

Screw

7518239

$4.79

15

GROMMET

5412994

Unavailable

16

Foil, Seat Base

5813059

$5.59

17

Lockout, Passenger

1015355-067

Unavailable

18

BRACKET-PIVOT,SEAT,RH

5250564

$11.43

19

Insert-1/4-20

7542143

$5.59

20

Pin, Seat Latch

5910306

$10.39
