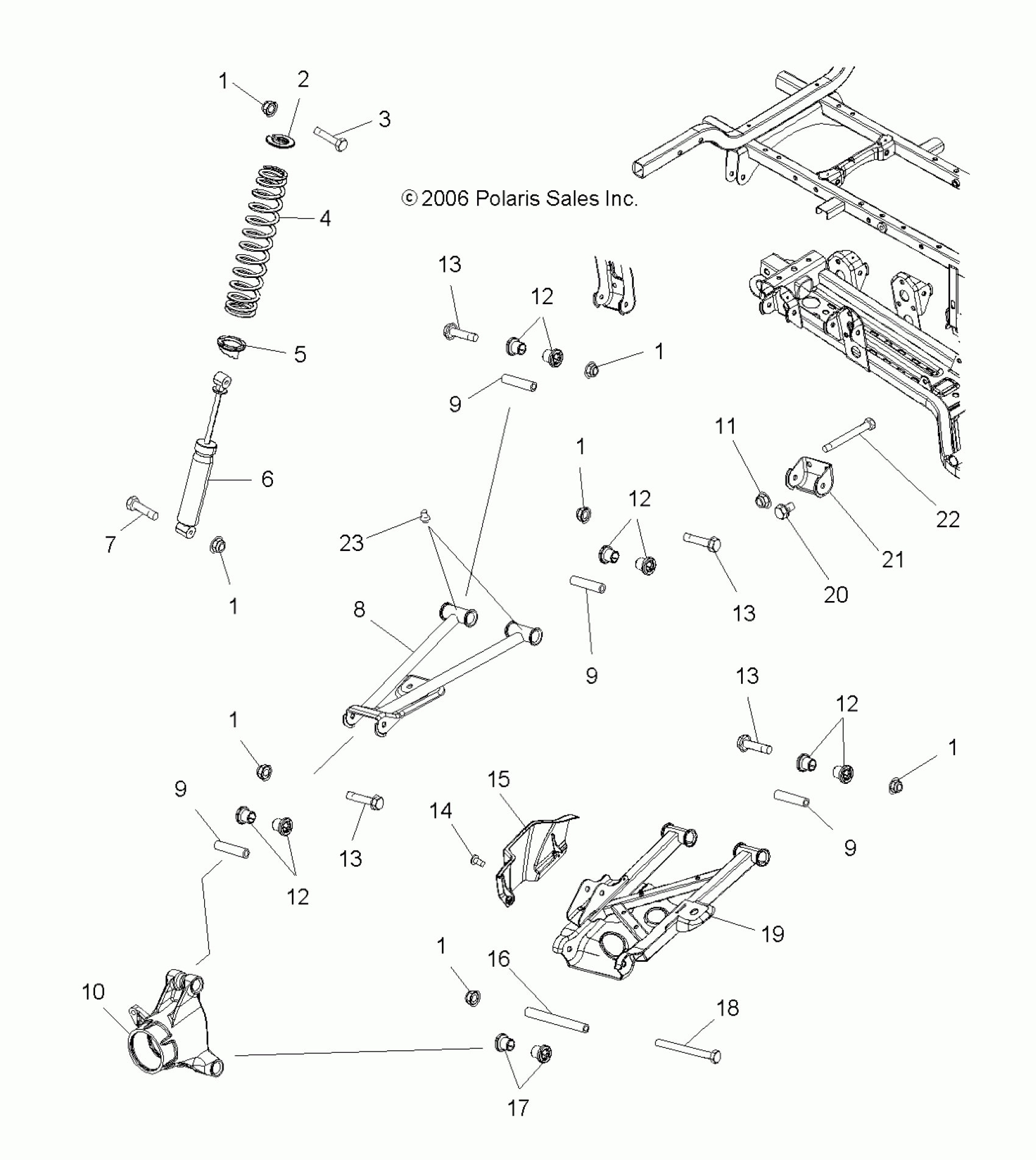

Polaris SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU SUSPENSION, REAR - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU (49ATVSUSPRRX2500EFI) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

Retainer, Spring

5241147

$10.03

3

Screw

7515433

$1.59

4

Spring, Compression, Rear, Black

7043242-067

Unavailable

5

CAM, ADJUSTING, SPRING

5630551

$31.99

6

Shock, Rear

7043140

Unavailable

7

Screw

7515415

$1.49

8

Arm, Control, Upper, RH, Black

1015849-067

Unavailable

8

Arm, Control, Upper, LH, Black

1015848-067

Unavailable

9

Shaft, A-Arm, Short

5134882

$31.99

9

Shaft, A-Arm, Short

5134882

$31.99

9

Shaft, A-Arm, Short

5134882

$31.99

9

Shaft, A-Arm, Short

5134882

$31.99

10

Carrier, Wheel Bearing, LH

5134984

$103.99

10

Carrier, Wheel Bearing, RH

5134985

$103.99

11

Nut, Flange

7547180

$2.39

12

Bushing, Control Arm

5436832

$2.38

12

Bushing, Control Arm

5436832

$2.38

12

Bushing, Control Arm

5436832

$2.38

12

Bushing, Control Arm

5436832

$2.38

13

Screw

7518523

$3.99

13

Screw

7518523

$3.99

13

Screw

7518523

$3.99

13

Screw

7518523

$3.99

14

Screw

7518196

$1.49

15

Shield, Rear, RH, Black [If built after 1/23/07]

5437234-070

$39.99

15

Shield, Rear, LH, Black [If built after 1/23/07]

5437233-070

$44.99

15

Shield, Rear, LH, Black [If built before 1/23/07]

5436038-070

$44.99

15

Shield, Rear, RH, Black [If built before 1/23/07]

5436039-070

Unavailable

16

Shaft

5135053

$27.99

17

BUSHING, CONTROL ARM

5436833

$5.19

18

Bolt

7518522

$7.19

19

Control, Lower, LH, Black

1015383-067

Unavailable

19

Control, Lower, RH, Black

1015384-067

Unavailable

20

SCREW

7517632

$5.59

21

Bracket, Control-Arm Pivot

5249289

Unavailable

22

SCREW

7518365

$7.91

23

Fitting, Lubrication

7080433

$1.49
