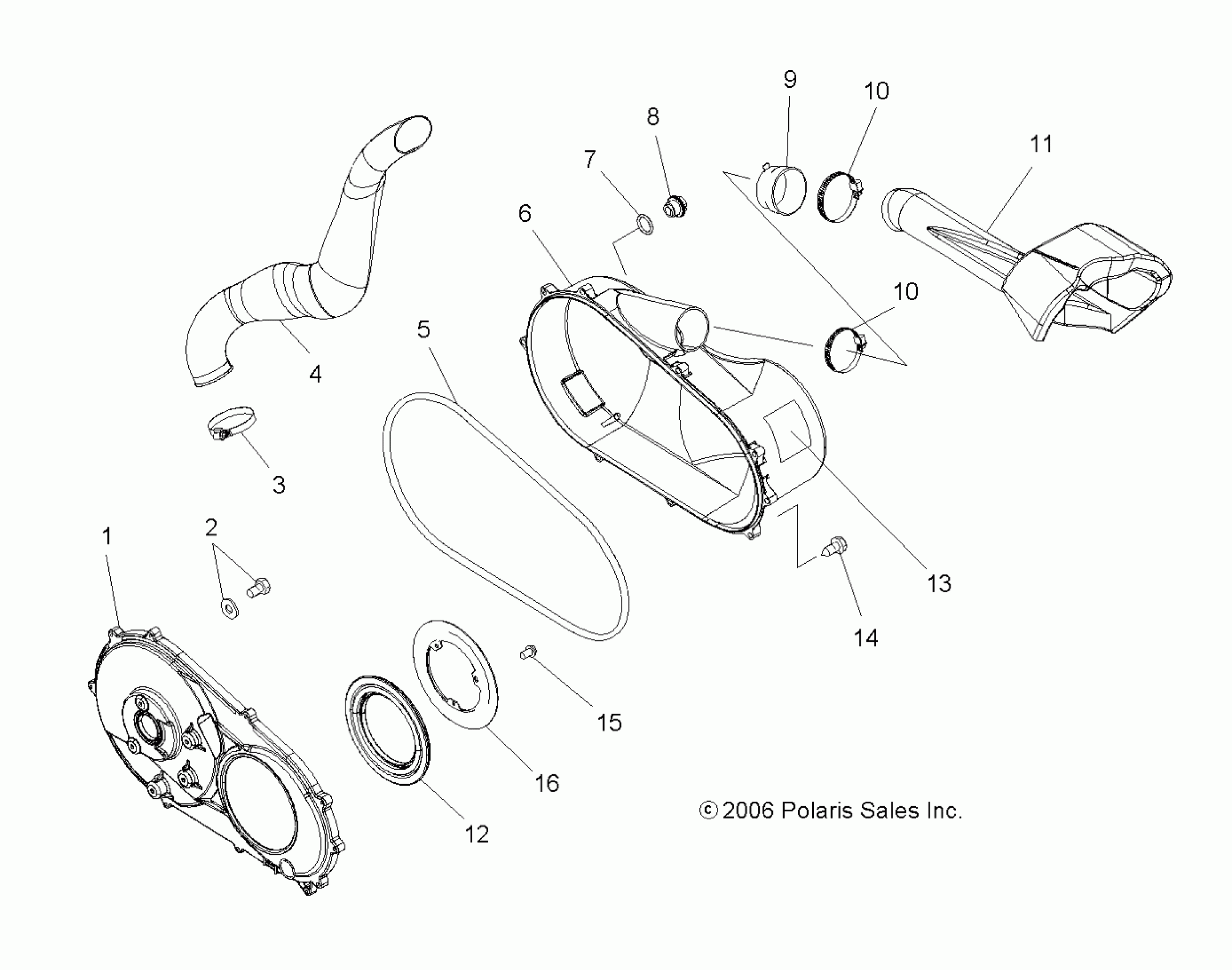

Polaris SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU CLUTCH COVER - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU (49ATVCLUTCHCVRX2500EFI) Diagram

Asm., Clutch Cover, Inner [Incl. 14]

2633158

Unavailable

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.56

Clamp, Narrow Band

7080511

$4.76

Duct, Clutch Air Inlet [If built after 11/13/06]

5437109

Unavailable

Duct, Clutch Air Inlet [If built before 11/13/06]

5436956

Unavailable

Seal, Cover, Clutch [If built after 10/17/06]

5521738

$44.51

Seal, Cover, Clutch [If built before 10/17/06]

5521578

$44.51

Asm., Cover [Incl. 7,8]

2633262

$186.17

O RING-.364X.504X.07

5410542

$4.84

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

BOOT, DUCT

5412636

$24.27

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

Duct, Clutch Outlet

5437043

$61.99

Seal, Cover Case

5412725

Unavailable

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

SCREW

7512094

$1.59

Asm., Screw and Washer

3084205

$3.97

BRACKET, CLUTCH, SEAL

5242046

$36.41
