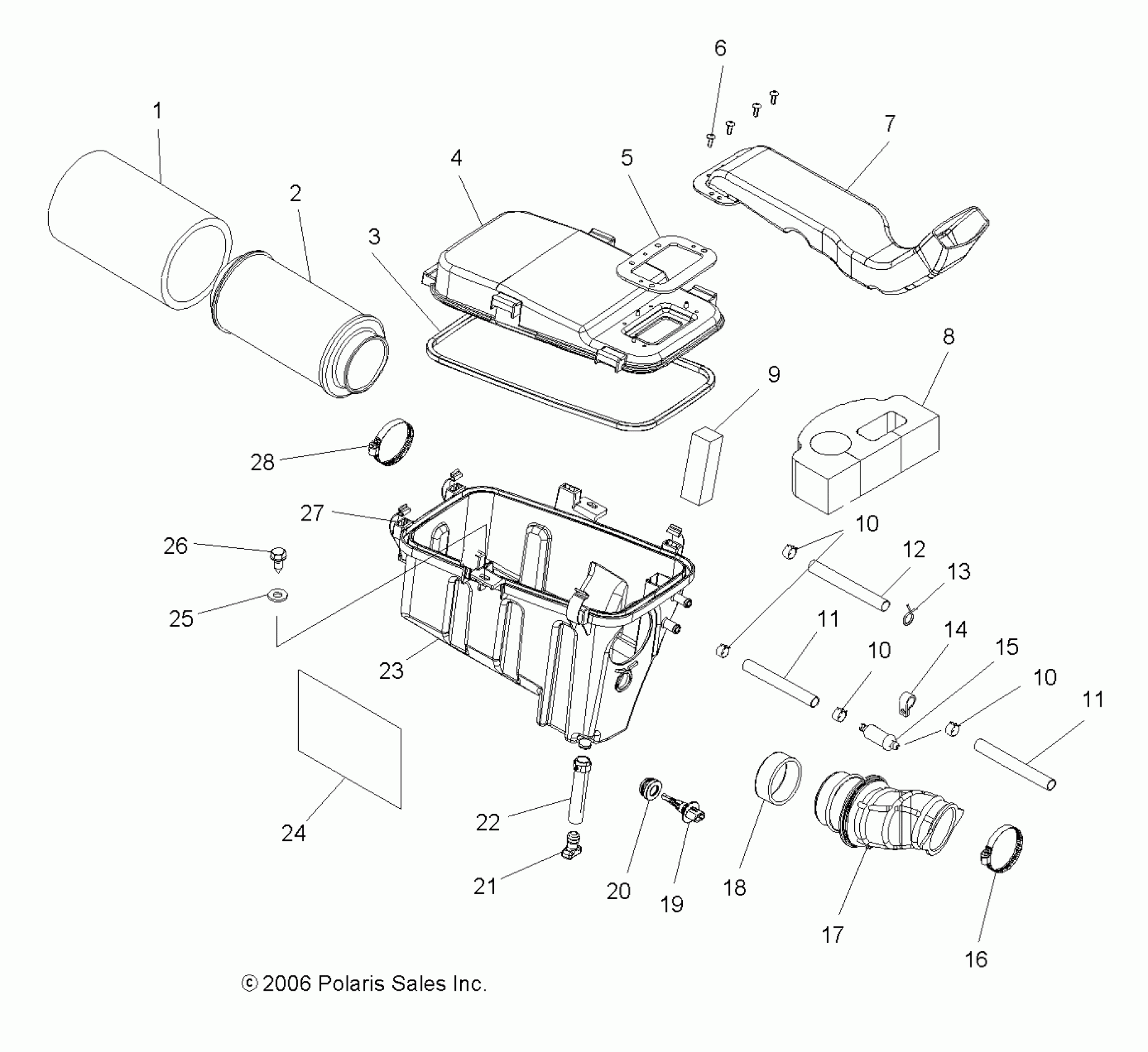

Polaris SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU AIR BOX - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU (49ATVAIRBOXX2500EFI) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

FILTER, AIR INTAKE

7080595

Unavailable

3

Seal, Air Box Cover

5812829

$27.02

4

Cover, Air Box

5436278

Unavailable

5

Gasket, Intake

5412748

Unavailable

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Duct, Air Inlet

5436957

Unavailable

8

Seal, Foam

5812773

$28.32

9

Filter, Crankcase

5812910

$4.79

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

11

Line, Breather

8450073-600

$67.99

11

Line, Breather

8450073-600

$67.99

12

Hose, Breather

5413104

Unavailable

13

Clamp

7080694

$6.53

14

Clamp P

7080913

$5.59

15

Filter, Breather

2530029

$6.39

16

Clamp

7080511

$4.79

17

Boot, Carburetor

5412847

$35.99

18

Sleeve

5433847

$13.59

19

Sensor, Air Temp

2410687

$143.99

20

Grommet

5436346

$4.79

21

Plug, Trap

5435299

$6.39

22

Line, Fuel

8450059-150

Unavailable

23

Box, Air

5436151

$133.56

24

Foil, Airbox

5812771

Unavailable

25

Washer, Flat

7555859

$1.49

26

Screw

7515179

$2.39

27

Clip, Air Box

5249292

Unavailable

28

Clamp, Narrow Band

7080413

$3.19
