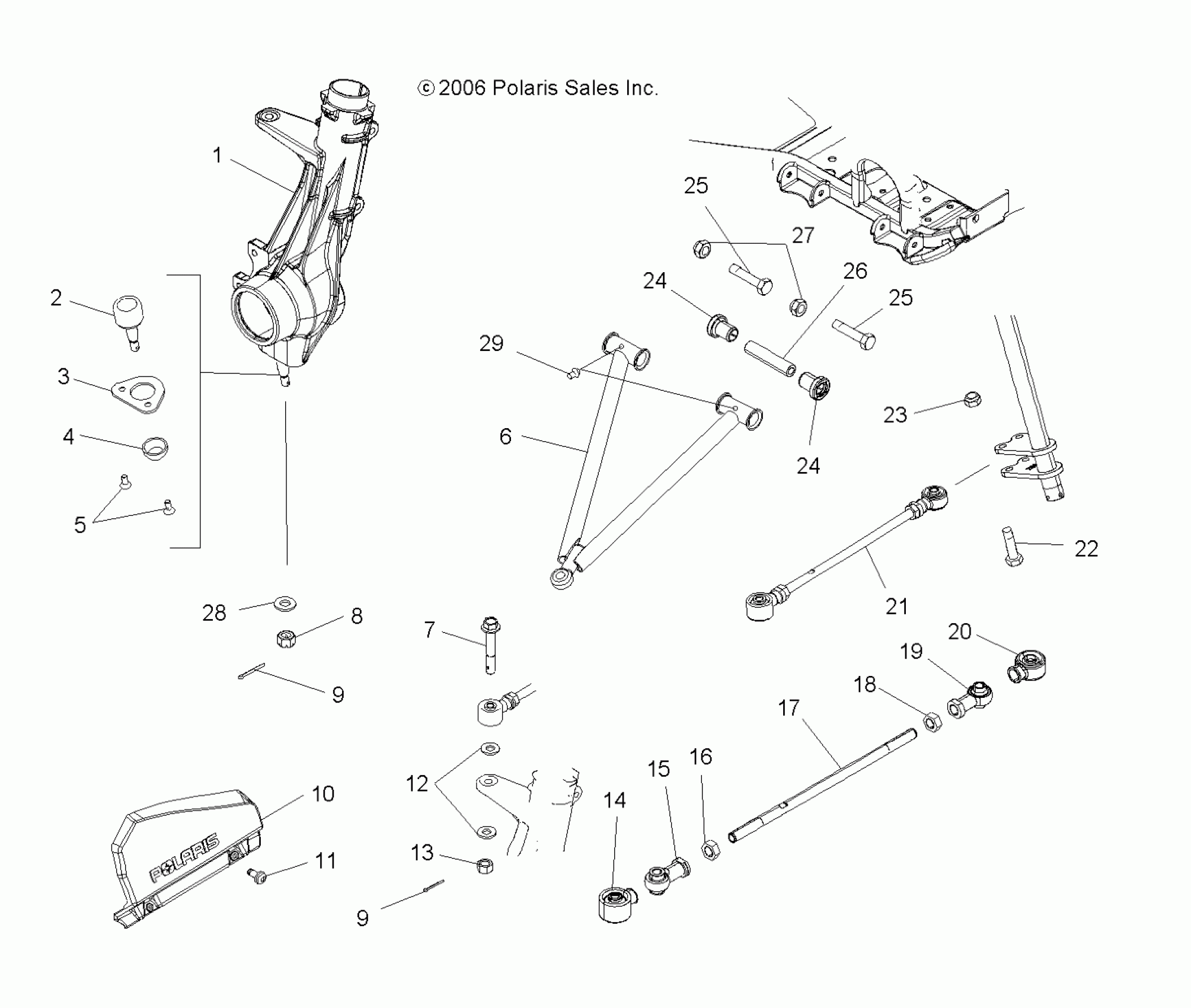

Polaris SPORTSMAN X2 500 EFI - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU A-ARM/STRUT MOUNTING - A07TH50AL/AQ/AU/AZ/TN50AF/AS/AU (49ATVAARMX2500EFI) Diagram

#

Description
Price

1

Asm., Hubstrut, RH

1822826

$303.99

1

Asm., Hubstrut, LH

1822825

$303.99

2

Joint, Ball, Greaseless [If built before 10/27/06]

7061130

Unavailable

2

Joint, Ball, Greaseless [If built after 10/27/06]

7061153

Unavailable

3

BRACKET-BALL JOINT

5211121

$31.99

4

Boot, Rubber, Greaseless

5412658

$4.79

5

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

6

A-Frame, LH, Black

1542340-067

Unavailable

6

A-Frame, RH, Black

1542341-067

Unavailable

7

Bolt

7517909

$5.59

8

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

9

Pin, Cotter

7661203

$1.49

9

Pin, Cotter

7661203

$1.49

10

Shield, CV Joint, LH

5436999-070

$39.59

10

Shield, CV Joint, RH

5437000-070

$39.59

11

Rivet

7621341

Unavailable

12

Washer, Flat

7556099

$1.59

13

Nut

7547177

$2.39

14

Boot, Seal, Rod End

5412929

$11.19

15

Rod End, LH

7061138

$51.99

16

Nut, Jam, LH

7547028

$2.39

17

Tie Rod

5134242

$39.99

18

Nut

7542711

$2.39

19

Rod End

7061139

$55.99

20

Boot, Seal, Rod End

5412928

$11.32

21

Asm., Tie Rod [Incl.14-20]

1822851

$103.99

22

Screw

7515415

$1.49

23

Nut, FLEXLOC

7542439

$1.49

24

Bushing

5436832

$2.38

24

Bushing

5436832

$2.38

25

Screw

7518523

$3.99

25

Screw

7518523

$3.99

26

Shaft, A-Arm

5134882

$31.99

27

NUT-3/8-24 FLG LOC

7547263

$3.19

28

Washer

7555957

$4.79

29

Fitting, Lubrication

7080433

$1.49
