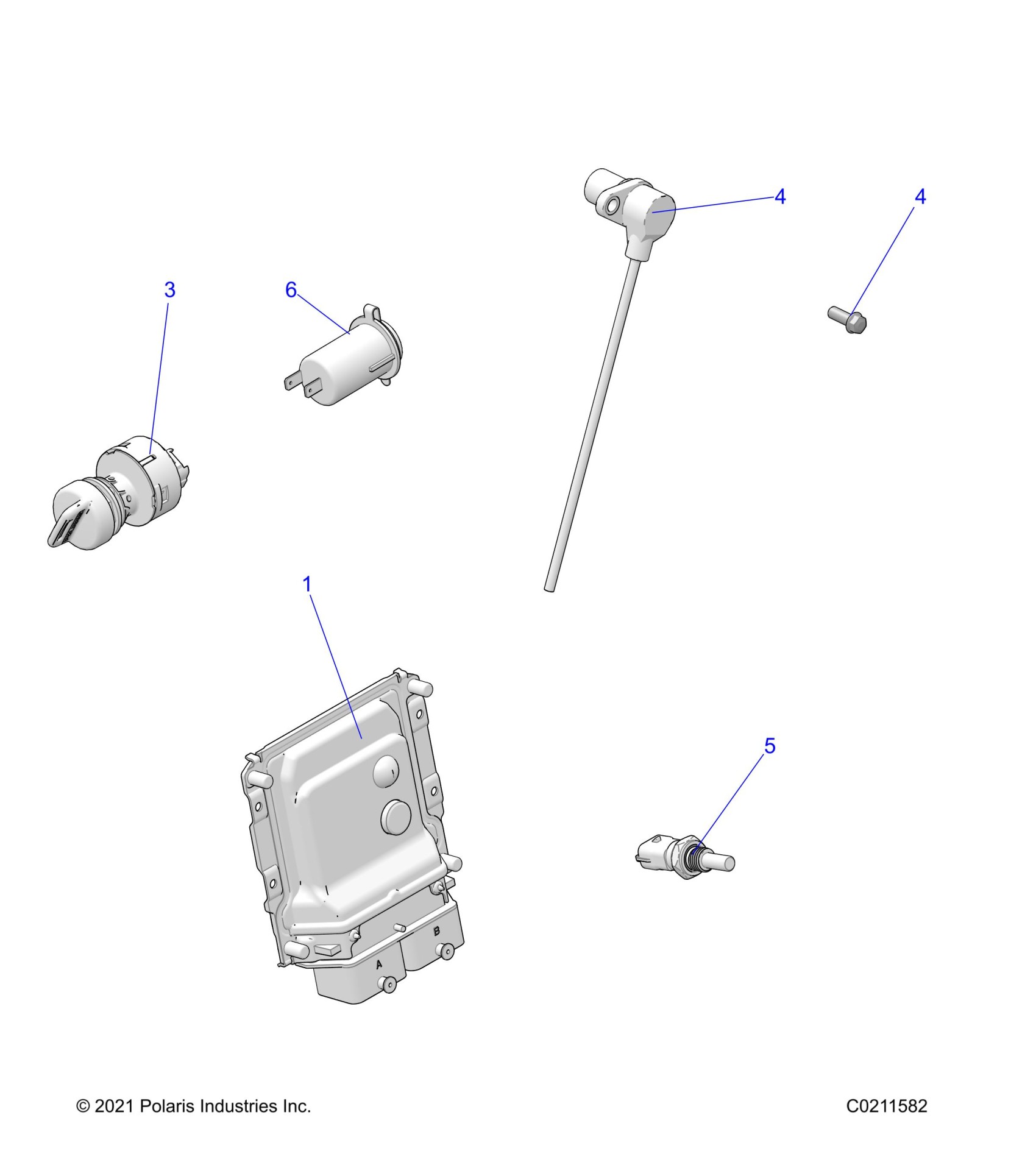

Polaris SPORTSMAN TOURING XP 1000 TRAIL (R02) - A24SYY95AH ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A24SYY95AH (C0211582) Diagram

#

Description

Price

1

ECU, BASE, M17

4012838

$565.24

3

SWITCH, KEY, 3 POSITION, SEALED

4015033

$62.92

3

KEY SWITCH KEY COVER

5433534

$13.75

3

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

4

Sensor, Crank Position

2411589

$79.37

4

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSSITION SENSOR]

7518548

$1.59

4

Sensor, Crank Position

2411589

$79.37

4

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSSITION SENSOR]

7518548

$1.59

5

SENSOR-THERMISTER

4010644

$91.97

6

Receptacle, Pod Mount, 12 Volt

4010638

$28.32
