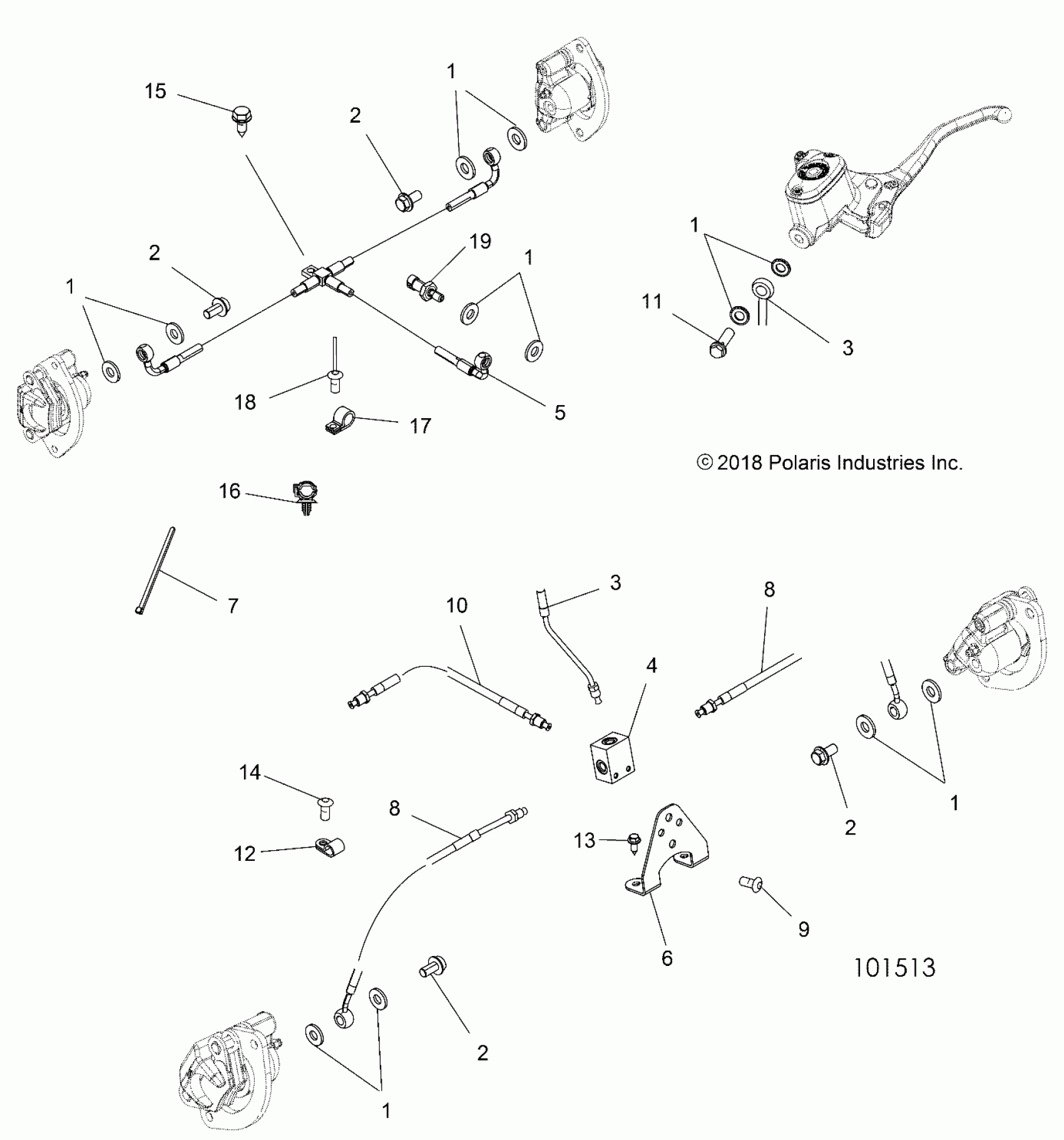

Polaris SPORTSMAN TOURING XP 1000 (R06) - A19SYE95BV BRAKES, BRAKE LINES - A19SYE95BV Diagram

#

Description
Price

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

1

SEAL

5413212

$4.84

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

2

BOLT, BANJO

1910499

$5.56

3

LINE-BRK, MCT

1913023

$84.98

3

LINE-BRK, MCT

1913023

$84.98

3

LINE-BRK, MCT

1913023

$84.98

4

FITTING, CROSS

7052372

$59.52

5

LINE-BRAKE,REAR,2UP

1913024

$214.51

6

BRACKET, JUNCTION BLOCK

5257768

$10.51

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE, BRAKE, CALIPER, FRONT

1911668

$80.94

9

SCREW

7512024

$4.76

10

LINE, BRAKE, JB TO FT MC

1911669

$84.98

11

BOLT, BANJO

1910499

$5.56

12

CLAMP, WIRE/TUBE

7081246

$1.19

13

SCREW

7518513

$4.76

14

SCREW

7518176

$4.76

15

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.17

16

CLIP, ROUTING

7670116

$5.56

17

CLAMP, CABLE

7080499

$5.56

18

RIVET

7621330

$1.19

19

SWITCH-BRK,M10X1.25,SGL,NO RES

4017278

$83.33
