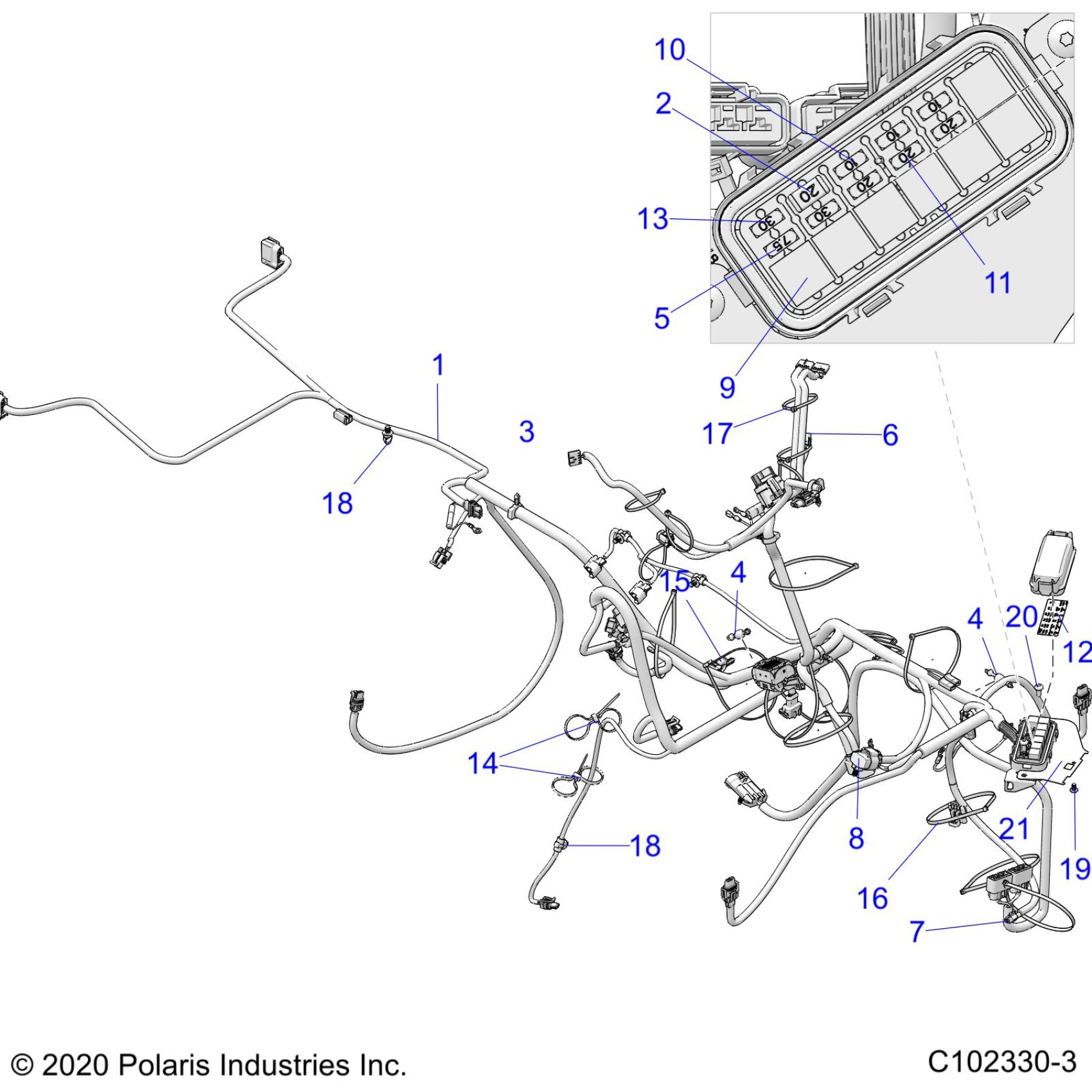

Polaris SPORTSMAN TOURING XP 1000 48" (R06) - A20SYE95AD/CAD ELECTRICAL, HARNESS - A20SYE95AD/CAD (C102330-3) Diagram

HARNESS-MAIN,850/1000 EPS TRG [INCL. 1-14]

2415158

$1,199.99

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

CLIP-EDGE,DIA5-50MM,OUT-SER [NOT ILLUSTRATED]

7081824

$12.94

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

CONNECTOR-CAP, WINCH SWITCH

4014890

$10.65

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$9.76

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

FUSE-IGNITION,10 AMP

2434016

$5.65

FUSE-PARK,20 AMP

2434017

$8.08

LABEL, FUSE BOX

7192266

Unavailable

FUSE-MAIN,30 AMP

2434015

$8.87

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

Clip, Plastic, Dart, Nylon

4010589

$2.38

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

FASTNER-PUSH-ON CLIP,.250

7670125

$7.99

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.17

BRACKET, FUSE BLOCK

5257893

$10.51
