Description

Price

1

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

1334155

$2,719.19

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.19

3

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.19

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD M10 X 1.5 X 30

3234634

$13.59

6

NUT, LOCK HEX FLANGE NYLON 45428

3233961

$2.79

7

WASHER, THRUST 0.5 X 0.937 X 0.063

3234636

$7.99

8

WASHER, THRUST 0.625 X 1 X 0.063

3234637

$11.19

9

WASHER, RIBBED

3235508

$3.99

10

PIN, DOWEL 6 X 20

3234330

$7.19

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

12

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

13

RING RETAINING, IRR 7200-118

3233699

$7.19

14

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.19

15

RING, RETAINING BASIC, EXTERNA

3234327

$7.19

16

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.59

17

RING, RETAINING BASIC, EXTERNAL, SHR-50

3234639

$10.39

18

RING, RETAINING, EXTERNAL USC-112

3234641

$12.79

19

SHAFT, INPUT 25T REM

3235063

$315.99

20

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

21

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

22

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

22

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

23

SHIM, 1.17 OD X 0.675 ID

3234644

$12.79

24

WASHER, THRUST, 1.568 OD X .1.110 ID

3234646

$23.99

25

WASHER, THRUST, � 33 X � 29 X 1.5

3234757

$11.19

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

BEARING

3233020

$47.99

29

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

30

BEARING BALL,6304STD 20X52X15

3234651

$15.99

31

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

32

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.99

33

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

34

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

3234655

$15.99

35

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.99

36

SPRING, COMPRESSION, 0.648 O.D. X 1.33

3234687

$7.99

37

SPRING, WAVE, 1.60 ID X 0.375

3234688

$10.39

38

SPRING, PARK PAWL, TORSION

3234787

$23.99

39

SPRING, COMPRESSION, 0.45 OD X 1.58

3234790

$19.99

40

BELLHOUSING, MACH

3235196

$43.99

41

GEARCASE, MAIN, GTO MACH

3235428

$299.99

42

GEARCASE GTO COVER, MACH.

3235790

$633.59

43

PAWL, PARK

3234692

Unavailable

44

GEAR, SECTOR, 38T

3234694

$27.99

45

BULLET DETENT

3234695

$31.99

46

Shaft, Reverse, 53T

3234774

$195.99

47

GEAR, HELICAL 42T

3235133

$75.99

48

SHAFT, INPUT

3235194

$231.99

49

SHAFT, OUTPUT REAR

3235789

$391.99

50

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

50

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

51

GEAR, 67T

3234706

$87.99

52

SPROCKET, 48T, 6-FACE

3234707

$35.99

53

SHAFT, SHIFT, BELLCRANK

3234712

$63.99

54

Rail, Shift, Shaft

3234714

$27.99

55

PLUG, DETENT

3234715

$35.99

56

RAIL, PARK SHAFT

3234716

$27.99

57

DOG, ENGAGEMENT, GTO, LOW

3234718

$175.99

58

PIPE, KNOCK

3234765

$12.79

59

FORK, SHIFT

3234766

$83.99

60

DOG, ENGAGEMENT, GTO, HIGH

3235190

$67.99

61

DOG, ENGAGEMENT GTO, REV/LOW

3235341

$171.99

62

FORK, SHIFT

3235342

$83.99

63

SPROCKET, 23T

3236336

$55.99

64

SPROCKET, 44T

3236337

$70.39

65

SUBASM., SWITCH SHAFT

3234767

$115.99

66

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25) (#26 & #29)

3235191

$307.99

67

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.99

68

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$23.99

69

KIT, LUK, INPUT SHAFT SHIM PACK

2204343

$31.99

70

SUBASSY OUTPUT, FRONT W/BEARINGS (#26) (#27)

3235788

$239.99

71

BELLCRANK, 15T SPLINE

3234724

$23.99

72

Deflector, Oil

3234725

$12.79

73

PLUG, M18 X 1.5

3234755

$27.99

74

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

75

CHAIN SILENT, 0.75 X .375P X 64P

3235245

$195.99

76

SWITCH, ROTARY, 2 PIN RESISTIVE

7662383

$111.99

77

SENSOR-SPEED,TRANS

4013908

Unavailable

78

SEAL, 35 X 62 X 8

3234769

$43.99

79

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

79

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

79

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

79

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

80

O-RING - N70, 9.5 MM X 2 MM

3236171

$10.55

81

O-RING, -113 VITON

3233840

$11.19

82

O-RING, -014 VITON

3233828

$6.79

83

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

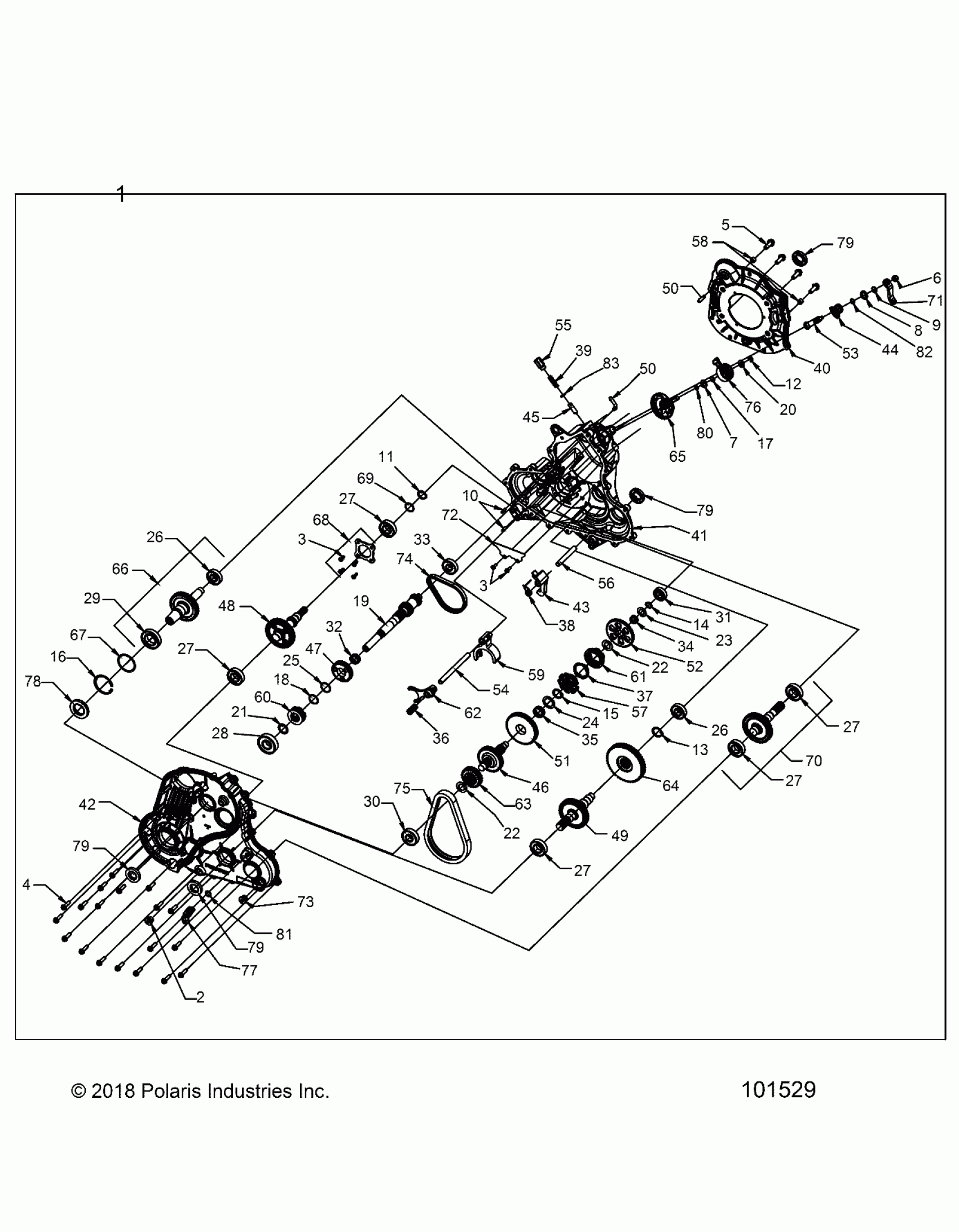

Polaris SPORTSMAN TOURING XP 1000 48" (R06) - A20SYE95AD/CAD DRIVE TRAIN, MAIN GEARCASE - A20SYE95AD/CAD Diagram

ASM-TRANS,BOSS/LUK,CLSD RATIO [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW, TORX PAN HD M6 X 1 X 16

SCREW, TORX PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD M10 X 1.5 X 30

NUT, LOCK HEX FLANGE NYLON 45428

WASHER, THRUST 0.5 X 0.937 X 0.063

WASHER, THRUST 0.625 X 1 X 0.063

WASHER, RIBBED

PIN, DOWEL 6 X 20

RING,RETAINING BASIC,EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL

RING RETAINING, IRR 7200-118

RING, RETAINING, EXTERNAL SHR-66

RING, RETAINING BASIC, EXTERNA

RING, RETAINING BASIC, INTERNAL, 62MM

RING, RETAINING BASIC, EXTERNAL, SHR-50

RING, RETAINING, EXTERNAL USC-112

SHAFT, INPUT 25T REM

WASHER,THRUST,0.446 X 0.88 X 0.025

WASHER, THRUST 1.300 X 0.995 X 0.065

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.17 OD X 0.675 ID

WASHER, THRUST, 1.568 OD X .1.110 ID

WASHER, THRUST, � 33 X � 29 X 1.5

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6007 C3 35 X 62 X 14

BEARING BALL,6304STD 20X52X15

BEARING, BALL 6203 17 X 40 X 12

BEARING, NEEDLE, SPLIT CAGE

BEARING, BALL 6303, 17 X 47 X 14

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

BEARING, NEEDLE, 28 X 33 X 13

SPRING, COMPRESSION, 0.648 O.D. X 1.33

SPRING, WAVE, 1.60 ID X 0.375

SPRING, PARK PAWL, TORSION

SPRING, COMPRESSION, 0.45 OD X 1.58

BELLHOUSING, MACH

GEARCASE, MAIN, GTO MACH

GEARCASE GTO COVER, MACH.

PAWL, PARK

GEAR, SECTOR, 38T

BULLET DETENT

Shaft, Reverse, 53T

GEAR, HELICAL 42T

SHAFT, INPUT

SHAFT, OUTPUT REAR

TUBE, VENT 90 -1/4 INCH HOSE

TUBE, VENT 90 -1/4 INCH HOSE

GEAR, 67T

SPROCKET, 48T, 6-FACE

SHAFT, SHIFT, BELLCRANK

Rail, Shift, Shaft

PLUG, DETENT

RAIL, PARK SHAFT

DOG, ENGAGEMENT, GTO, LOW

PIPE, KNOCK

FORK, SHIFT

DOG, ENGAGEMENT, GTO, HIGH

DOG, ENGAGEMENT GTO, REV/LOW

FORK, SHIFT

SPROCKET, 23T

SPROCKET, 44T

SUBASM., SWITCH SHAFT

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25) (#26 & #29)

KIT, GTO, PRIMARY SHIM PACK

SUBASSY BEARING COVER W/SCREWS (#3)

KIT, LUK, INPUT SHAFT SHIM PACK

SUBASSY OUTPUT, FRONT W/BEARINGS (#26) (#27)

BELLCRANK, 15T SPLINE
