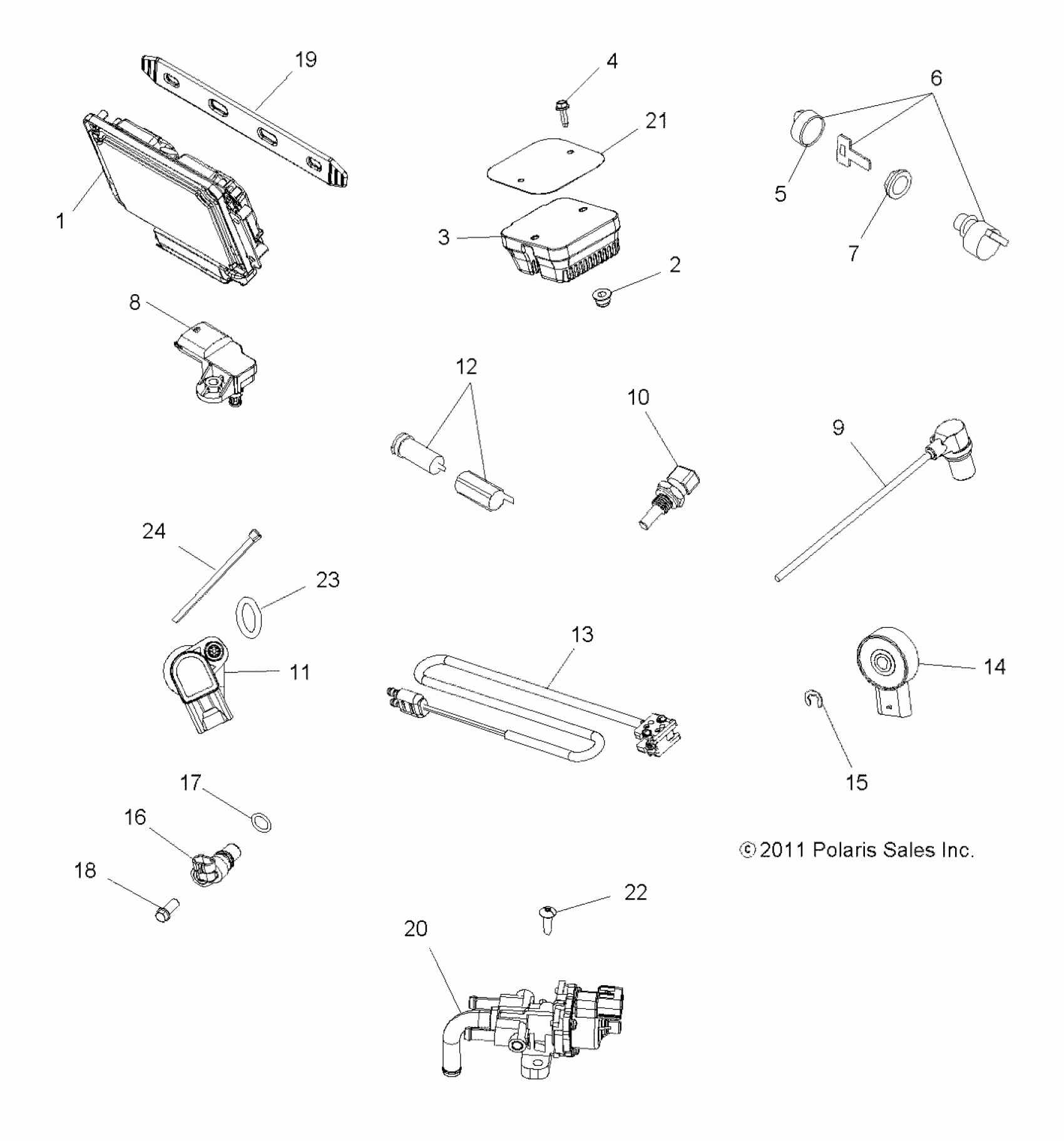

Polaris SPORTSMAN TOURING EPS 850 - A12DN8EAF/EAH/EAR/EAW ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A12DN8EAF/EAH/EAR/EAW (49ATVSWITCHES12SPTRGEPS850) Diagram

Description

Price

ECM

4012616

$679.99

NUT-M6 FLANGE,NYLOC

7547274

$1.19

REGULATOR, VOLTAGE

4012678

$327.74

SCREW, FLANGE

7519202

$3.97

KEY SWITCH KEY COVER

5433534

$13.75

SWITCH, KEY, 3 POSITION [INCL. 5]

4012165

$109.27

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

SENSOR-TMAP DSS3-TF

2411528

$97.13

SCREW

7518548

$1.59

Sensor, Engine Speed

2411589

$79.37

SENSOR-THERMISTER

4010644

$91.97

Kit, TPS [Incl. TPS Sensor, Sleeve Holder, Repair Harness, O-Ring, Cable Ties]

2205360

$283.32

RECEPTACLE, POD, 12 V

4010638

$28.32

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH [GEAR POSITION]

3233835

$142.49

RING, RETAINING

3233834

$10.32

Clip, Routing, Hinged [For Use w/Speed Sensor]

7670116

$5.56

SENSOR, SPEED

4012167

$109.27

O-RING

3234302

$7.27

SCREW

3234329

$9.52

STRAP, ECU

5414193

$27.78

KIT, HARNESS, IAC

2878507

$179.99

VALVE, IAC

4013313

$222.68

COVER, VOLTAGE REGULATOR

5253294

$11.32

SCREW

7519045

$3.17

O-Ring

5411356

$2.41

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
