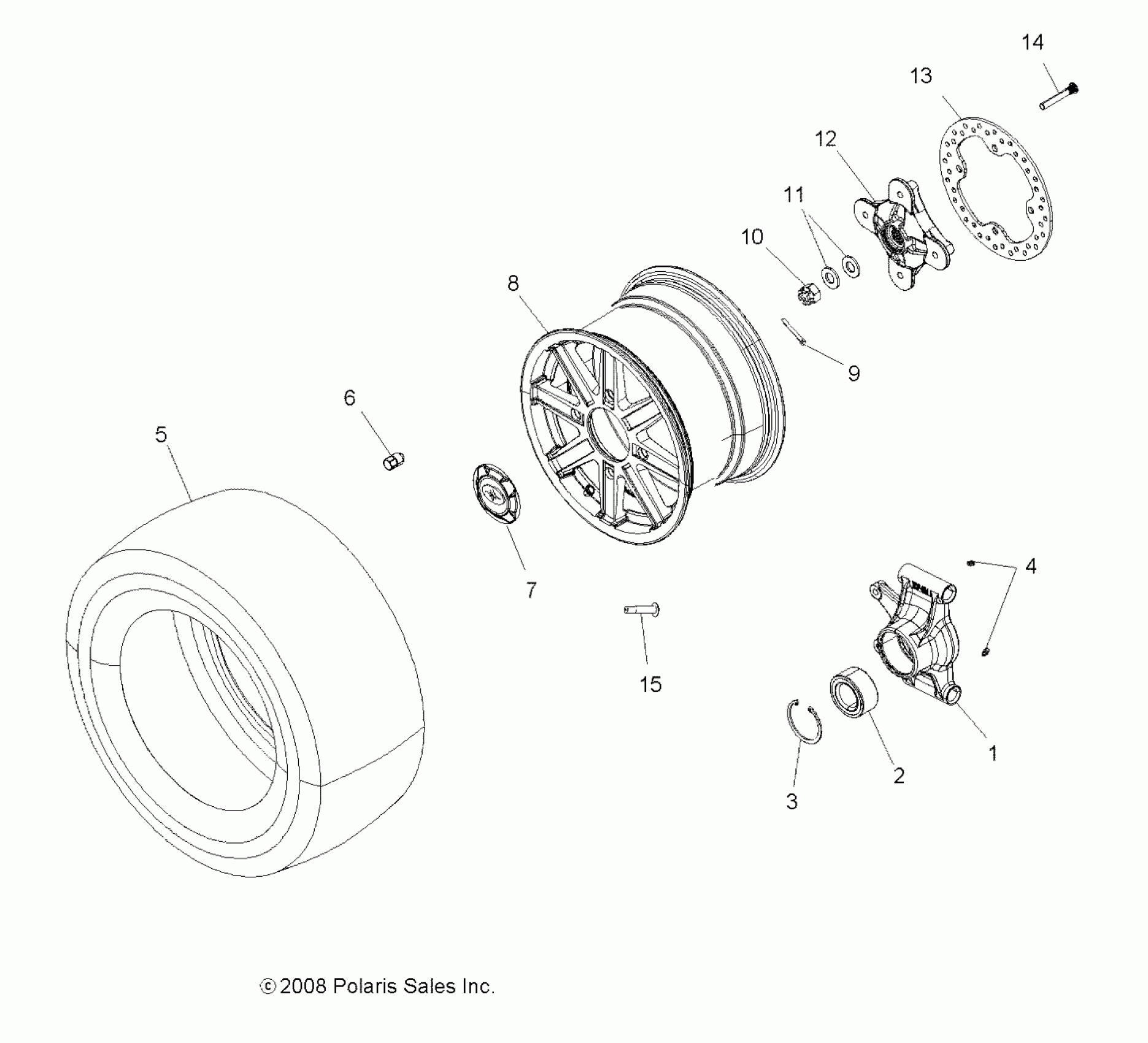

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ WHEELS, REAR and HUB - A11DX85AF/AG/AZ (49ATVWHEELREAR10SPXP850) Diagram

#

Description
Price

1

CARRIER, BEARING, RH

5136690

Unavailable

1

CARRIER, BEARING, LH

5136689

Unavailable

2

BEARING, BALL, SEALED

3514699

$39.99

3

RING, RETAINING

7710440

$10.39

4

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

Tire, Rear, 26x10-14 [AG]

5414074

Unavailable

5

Tire, Rear, 26x10-14 [AF][AZ]

5413276

$146.99

6

NUT, WHEEL, REAR

7547361

$2.39

7

COVER, HUB

5438120

$43.99

8

Rim, Rear, Cast [AF][AZ][Incl. Cover]

1521485

Unavailable

8

Rim, Rear, Cast, Black [AG][Incl. Cover]

1521487

Unavailable

9

PIN, COTTER

7661404

$4.79

10

NUT, CASTLE

7547406

$4.79

11

WASHER, CONE

7555796

$7.99

12

HUB, WHEEL

5136946

$93.08

13

DISC, BRAKE

5250205

$75.99

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$5.59
