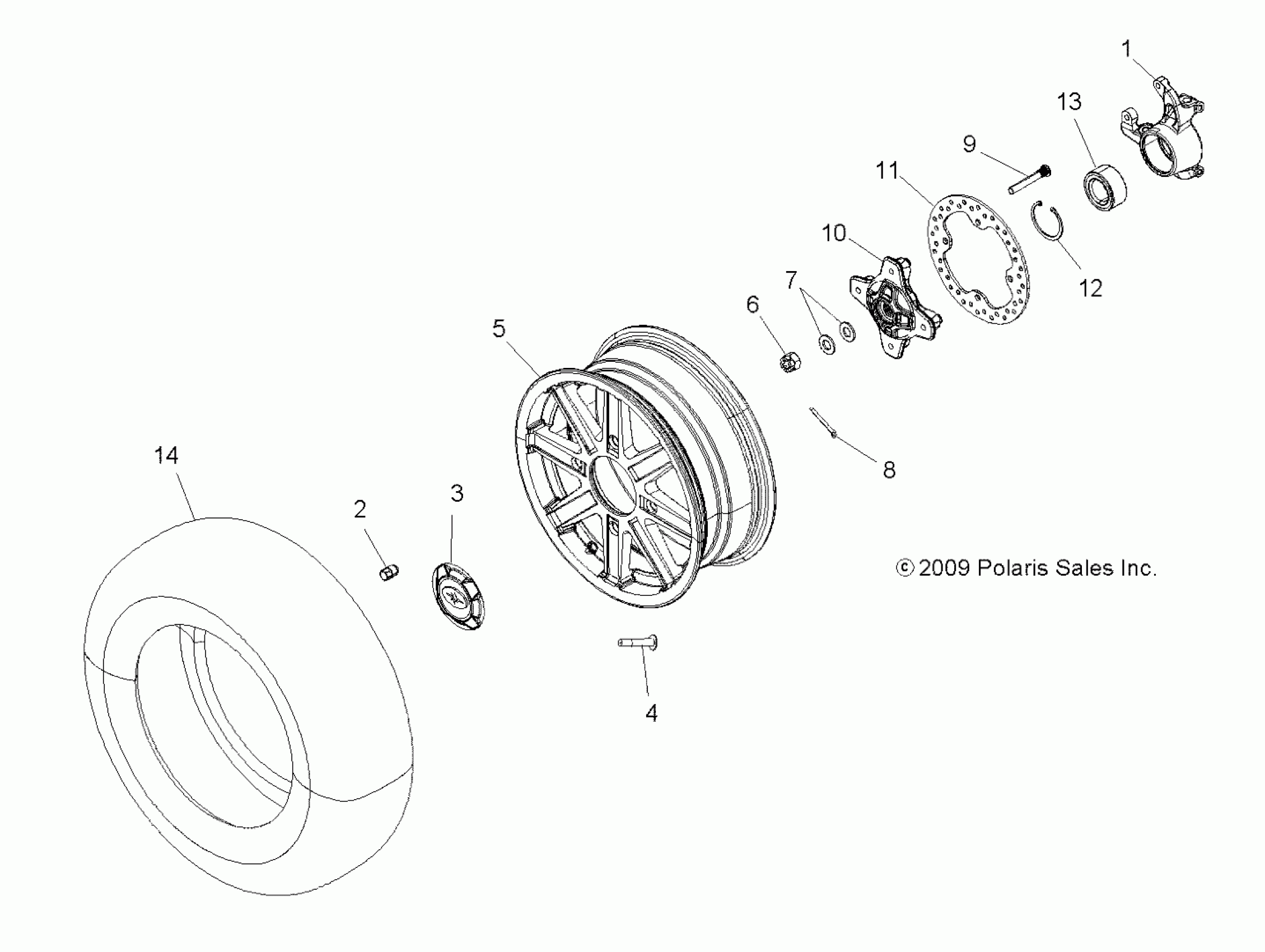

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ WHEELS, FRONT and HUB - A11DX85AF/AG/AZ (49ATVWHEELFRT10SPXP850) Diagram

#

Description
Price

1

ASM., STEERING KNUCKLE, RH [INCL. 12,13]

1822946

Unavailable

1

ASM., STEERING KNUCKLE, LH [INCL. 12,13]

1822945

Unavailable

1

KNUCKLE, LH

5136733

Unavailable

1

KNUCKLE, RH

5136734

Unavailable

2

NUT, WHEEL

7547361

$2.39

3

COVER, HUB

5438120

$43.99

4

VALVE-RIM

1525017

$5.59

5

Rim, Front, Cast [AF][AZ][Incl. Cover]

1521484

Unavailable

5

Rim, Front, Cast [AG][Incl. Cover]

1521486

$164.79

6

NUT, CASTLE

7547406

$4.79

7

WASHER, CONE

7555796

$7.99

8

PIN, COTTER

7661402

$1.86

9

STUD, WHEEL

7518671

$1.59

10

HUB, WHEEL

5135499

Unavailable

11

DISC, BRAKE

5250205

$75.99

12

RING, RETAINING

7710440

$10.39

13

BEARING, BALL, SEALED

3514699

$39.99

14

Tire, Front, 26x8-14 [AG]

5413944

Unavailable

14

Tire, Front, 26x8-14 [AF][AZ]

5413275

$157.49
