- SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ
STEERING, STEERING POST ASM. - A11DX85AF/AG/AZ (49ATVSTEERING11SPTRG550)

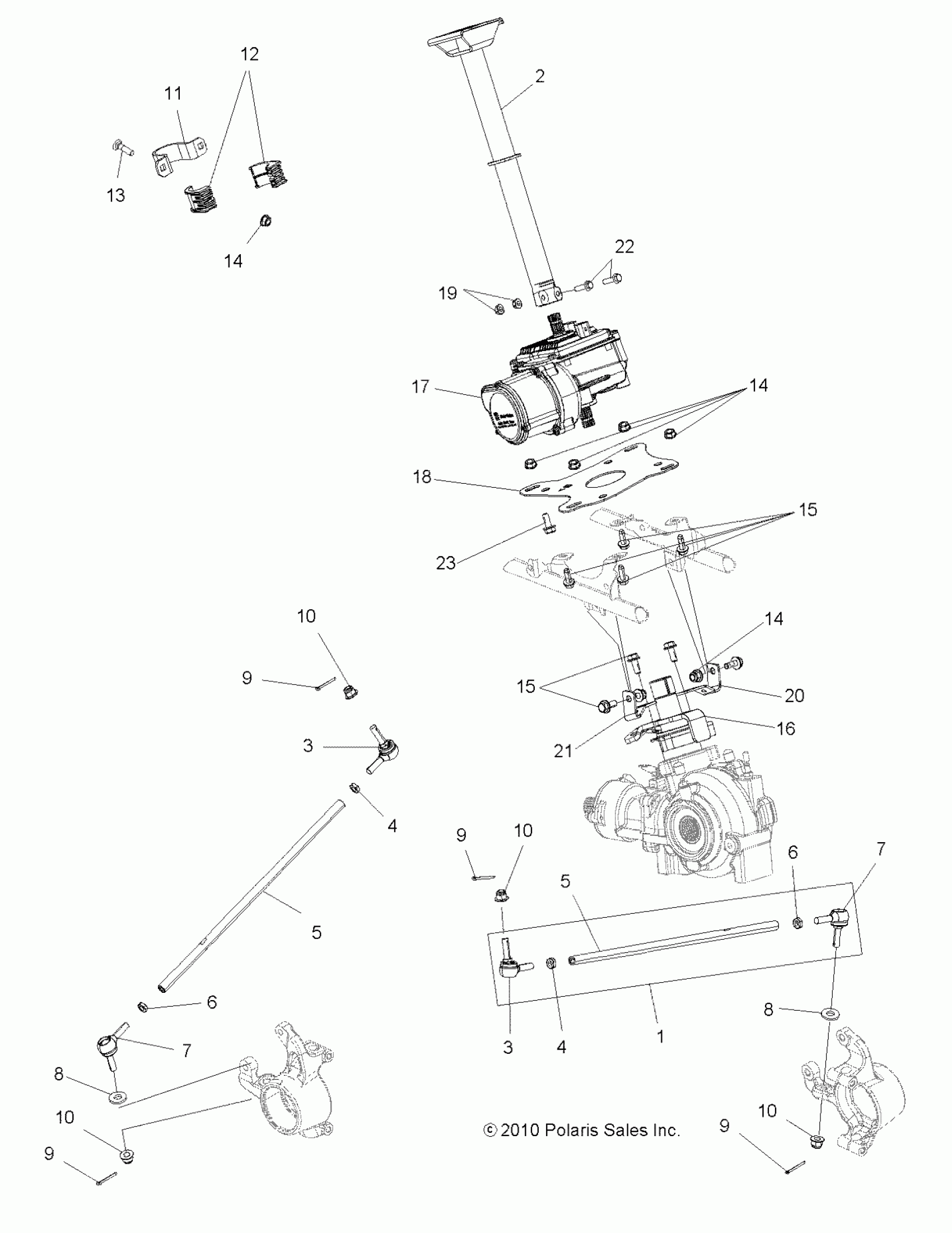

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ STEERING, STEERING POST ASM. - A11DX85AF/AG/AZ (49ATVSTEERING11SPTRG550) Diagram
#
Description
Price
1
Asm., Tie Rod [Incl. 3-7]
1823620
$96.63
2
POST, STEERING, UPPER, BLACK
1823781-329
$111.99
3
Rod End, RH
7061175
$71.99
3
Rod End, RH
7061175
$71.99
4
Nut, Jam, RH
7547452
$3.99
4
Nut, Jam, RH
7547452
$3.99
5
Tie Rod
5136903
$43.99
5
Tie Rod
5136903
$43.99
6
Nut, Jam, LH
7547451
$3.99
6
Nut, Jam, LH
7547451
$3.99
7
Rod End, LH
7061174
$71.99
7
Rod End, LH
7061174
$71.99
8
WASHER
7556153
$1.99
8
WASHER
7556153
$1.99
9
Pin, Cotter
7661205
$1.49
9
Pin, Cotter
7661205
$1.49
9
Pin, Cotter
7661205
$1.49
9
Pin, Cotter
7661205
$1.49
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
BRACKET, STEERING, UPPER
5249143
Unavailable
12
Bushing, Steering, Upper
5436128
Unavailable
13
BOLT, CARRIAGE
7518479
$3.99
14
Nut, Flange
7547317
Unavailable
14
Nut, Flange
7547317
Unavailable
14
Nut, Flange
7547317
Unavailable
15
Bolt, Flange
7518450
$1.59
15
Bolt, Flange
7518450
$1.59
16
POST, STEERING, LOWER
1823762
$146.71
17
Asm., Power Steering [Built 1/18/11 and After]
2411799
$1,222.99
17
Asm., Power Steering [Built 1/17/11 and Before]
2411630
$1,222.99
18
BRACKET, POWER STEERING, BLACK
5254633-329
$39.99
19
NUT-M6 FLANGE,NYLOC
7547274
$1.49
20
BRACKET, FRONT DRIVE, LH, BLACK
5253166-329
$79.19
21
BRACKET, FRONT DRIVE, RH, BLACK
5253167-329
Unavailable
22
SCREW, FLANGE
7516827
$6.39
23
BOLT, FLANGE
7518558
$3.99
