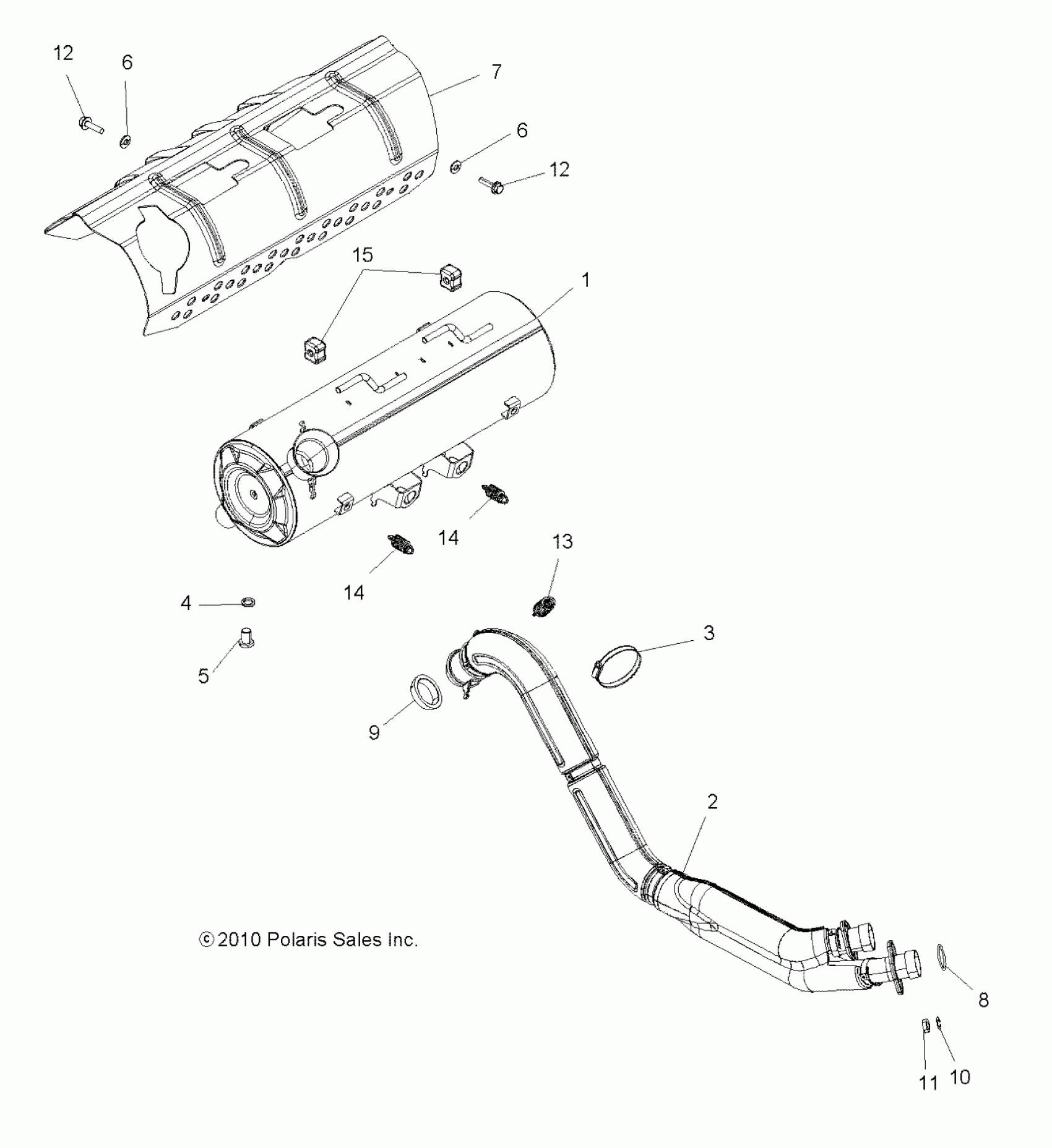

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ENGINE, EXHAUST - A11DX85AF/AG/AZ (49ATVEXHAUST11SPTRG850) Diagram

#

Description
Price

1

SILENCER, EXHAUST, BLACK [INCL. 4,5]

1262229-489

$307.99

2

ASM., EXHAUST PIPE [INCL. PIPE, SHIELDS, CLAMP]

1261987

Unavailable

3

CLAMP, WORM DRIVE

7080809

$9.59

4

WASHER, CLEAN OUT

7556230

$1.49

5

BOLT

7512666

$2.39

6

Washer

7555935

$2.39

6

Washer

7555935

$2.39

7

SHIELD, EXHAUST, SILENCER

5253634

Unavailable

8

GASKET, EXHAUST

3087957

$27.99

9

Seal, Exhaust [Built 12/14/10 and After]

3610179

$15.99

9

Seal, Exhaust [Built 12/13/10 and Before]

3610156

$16.17

10

Washer, Lock

7556111

$1.59

11

NUT

7547076

$2.60

12

SCREW

7518490

$1.49

12

SCREW

7518490

$1.49

13

SPRING-EXHAUST

7041789

$7.99

14

SPRING-EXHAUST

7041789

$7.99

14

SPRING-EXHAUST

7041789

$7.99

15

GROMMET, SILENCER MOUNT

5413383

$4.79
