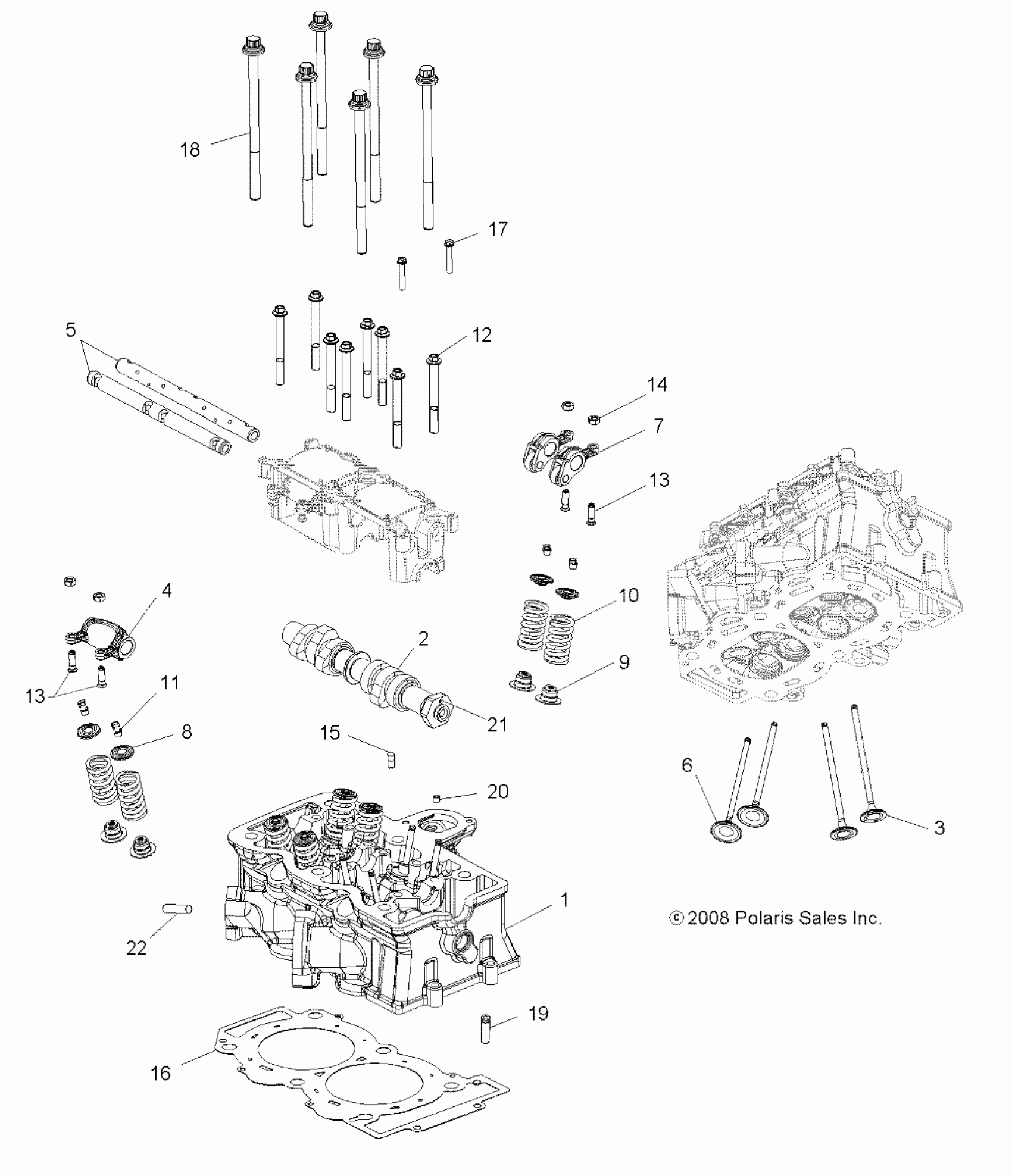

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ENGINE, CYLINDER HEAD, CAM and VALVES - A11DX85AF/AG/AZ (49ATVCYLINDER09SPXP850) Diagram

#

Description
Price

1

Asm., Cylinder Head [Incl. Camshaft Carrier]

3022097

Unavailable

2

ASM., CAM SHAFT [INCL. 21]

3022252

$518.00

3

VALVE, EXHAUST

3022272

$28.32

4

Asm., Arm Rocker, Exhaust [Incl. Arm, Screw, Nut]

1204159

Unavailable

4

Arm, Rocker Exhaust

-------

Unavailable

5

Shaft, Rocker

3021826

Unavailable

6

VALVE, INTAKE

3022099

$51.99

7

Asm., Arm Rocker, Intake [Incl. Arm, Screw, Nut]

1204160

$124.99

7

Rocker Arm Intake

-------

Unavailable

8

RETAINER, VALVE

3021865

$4.79

9

SEAL

3610165

$7.99

10

Spring, Valve

7043352

Unavailable

11

KEEPER-VALVE

7081470

$4.03

12

Screw

7518799

$7.14

13

SCREW, LASH ADJUSTER

5136463

Unavailable

13

SCREW, LASH ADJUSTER

5136463

Unavailable

14

NUT, LOCK

7547335

Unavailable

15

JET-OIL,OIL PUMP

2540080

$9.59

16

GASKET, CYLINDER HEAD

5813345

$55.99

17

SCREW

7518578

$3.99

18

Bolt

7518274

Unavailable

19

Guide, Valve

3022094

$27.41

20

PIN-DOWEL,M6X10

5132835

$2.39

21

PIN, DOWEL

5135619

$3.99

22

STUD, EXHAUST MOUNT

5132040

$5.59
