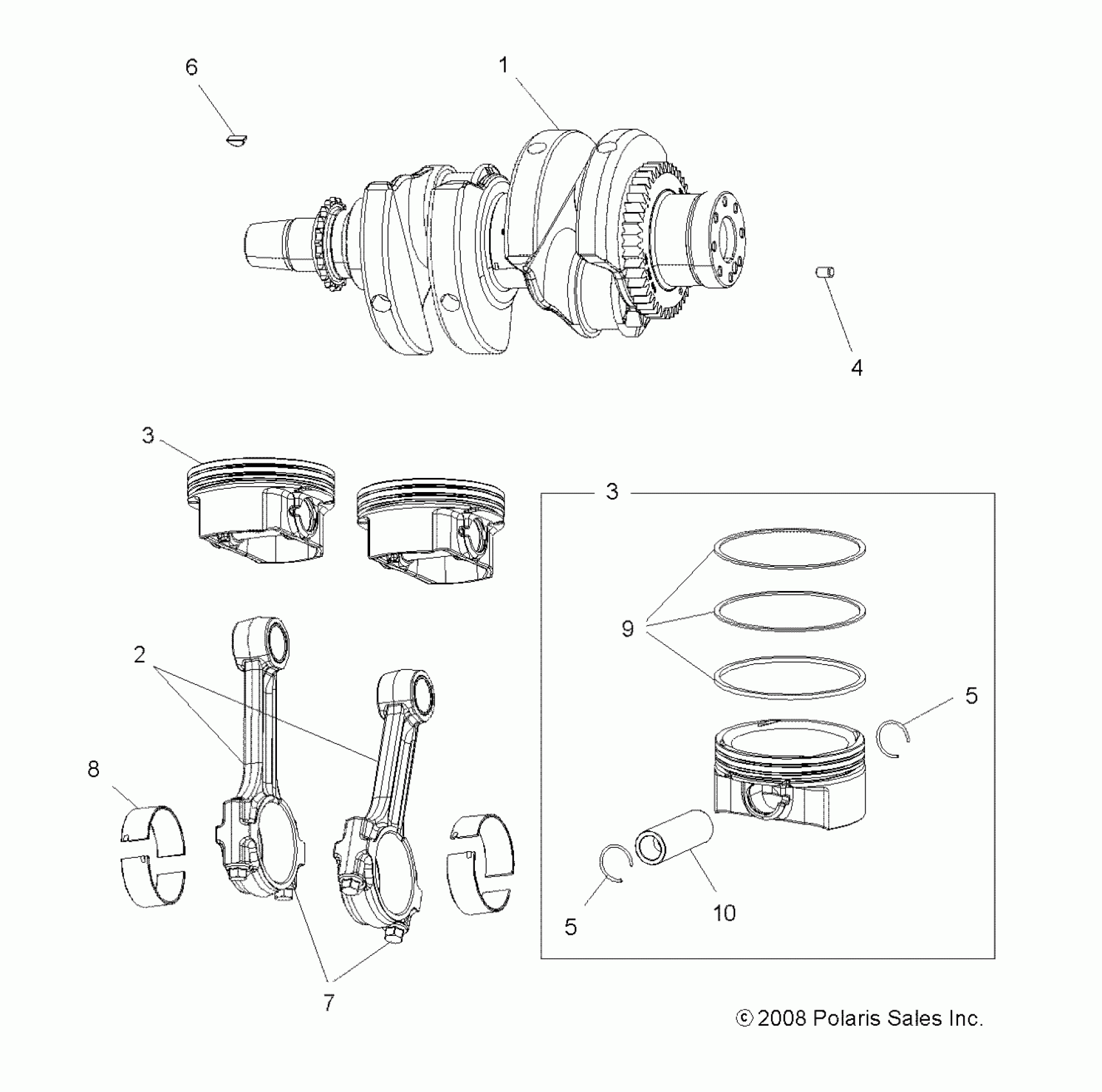

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ENGINE, CRANKSHAFT and PISTON - A11DX85AF/AG/AZ (49ATVCRANKSHAFT09SPXP850) Diagram

KIT, CRANKSHAFT [INCL. 4, CRANK, MAIN BEARINGS]

2204233

$1,086.79

Kit, Connecting Rod [Incl. 7,8, Rod, Cap]

2203927

Unavailable

Bushing, Piston Pin

7556469

Unavailable

Kit, Piston [Incl. Piston, Pin, Clips, All Rings][Iron Lined]

2204055

Unavailable

Kit, Piston [Incl. Piston, Pin, Clips, All Rings][Iron Lined]

2204055

Unavailable

PIN-DOWEL,M6X10

5132835

$2.39

CIRCLIP, PISTON PIN

3022223

Unavailable

CIRCLIP, PISTON PIN

3022223

Unavailable

KEY-WOODRUFF,4X5

7721122

$7.84

Bolt

7519021

$27.99

BEARING, CONNECTING ROD, YELLOW

3514645-053

Unavailable

BEARING, CONNECTING ROD, RED

3514645-015

Unavailable

BEARING, CONNECTING ROD, WHITE

3514645-016

Unavailable

BEARING, CONNECTING ROD, BLUE

3514645-027

Unavailable

Kit, Piston Rings [Contains Upper, Lower, Oil Control Ring][Iron Lined]

2203922

Unavailable

PIN, PISTON

3021737

$8.79
