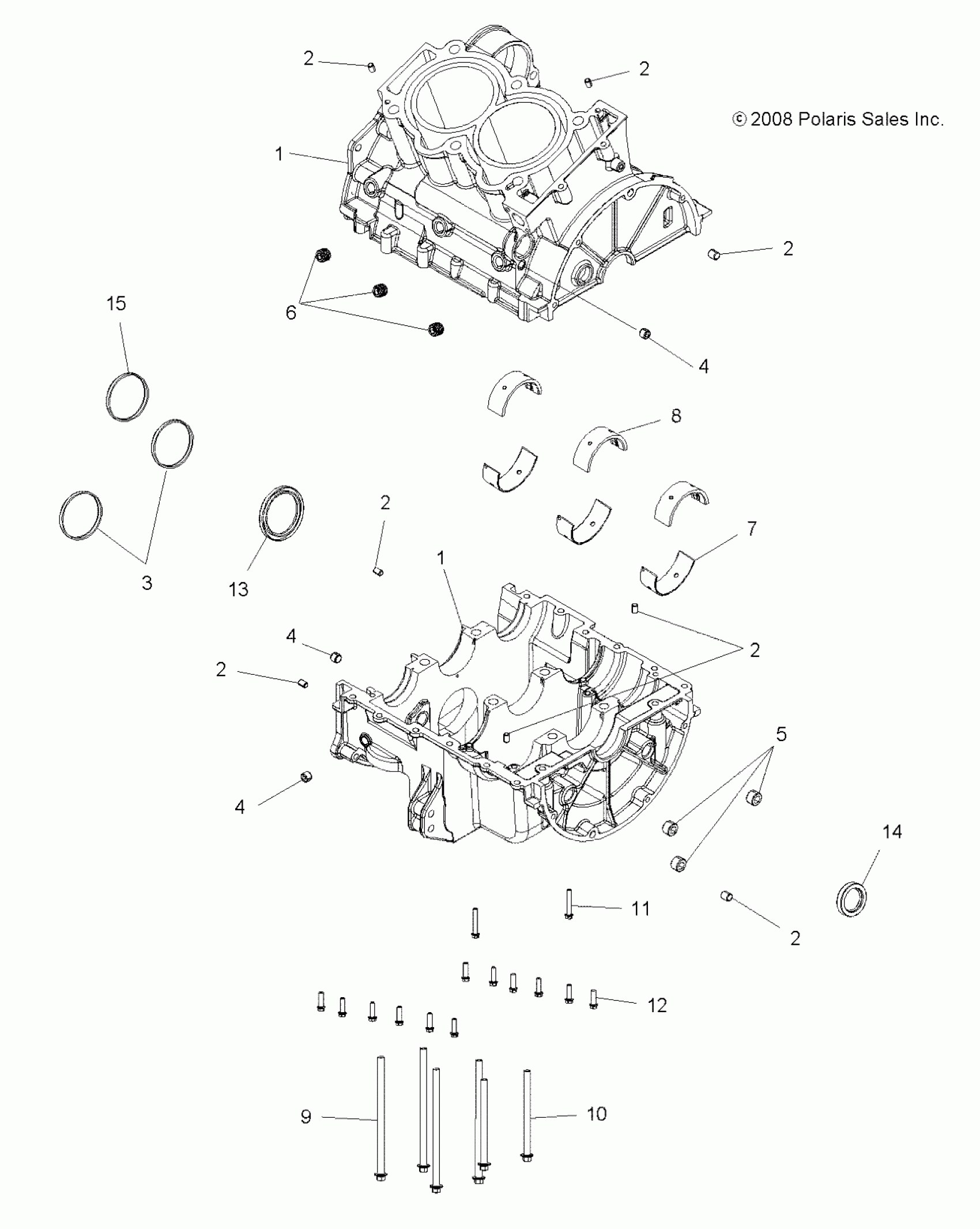

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ENGINE, CRANKCASE - A11DX85AF/AG/AZ (49ATVCRANKCASE09SPXP850) Diagram

#

Description
Price

1

Kit, Crankcase, Iron Lined [Incl. 2,4-6, 9-12, Cases][Iron Lined]

2204054

$2,099.99

1

Kit, Crankcase, Iron Lined [Incl. 2,4-6, 9-12, Cases][Iron Lined]

2204054

$2,099.99

2

PIN-DOWEL,M6X10

5136879

$2.38

2

PIN-DOWEL,M6X10

5136879

$2.38

2

PIN-DOWEL,M6X10

5136879

$2.38

2

PIN-DOWEL,M6X10

5136879

$2.38

2

PIN-DOWEL,M6X10

5136879

$2.38

2

PIN-DOWEL,M6X10

5136879

$2.38

2

PIN-DOWEL,M6X10

5136879

$2.38

3

SEAL, BALANCE SHAFT

3610144

$8.08

4

PLUG

7052337

$3.22

4

PLUG

7052337

$3.22

4

PLUG

7052337

$3.22

5

PLUG

7052413

$4.03

6

PLUG

7518835

$5.65

7

BEARING, MAIN, UPPER, FRONT

3514534

$11.90

8

BEARING, MAIN, UPPER, CENTER

3514535

$14.24

9

SCREW

7518804

$3.17

10

SCREW

7518805

$5.56

11

SCREW

7518578

$3.97

12

SCREW

7518576

$3.17

13

SEAL, CRANKSHAFT

3610152

$40.46

14

SEAL, CRANKSHAFT

3610151

$20.22

15

SEAL, BALANCE SHAFT

3610144

$8.08
