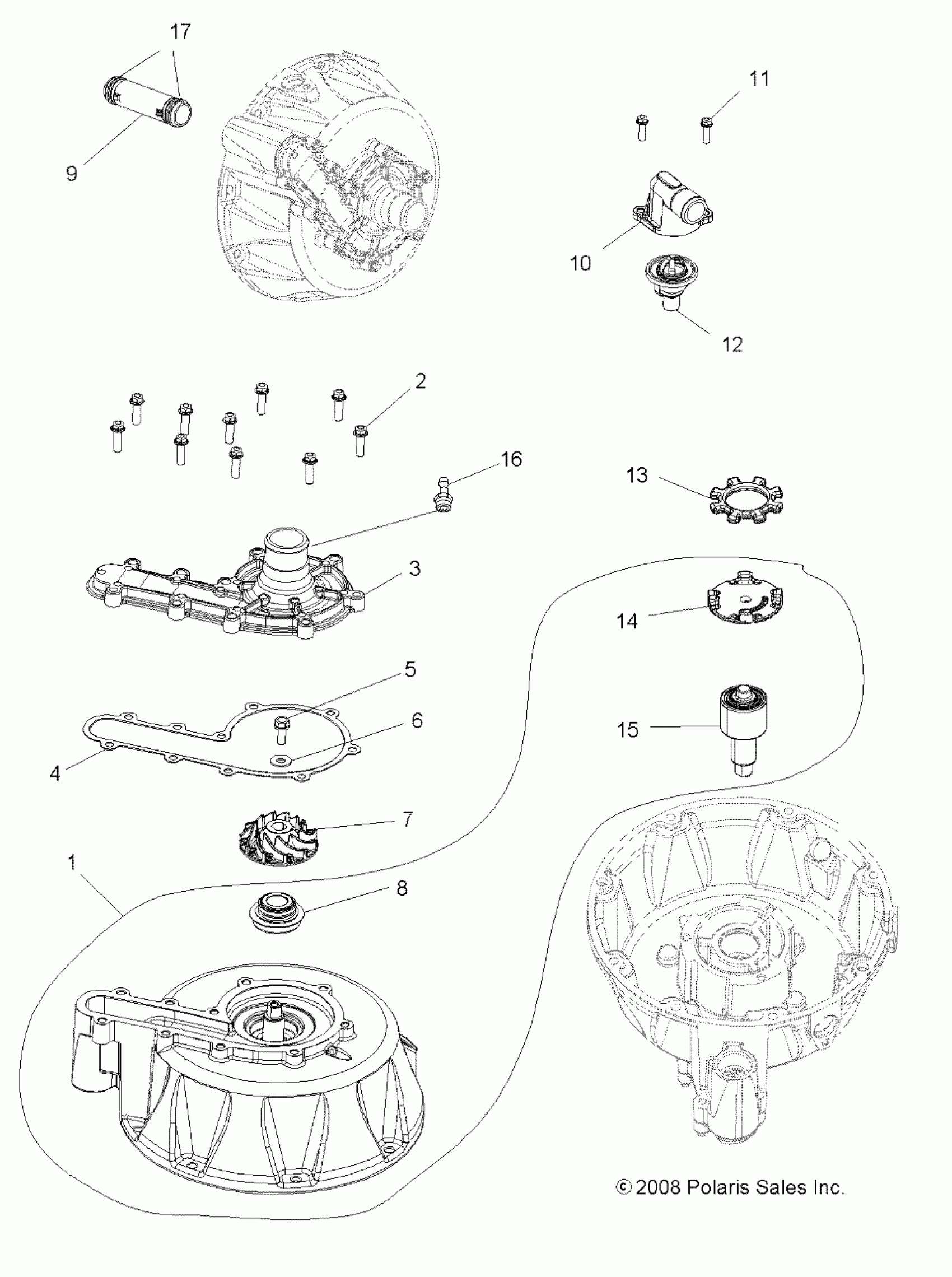

Polaris SPORTSMAN TOURING EPS 850 - A11DX85AF/AG/AZ ENGINE, COOLING SYSTEM and WATER PUMP - A11DX85AF/AG/AZ (49ATVWATERPUMP09SPXP850) Diagram

#

Description
Price

1

Kit, Cover, Stator w/Water Pump [Incl. 8,14,15]

2203939

Unavailable

1

Asm., Stator Cover w/Water Pump [Incl. 2-8,14,15, Retainer, Stator Wire, Stator Cover, Stator, Fitting]]

1204236

Unavailable

2

SCREW

7518855

Unavailable

3

Cover, Water Pump

5137326

$64.75

4

GASKET, COVER

5412954

$31.99

5

BOLT

7518854

Unavailable

6

WASHER, FLAT

7556451

Unavailable

7

IMPELLER, WATER PUMP, CAST

5632427

$43.99

8

SEAL

3610136

$71.99

9

TUBE, WATER TRANSFER [INCL. O-RINGS]

5334925

$79.99

10

Cover, Thermostat

5631954

Unavailable

11

SCREW

7518576

$3.19

12

Thermostat

7052445

Unavailable

13

Coupler, Insert

5413433

Unavailable

14

Coupler, Water Pump Bearing

5136306

Unavailable

15

BEARING W/SHAFT

3514633

Unavailable

16

FITTING

7052463

$9.59

17

O-RING

5412955

$7.19
